กล้องวิดีโอ Lumens VC-TR1 Auto-Tracking Camera

กล้องวิดีโอสำหรับงานประชุม Lumens VC-TR1, Auto tracking and smart switching, คุณภาพวิดีโอระดับ Full HD 1080p ที่ 60 เฟรม/วินาที, กำลังซุม 20 เท่า,  HDMI, 3G-SDI, IP and USB video outputs, Supports PoE+ (Power over Ethernet) Compatible with Barco ClickShare Conference

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿86,000.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Category: Tag:
Share This:

Product Description

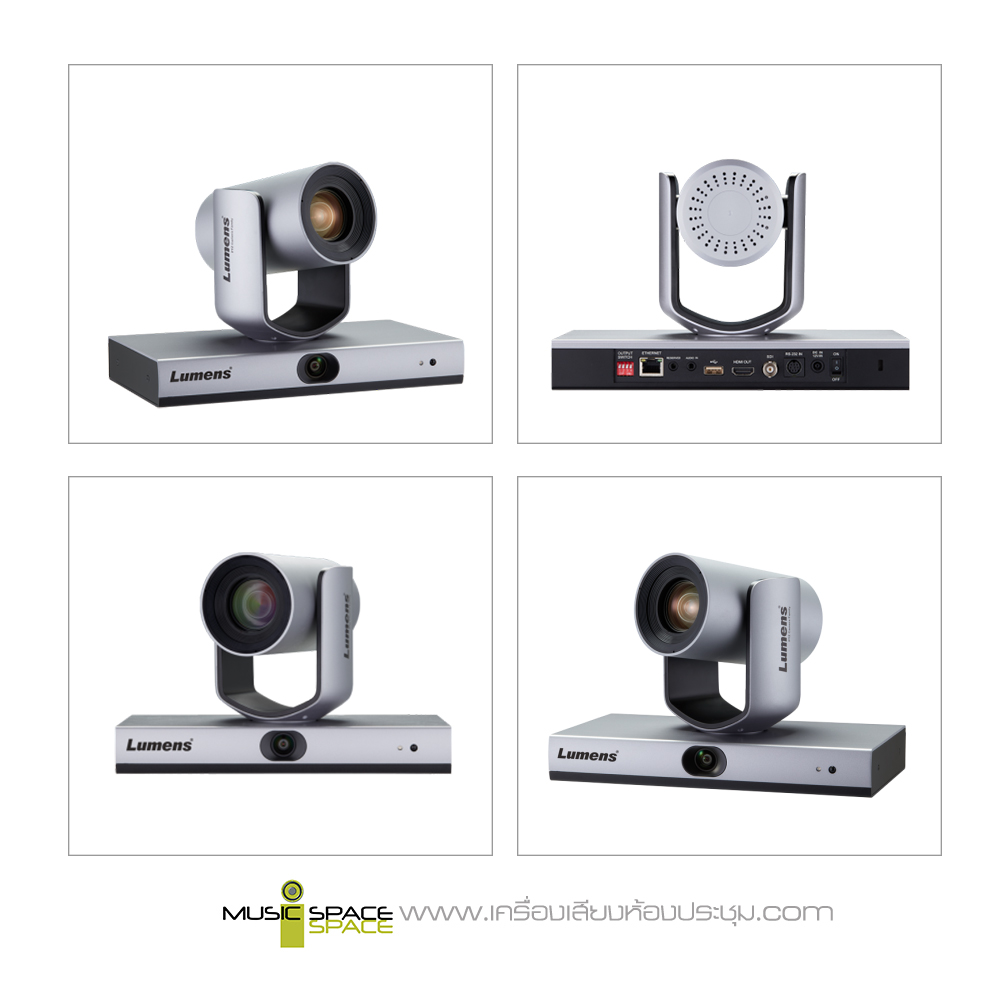

Lumens VC-TR1 Auto-Tracking Camera

กล้องวิดีโอสำหรับงานประชุม Lumens VC-TR1, Auto tracking and smart switching, คุณภาพวิดีโอระดับ Full HD 1080p ที่ 60 เฟรม/วินาที, กำลังซุม 20 เท่า,  HDMI, 3G-SDI, IP and USB video outputs, Supports PoE+ (Power over Ethernet) Compatible with Barco ClickShare Conference

Lumens VC-TR1 Auto-Tracking camera is capable of tracking a target automatically and continuously. Equipped with dual cameras – a PTZ camera and a secondary panoramic camera, the VC-TR1 guarantees consistent tracking performance.

The smart switching function allows the VC-TR1 to automatically switch the view between two cameras during tracking whether the tracked target is moving or has stopped moving. These innovative functions can help build your video production automation.

The VC-TR1 comes with a professional FHD image sensor and 20x optical zoom providing a vivid Full HD 1080p output resolution. It supports PoE and IP streaming simplifying an A/V integration. It is applicable for lecture capture, corporate training, house of worship, and any stage setting environments.

Features:

  • Auto tracking and smart switching
  • Full HD 1080p 60fps with 20x optical zoom
  • HDMI, 3G-SDI, IP and USB video outputs
  • Supports PoE+ (Power over Ethernet)
  • Supports RTSP / RTMP / RTMPS and HEVC / H.264 / MJPEG video compression
  • Compatible with Barco ClickShare Conference
Category: Tag:

Specifications

Sensor PTZ Camera: 1/2.8” 2.13MP CMOS
Panoramic Camera: 1/2.5” 8.57MP CMOS
Video Format Resolution: 1080p / 720p
Frame Rate : 60 / 50 / 30 / 25

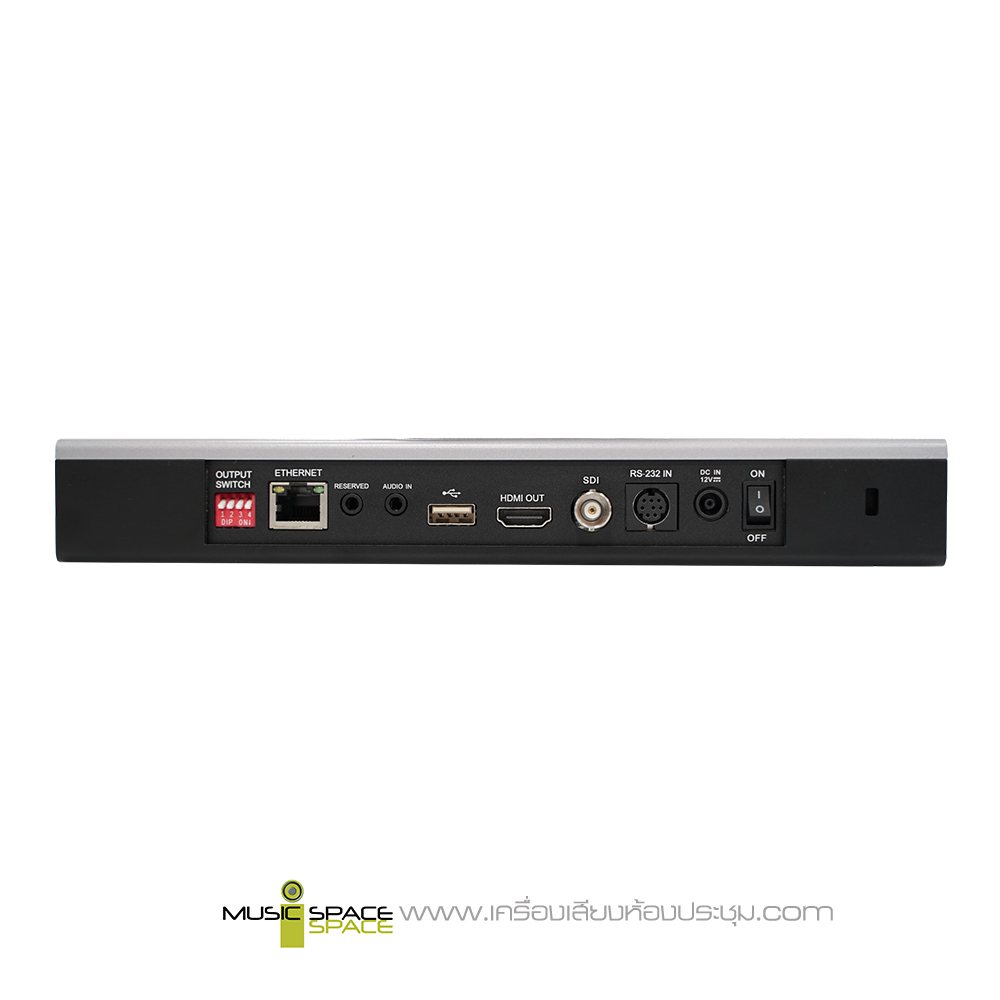

Video Output (HD)|Interface HDMI / SDI / USB2.0 / Ethernet
Optical Zoom 20x
Digital Zoom 12x
Viewing Angle PTZ Camera: 71° Panoramic Camera: 112°
Panning Angle +90 ~ -90°
Panning Speed 100°/sec
Tilting Angle +90 ~ -30°
Tilting Speed 80°/sec
Auto-Tracking Yes
Auto-Switching Yes
Aperture F1.6 ~ F3.5
Focal Length 4.9mm ~ 94mm
Shutter Speed 1/60 ~ 1/10,000
Minimum Object Dis tance 500mm
Video S/N Ratio > 40dB
Minimum Illumination 1.0Lux @ (F1.6, AGC ON)
Focus Sys tem Auto / Manual
Gain Control Auto / Manual
White Balance Auto / Manual
Exposure Control Auto / Manual
WDR Yes
2D NR Yes
3D NR Yes
Preset Positions 256
Multiple Video Stream 1 x PTZ Camera Main Stream
1 x Panoramic Camera Main Stream
1 x PTZ Camera Sub Stream
Audio Compression Format AAC
Control Interface RS-232 / Ethernet
Control Protocol VISCA / VISCA over IP
PoE PoE+ (IEEE802.3at)
Video Stream RTSP / RTMP / RTMPS
Video Compression HEVC / H.264 / MJPEG
Audio Input Line In / MIC In (Phone Jack 3.5mm x1)
Audio Output Ethernet / USB
IR Receiver Yes
IR Remote Control Yes
DC In 12V
Power Consumption Max 21W
Weight 3.1lbs (1.4 kg)
Dimensions 9.6” x 5.7” x 6.5” (245 ×145 ×165 mm)

Downloads

ดาวน์โหลด Data Sheet Lumens VC-TR1

ดาวน์โหลด Brochure Lumens VC-TR1
