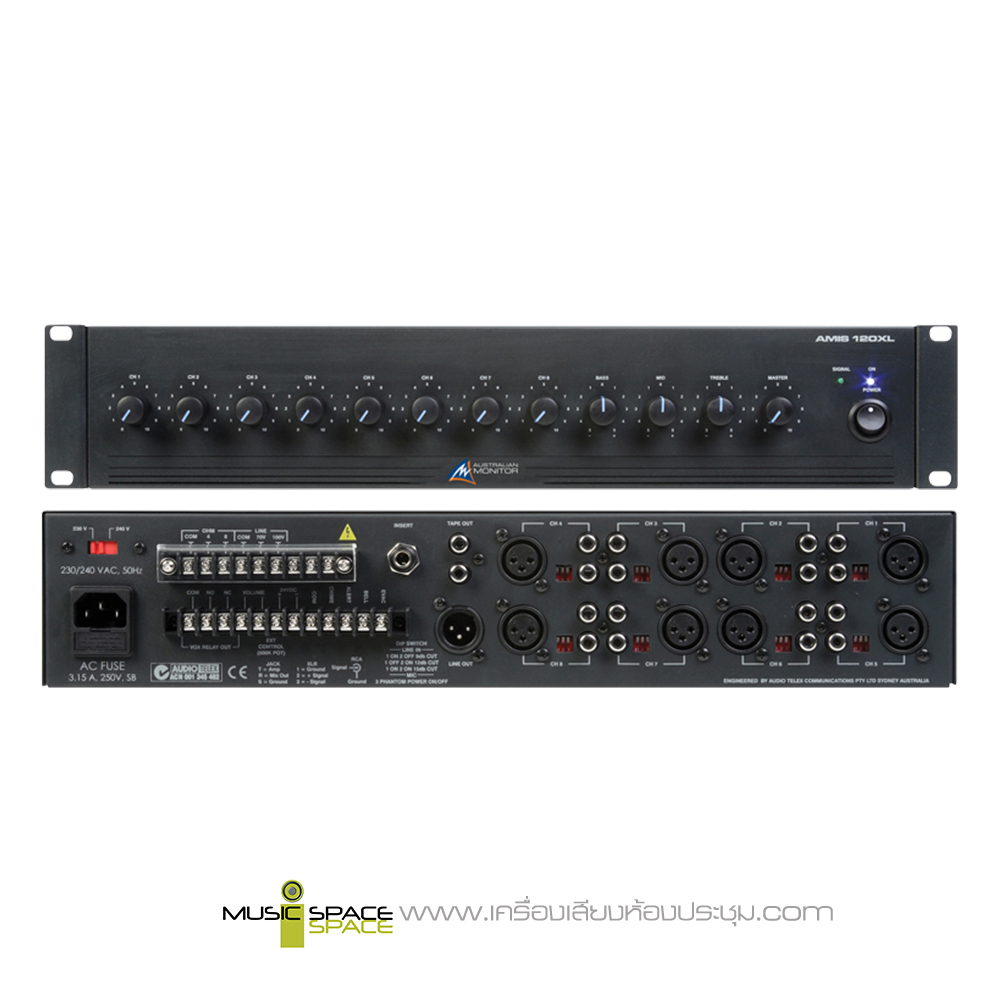

Australian Monitor AMIS120 XL 120 watts Mixer Amplifier
เครื่องผสมสัญญาณเสียงมีกำลังขยายในตัว AUSMON 120XL, Mixer Amplifier, 120W, 8 x dual balanced mic/line inputs. 100V, 70V & 4Ω & 8Ω outputs. 240VAC & 24VDC. 2RU
The AMIS120XL offers all the reliability of the famous AMIS series amplifiers with 8 universal inputs as well as 3 stage (defeat able) Vox priority, Vox triggered output relay, on board tone generator, 3 stage line input sensitivity switching and a wide range of additional features. The AMIS120XL really is the mixer amp with the lot.
Features:
- 100V, 70V and 4, 8 ohm outputs
- Vox muting from channels 1, 2 and 3 (selectable)
- Vox triggered relay output
- Tape Output (350mV @ 10K ohms) and balance output (700mv)
- Bell, Pre Announce, Evac and Alert tones in-built (rear panel activation)
- 15V phantom power on all microphone inputs (defeat able per channel by rear switch)
- Insert point for connection of AMIS EQ or other processors
- VCA remote master level control
- Overdrive protection and internal limiting
- Signal Present LED
- 240VAC/24VDC operation
- 100 volt, 70 volt 4 or 8 ohm operation
