SYMETRIX SOLUS16 Digital Signal Processor DSP 16in/8out

อุปกรณ์ปรับแต่งสัญญาณเสียง SYMETRIX SOLUS 16, 16 Input & 8 Outputs DSP & Audio Routing Ideal for Sound Reinforcement & Paging Powerful Compression & EQ DSP

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿90,000.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Category: Tag:
Share This:

Product Description

อุปกรณ์ปรับแต่งสัญญาณเสียง SYMETRIX SOLUS 16 Digital Signal Processor DSP 16in/8out

อุปกรณ์ปรับแต่งสัญญาณเสียง SYMETRIX SOLUS 16, 16 Input & 8 Outputs DSP & Audio Routing Ideal for Sound Reinforcement & Paging Powerful Compression & EQ DSP

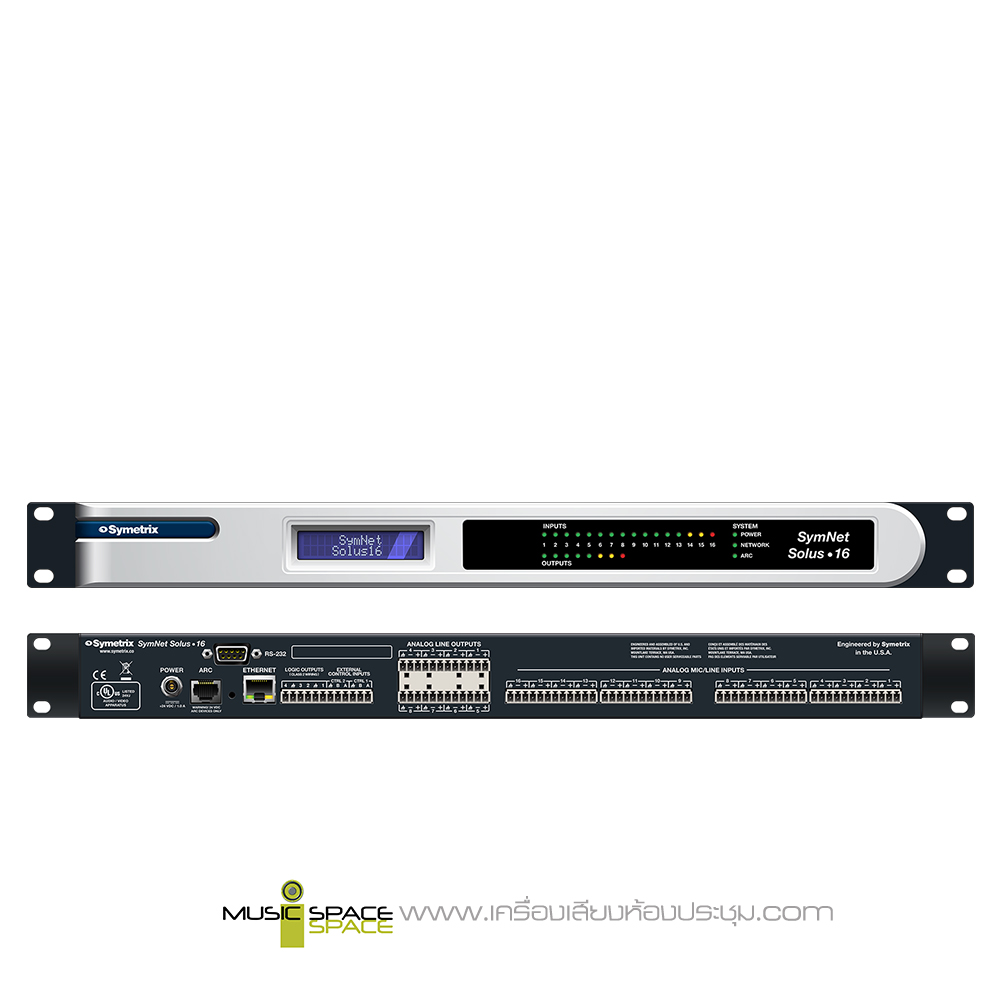

The Symetrix Solus 16 SymNet DSP Hardware is essentially a core audio routing, control logic and DSP processing matrix for fixed installation in commercial sound reinforcement applications, paging systems, background audio systems, professional sound reinforcement and more. The solus 16 features 16 mic/line inputs with phantom power and 8 outputs.

Its open architecture along with SymNet Designer software (free download) enable engineers to easily configure audio routing, control logic and DSP configurations for virtually any sound reinforcement scenario.

The Solus 16 features high-end audio compression and 3-band EQ to rival that of top competitors. Additional features include Ethernet, ARC port, RS-232 port, two external control inputs, and four logic outputs, comprehensive LCD display and rack mountable chassis.

Features:

  • The most powerful SymNet DSP hardware yet. Ideal for small to mid-size installations not requiring I/O expansion
  • Configured using open architecture SymNet Designer 10 to customize signal path and DSP modules
  • The most cost-effective SymNet solution to date
  • 16 mic/line inputs and 8 outputs on Solus 16
  • Ethernet, ARC port, RS-232 port, two control inputs, and four logic outputs
Category: Tag:

Specifications

Inputs Number of inputs: 16 switchable balanced mic or line level on Solus 16.
Connectors: 3.81mm terminal blocks
Nominal input level: +4dBu line or -36dBu mic level (software selectable) with 20dB of headroom.
Mic Pre-amp gain: +40dB
Input trim: +/- 24dB
Maximum input level: +23dBu
Input impedance: > 18 kΩ balanced, > 9 kΩ unbalanced, > 2 kΩ with phantom power engaged.
CMRR: > 50dB @ 1kHz, unity gain. Mic Pre-amp
EIN: < -125dBu, 22Hz – 22kHz, 100 Ω source impedance. Phantom Power: +20VDC, 20mA maximum per input.
Outputs Number of outputs: 8 line level on Solus 16
Connectors: 3.81mm terminal blocks
Nominal output level: +4dBu line level with 20dB of headroom. For unbalanced analog output, do not connect the minus output terminal. Unbalanced configuration results in 6 dB lower output level.
Maximum output level: +24dBu
Output impedance: 200 Ω balanced, 100 Ω unbalanced
Sample Rate 48kHz
Frequency Response 20Hz – 20kHz, +/- 0.5dB
Dynamic Range > 110dB (A-Weighted), input to output.
THD < -85dB (un-weighted); 1kHz @ +22 dBu with 0dB gain
Crosstalk < -90 dB @ 1 kHz, typical
Latency < 1.6ms, input routed to output
Power 100-240 VAC, 50/60 Hz, 25 Watts maximum. Universal input.
Ventilation Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08cm, 2″ minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
Dimensions (WxDxH) 18.91 x 7.5 x 1.72″ (48.02 x 19.05 x 4.37cm)
1 Rack Unit
Weight 11.5 lb (5.22kg)
