Product Description

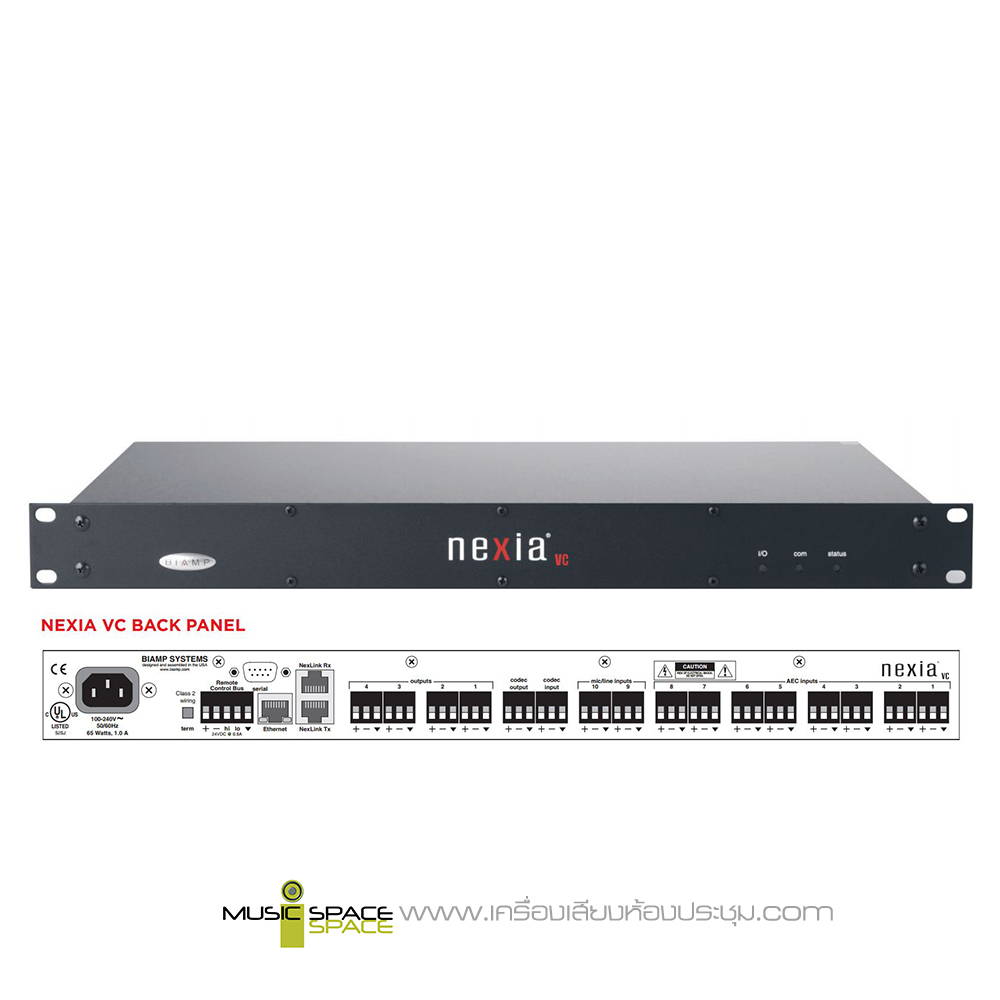

เครื่องปรับแต่งสัญญาณเสียง BIAMP Nexia VC Digital Signal Processor
Nexia VC is a digital signal processor featuring Biamp Sona™ AEC — our proprietary wideband acoustic echo cancellation technology. Designed specifically to provide crisp, clear audio in videoconferencing applications, Nexia VC delivers true 20Hz to 20kHz bandwidth during multiple participant conversations, with natural, true-to-life sound and full duplex transmission of speech, including doubletalk. Sona™ AEC also delivers increased tolerance to differing signal levels, plus faster installation and setup.
Intended for a variety of videoconferencing applications, Nexia VC includes a broad selection of audio components, routing options and signal processing. The internal system design is completely user definable via PC software, and can be controlled via dedicated software screens, RS-232 control systems, and/or a variety of optional remote control devices. Multi-unit Nexia systems can be created utilizing Ethernet and NexLink digital audio linking.
คุณลักษณะเด่น:
- 8 balanced wideband AEC mic/line inputs with the Biamp Sona AEC technology
- 2 standard balanced mic/line inputs
- 4 balanced mic/line outputs
- Codec interface, line input and output
- Ethernet and serial ports for configuration and control
Features:
- 8 wide-band AEC balanced mic/line inputs
- 2 standard balanced mic/line inputs
- 4 balanced mic/line outputs
- codec interface with balanced line input & output
- Ethernet port for software configuration/control
- serial port for third-party RS-232 remote control
- remote control bus for dedicated control panels

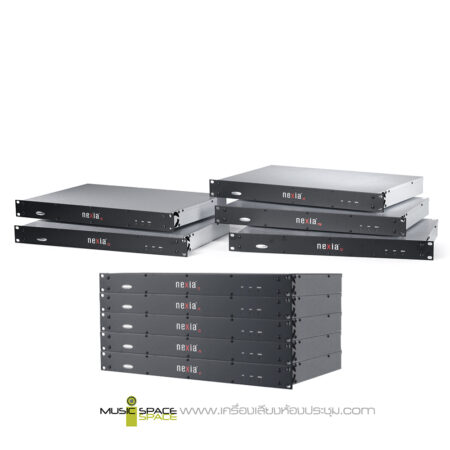

- NexLink ports for multi-unit system designs
- NEXIA software for Windows® 2000/XP Professional
- pre-configured I/O with definable processing
- RoHS compliance and AES grounding practices
- CE marked and UL listed
- covered by Biamp Systems’ five-year warranty
- Ability to select, view, and calibrate:
- Mixers: standard, automatic, matrix, combiners
- Equalizers: graphic, parametric, feedback
- Filters: HPF, LPF, high shelf, low shelf, all-pass
- Crossovers: 2-Way, 3-Way and 4-way
- Dynamics: leveler, comp/limiter, ducker, ANC
- Routers: 2×1 ~ 32×32
- Delays: 0 ~ 2000 ms
- Controls: levels, presets, logic, RS-232, etc.
- Meters: signal present, peak, RMS
- Generators: tone, pink-noise, white-noise
- Diagnostics: transfer function
