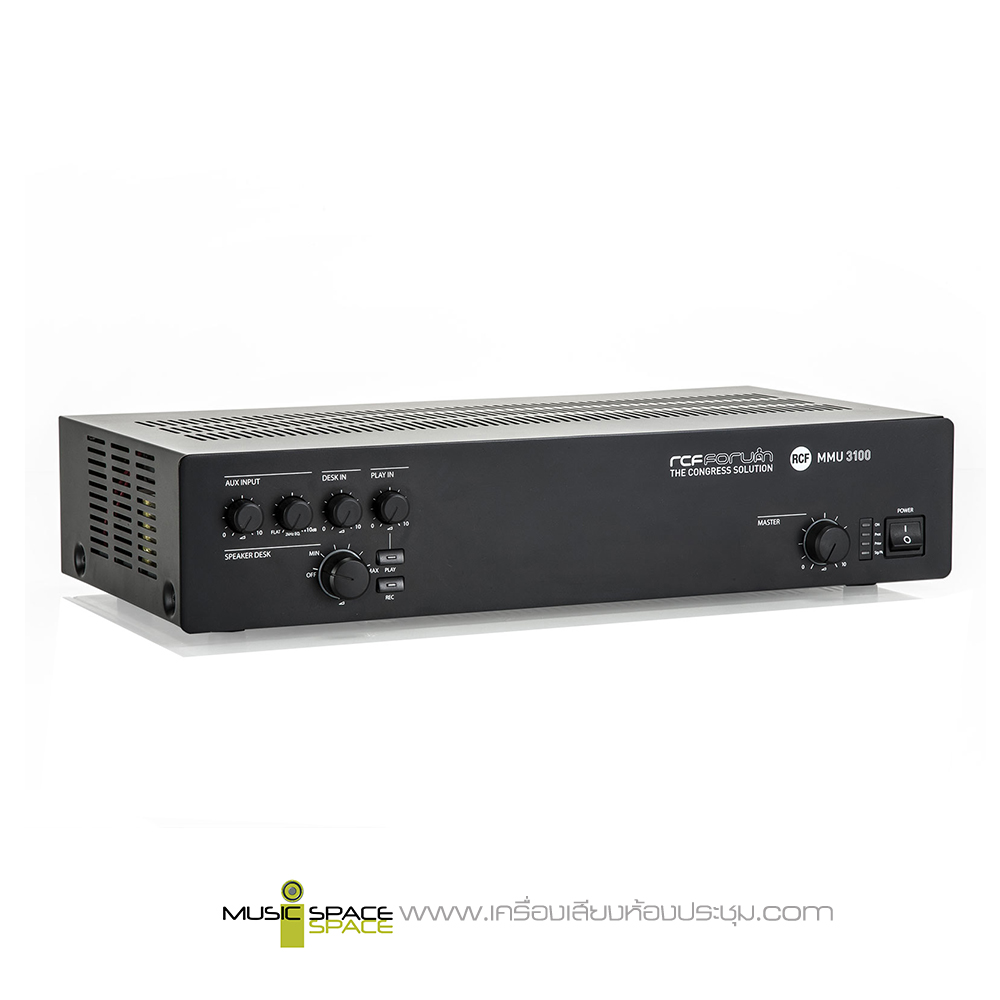

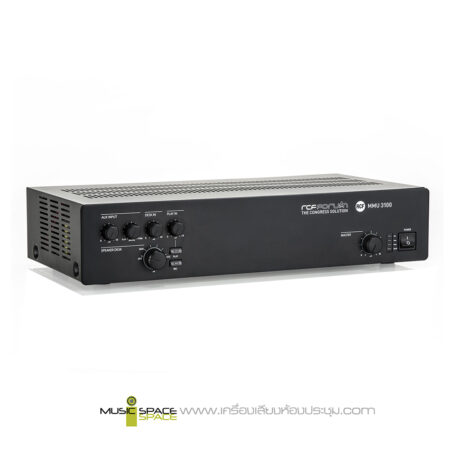

RCF MMU3100 Master Unit

Product Description

เครื่องจ่ายกระแสไฟฟ้าและควบคุมการสนทนาชุดไมค์ประชุม RCF MMU 3100

RCF MMU 3100 เป็นเครื่องควบคุมและจ่ายกำลังไฟในระบบ สำหรับชุดไมค์ผู้ร่วมประชุมและไมค์ชุดประธาน รองรับการต่อใช้งานไมโครโฟนชุดประชุมได้ไม่น้อยกว่า 80 เครื่อง และสามารถต่อใช้งานไมโครโฟนชุดประชุมเพิ่มเป็น 160 เครื่อง โดยการเพิ่มเครื่องควบคุม มีภาคขยายสัญญาณเสียงภายในตัวเครื่องควบคุม ขนาดกำลังขับ 80 วัตต์

The RCF MMU 3100 master unit includes all the features necessary to set-up a meeting for up to 80 microphone sets.  Recording output and playback input are present as well, together with a dedicated input and output for teleconference system interfacing.

The unit is able to provide 80W on its 100V or 70V output for the connection of additional sound reinforcement speakers present in the room. One line level output is available too, for the link to an independent sound reinforcement system.

User controls are on front panel and include volume levels for inputs and powered outputs, directed to the reinforcement speakers integrated in each microphone console and to the ones connected to the amplifier direct output.

Two devices MMU 3100 can be linked through a dedicated port, to expand the number of the delegate microphones to 160.

คุณลักษณะเด่น:

• Input to connect up to 80 microphone sets with volume and voice EQ controls
• Additional universal input on both XLR and removable screw terminals for lectern microphone or interview microphone or other sources with volume and voice EQ controls
• Phantom power available
• Input and outputs connections to an external recorder/player device, PLAY / REC selector switches with LED indicators. Volume control and tone EQ on PLAY-OUT
• Teleconference dedicated input and output
• Sound reinforcement and recording system output
• Built-in power amplifier to feed the consoles speakers with volume selector
• Built-in 80W power amplifier output with volume control for additional constant voltage sound reinforcement speakers

Specifications

• max. Output power (rms):80 w (desktop microphones), 80 w (70 / 100 v loudspeaker output)
• constant voltage loudspeaker output:70 v (62.5 ω) / 100 v (125 ω)
• frequency response:50 hz ÷ 18 khz
• t.h.d. (@ 1 khz, nominal power):< 1 %

Desk input

• sensitivity:–44 dbu (max. -24 dbu)
• impedance:1 kω
• signal / noise ratio:> 70 db
• tone control:0 ÷ +5 db @ 2 khz

Aux input, balanced

• sensitivity (line):–7 dbu (max. +13 dbu)
• sensitivity (mic):–44 dbu (max. –24 dbu)
• impedance:10 kω
• signal / noise ratio (line):> 80 db
• signal / noise ratio (mic):> 60 db
• tone control:0 ÷ +10 db @ 2 khz
• ‘phantom’ power:32 v (20 ma)

System audio in, unbalanced

• sensitivity:–5 dbu (max. +15 dbu)
• impedance:20 kω
• signal / noise ratio:> 80 db

Play in, unbalanced

• sensitivity:–7 dbu (max. +13 dbu)
• impedance:20 kω
• signal / noise ratio:> 80 db
• bass control:±8 db @ 80 hz
• treble control:±13 db @ 10 khz

Pre in, unbalanced

• sensitivity:0 dbu (max. +22 dbu)
• impedance:20 kω
• signal / noise ratio:> 80 db

Teleconf. In, unbalanced

• sensitivity:–7 dbu (max. +15 dbu)
• impedance:10 kω
• signal / noise ratio:> 80 db

Mixer out, unbalanced

• max. Output level:+21 dbu
• impedance:100 ω
• signal / noise ratio:> 100 db
• inputs:desk input, aux input, play in, teleconf in., system audio in

Rec out, unbalanced

• max. Output level:+21 dbu
• level control:0 ÷ +10 db
• impedance:100 ω
• signal / noise ratio:> 100 db
• inputs:desk input, aux input, play in, teleconf in., system audio in

Teleconf. Out, unbalanced

• max. Output level:+21 dbu
• impedance:100 ω
• signal / noise ratio:> 100 db
• inputs:desk input, aux input, play in, system audio in

Protections

• amplifier:short circuit, thermal
• load:dc offset delay, fuse
• power supply:fuse

Generic

• operating voltage:115-230v / 50-60 hz
• max. Power consumption:240 w
• dimensions (w, h, d):442 mm, 88 mm, 230 mm (19″ rack – 2 units)
• net weight:4 kg

Downloads

ดาวน์โหลด Data Sheet RCF MMU 3100
