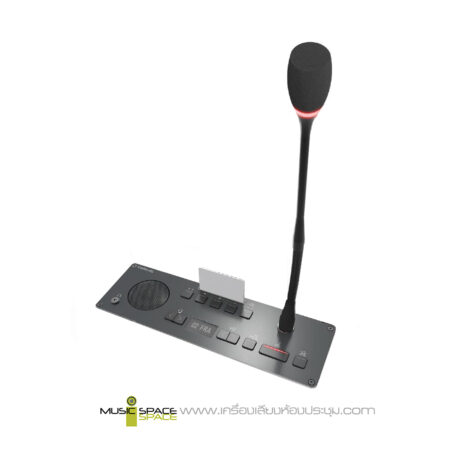

TELEVIC Confidea F-CIV Chairman Interpretation & Voting Panel

ฐานไมโครโฟนชุดประชุมแบบฝังโต๊ะสำหรับประธาน TELEVIC Confidea F-DIV พร้อมลำโพงชุดแปลภาษาเครื่องลงคะแนนเสียง, Priority and ‘next’ button, Five voting buttons with LED indicators, Language channel selector, RFID card reader, RJ 45 connectors

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

฿41,700.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Share This:

Product Description

TELEVIC Confidea F-CIV Chairman Interpretation & Voting Panel

ฐานไมโครโฟนชุดประชุมแบบฝังโต๊ะสำหรับประธาน TELEVIC Confidea F-DIV พร้อมลำโพงชุดแปลภาษาเครื่องลงคะแนนเสียง, Priority and ‘next’ button, Five voting buttons with LED indicators, Language channel selector, RFID card reader, RJ 45 connectors

The Confidea F-CIV is a full option chairman panel for discussion systems with electronic voting and simultaneous interpretation. Its small form factor allows a minimalistic integration into the meeting room furniture.

The integrated speaker creates a distributed sound field in the meeting room, increasing intelligibility without the need for an additional room sound system. The panel has a screw-lock connector to fit a Confidea microphone

For the hearing impaired a 3,5 mm jack socket is provided to connect headphones or a hearing loop. The voting systems includes 5 voting buttons and an RFID card reader for identification and authentication.

For simultaneous interpretation, the panel has a channel selector and headphones volume adjustment. The information display shows the ISO code of the selected language and volume setting. Compared to the delegate version, this chairman panel has an additional “next-in-line” and “priority” button.

Features:

  • For discussion, electronic voting and simultaneous interpretation
  • Microphone button
  • Integrated loudspeaker
  • Headphones connector
  • Headphones volume adjustment
  • Five voting buttons with LED indicators
  • RFID card reader
  • Language channel selector
  • Channel information display
  • Priority and ‘next’ button
  • Screw-lock socket for removable microphone Round corners
  • Two RJ 45 connectors for loop through cabling
  • 3,5 mm jack socket for headphones
  • Compatible with Plixus Engines

Specifications

Mechanical

Material Steel Color Tiger coating Carbon 01
Size (mm) 250 (w) × 80 (h) × 70 (d) Size packed (mm) 285 (w) × 120 (h) × 85 (d)
Weight 880g Weight packed 1000g

Electrical

Voltage 48 VDC Current consumption 4.5 W
Card reader ISO 14443 MIFARE Card Reader DESfire EV1 support

Speaker Output

Maximum output power > 1 W Frequency response 200-20,000 Hz
Dynamic range > 90 dB THD @ nominal level < 0.1%
Load impedance 8 Ω

Headphone Output

Maximum output > 10 mW Frequency response 22-22,000 Hz
Dynamic range > 90 dB THD @ nominal level < 0.1%
Load impedance 16-32 Ω

Microphone Input

Dynamic range > 90 dB Frequency response 20-20,000 Hz
THD @ nominal level 0.1%

Display

Display Type OLED Resolution 128 × 64
Character Height 5 mm

Downloads

ดาวน์โหลด Data Sheet TELEVIC Confidea F-CIV

ดาวน์โหลด Brochure TELEVIC Confidea F
