AUSTRALIAN-MONITOR AMIS250 Mixer Amplifier

เครื่องผสมสัญญาณเสียงมีกำลังขยายในตัว AUSMON 250XL, Mixer Amplifier, 250W, 6 x dual balanced mic/line inputs. 100V, 70V & 4Ω & 8Ω outputs. 240VAC & 24VDC. 2RU

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

฿27,600.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Share This:

Product Description

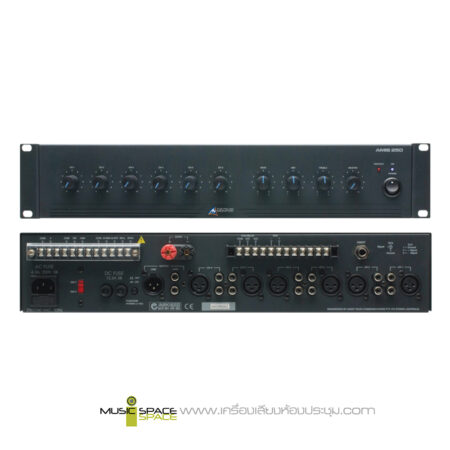

Australian Monitor AMIS250 250 watts Mixer Amplifier

เครื่องผสมสัญญาณเสียงมีกำลังขยายในตัว AUSMON 250XL, Mixer Amplifier, 250W, 6 x dual balanced mic/line inputs. 100V, 70V & 4Ω & 8Ω outputs. 240VAC & 24VDC. 2RU

The AMIS250 is the largest amplifier in the AMIS mixer amplifier series and delivers 250 watts in a compact 2 RU chassis. With 3 stage vox priority, Vox triggered relay, on board tones, 15 VDC phantom power and insert point the AMIS250 is feature packed and as with all the AMIS series it is extremely reliable.

Features:

  • 100V, 70V and 4, 8 ohm outputs
  • Vox muting from channels 1, 2 and 3 (selectable)
  • Vox triggered relay output
  • Tape Output (350mV @ 10K ohms) and balance output (700mv)
  • Bell, Pre Announce, Evac and Alert tones in-built (rear panel activation)
  • 15V phantom power on all mic inputs (defeatable per channel by rear switch)
  • Insert point for connection of AMIS EQ or other processors
  • Overdrive protection and internal limiting
  • Signal Present LED
  • 240VAC/24VDC operation

Specifications

AUSMON AMIS250

Output Power 250 watt
Damping Factor Not Specified by Manufacturer
Input Sensitivity Mic: 1mV @ 200 ohms

Aux: 150mV @ 47 k ohms

Input Impedance Mic: 200 ohms

Aux: 47 k ohms

Maximum Load 20 ohms @ 70V
Frequency Response 60Hz – 23kHz
Signal-to-Noise Ratio -74dB
Total Harmonic Distortion (THD) 0.5%
Input Connections 6 x Mic/Aux Universal Inputs with XLR Female and Dual RCA Jacks

1 x 600 ohm Transformer Balanced Telephone Paging Input

Output Connectors 70V, 8 ohm Speaker

350mV Tape

Balanced 700mV Line

Controls Front Panel 6 x Channel Gain Controls

1 x Bass Control

1 x Mid Control

1 x Treble Control

1 x Master Gain Control

Controls (Rear) Phantom Power Switch
Indicators Front-Panel LED
Cooling Not Specified by Manufacturer
Power Consumption 400W
Dimensions (HxWxD) 3.5 x 19 x 13″ (89 x 483 x 330 mm)
Weight 33.1 lbs (15 kg)
Specialties Built-In 4 Tone Generator, VOX Muting

Downloads

ดาวน์โหลด Manual Australian Monitor AMIS250

ดาวน์โหลด Brochure Australian Monitor AMIS250
