Product Description

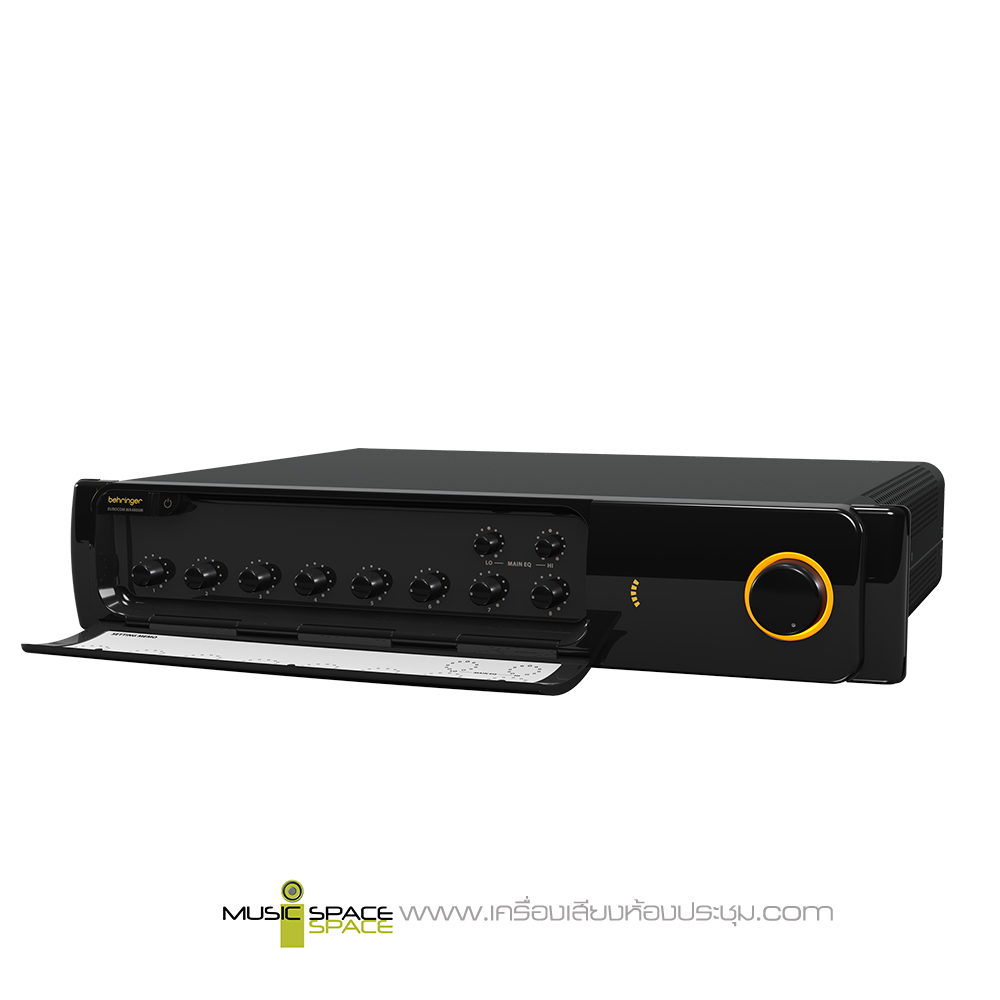

Behringer Eurocom MA4000M Mixer
เครื่องผสมสัญญานเสียง Energy-Efficient, 9-Input Mixer Featuring, Multiple Input Connectivity and Diverse Signal, Recording output and Zone 2/MOH assignable output with independent gain control
The Behringer Eurocom MA4000M 9-Input Distributed Music Mixer is designed for continuous use in distributed music, paging, or AV applications in restaurants, bars, stores, sports clubs or houses of worship. It features a variety of switchable mic/line inputs with phantom power including four combo XLR/TRS, dual four-pin Euroblock connectors, and dual three-pin Euroblock connectors.
It also has a dedicated telephone/page four-pin Euroblock connector and four internally summed stereo RCA auxiliary inputs that allow you to connect outside sources such as CD/MP3 players or cable boxes. The auxiliary inputs can be individually assigned to the main output via the unit’s rear-panel DIP switches.

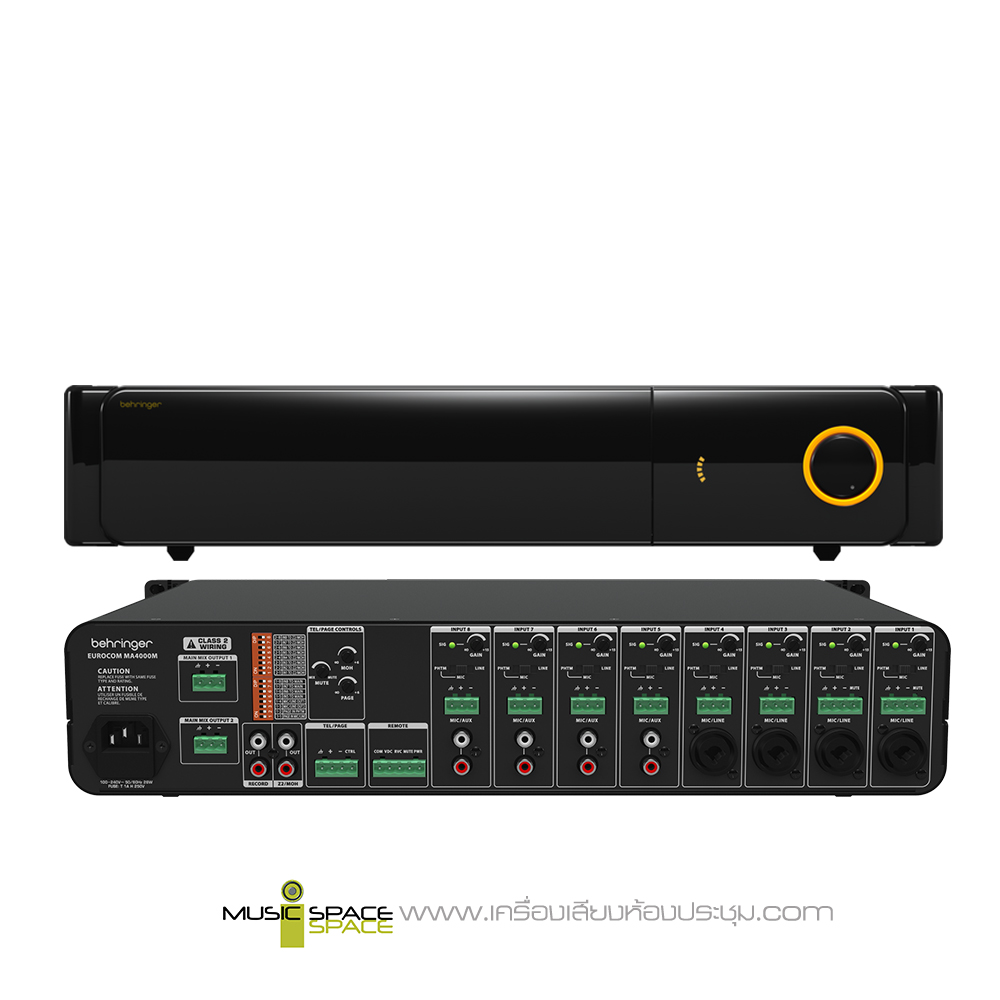

The MA4000M provides a variety of outputs, including dual three-pin male Euroblock Main Mix connectors that are mic/line switchable. A stereo RCA Zone 2 (Z2) or Music on Hold (MOH) output allows you to route your audio to a second location, your telephone system, or a supplemental sound reinforcement system. Each input can be independently assigned to the Z2/MOH output via rear-panel DIP switches. The MA4000M also includes pre-master main mix stereo RCA recording outputs.
Features:
- Multi-function mixer designed for continuous operation in distributed music, paging and AV applications
- State-of-the-art, energy-saving Switch-Mode Power technology drastically reduces energy cost
- 8 Mic/Line inputs on Euroblock, XLR/TRS and RCA connectors, each with switchable Mic/Line and Phantom Power, individual Trim control and post-trim input level LED
- Inputs 1-8 individually assignable to Zone 2/MOH output; Aux inputs 5-8 individually assignable to Main Mix
- Dedicated page input accepts telephone or paging microphone and features priority muting across all inputs
- Wired Remote volume, power and mute control connector
- Individual front panel input Level plus Lo and Hi Main EQ controls
- Auto-dimming control illumination, dual channel VU meter, Power switch, and dual-function indicator ring surrounding Master volume control
- Main Mix 1 & 2 outputs on balanced Euroblock connectors
- Recording output and Zone 2/MOH assignable output with independent gain control
- Detachable rack ears, screw covers, blank knob caps for control lock-out, IEC-type AC power cord and all mating Euroblock connectors included
- Independent DC and thermal overload protection plus automatic limiters for each amplifier prevent overload, clipping and distortion without shutting down audio
- Ultra-light, ultra-low noise and ultra-efficient switch-mode power supply for noise-free audio, superior transient response and low power consumption
- High-quality components and exceptionally rugged construction ensure long life
- Conceived and designed by BEHRINGER Germany
