Product Description

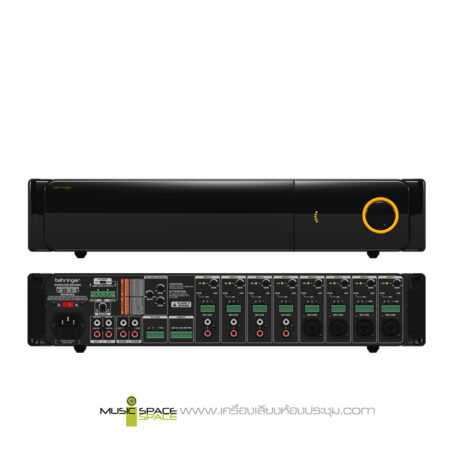

Behringer Eurocom MA4008 Mixer Amplifier 80 วัตต์
เครื่องผสมสัญญานเสียงแบบมีกำลังขยาย 80 วัตต์, Energy-Efficient, Multi-Function 80-Watt Mixing Amplifier with Dual 70/100 V and 4 Ohms Outputs
The Behringer Eurocom MA4008 Installed Sound Multi-Function Mixing-Amplifier allows you to distribute audio and page listeners within two speaker zones. The unit consists of two Class-D mono amplifiers, one for high-performance low-impedance speakers and the other for 70- or 100-volt speakers.
It features eight channels of mic/line inputs on Euroblock connectors with switchable phantom power, individual trim pots, and post-trim LED level indicators. In parallel, the device also includes four switchable microphone XLR/line TRS combination jacks with phantom power switches, and four dual summed to mono RCA jacks for sources such as MP3 players and TV tuners.
In addition to the two main outputs, the mixer-amplifier also includes a pre-master main mix output for recording and a line-level send and receive loop for external effect processing. The unit is capable of up to 80 watts of output. The front panel features level controls for each input, as well as high and low equalization settings for adjusting the main mix output. The mixer-amplifier is designed for installed sound applications that require continuous operation, distributed music, and paging such as education, business, retail, fitness, and hospitality.
Features:
- Multi-function 80-Watt mixing amplifier with dual 70/100 V and 4 Ω outputs, designed for continuous operation in distributed music, paging and AV applications
- State-of-the-art, energy-saving Switch-Mode Power technology with up to 68% power efficiency drastically reduces energy cost
- 2 transformerless, cool-running Class-D amplifiers simultaneously drive 70/100 V and 8 Ω loads with adjustable Balance control
- 8 Mic/Line inputs on Euroblock, XLR/TRS and RCA connectors, each with switchable Mic/Line and Phantom Power, individual Trim control and post-trim input level LED
- Inputs 1-8 individually assignable to Zone 2/MOH output; Aux inputs 5-8 individually assignable to Main Mix
- Dedicated page input accepts telephone or paging microphone and features priority muting across all input
- Wired Remote volume, power and mute control connector
- Individual front panel input Level plus Lo and Hi Main EQ controls
- Auto-dimming control illumination, dual channel VU meter, Power switch, and dual-function indicator ring surrounding Master volume control
- Main mix output on Euroblock connector with selectable 70/100 V and 4 Ω outputs
- Recording output and Zone 2/MOH assignable output with independent gain control
- 2 Preamp Out/Amp In processing loops for each 70/100 V and 4 Ω output
- Detachable rack ears, screw covers, blank knob caps for control lock-out, IEC-type AC power cord and all mating Euroblock connectors included
- Independent DC and thermal overload protection plus automatic limiters for each amplifier prevent overload, clipping and distortion without shutting down audio
- Ultra-light, ultra-low noise and ultra-efficient switch-mode power supply for noise-free audio, superior transient response and low power consumption
- High-quality components and exceptionally rugged construction ensure long life
- Conceived and designed by BEHRINGER Germany
