ลำโพงติดฝ้าเพดาน AUSTRALIAN-MONITOR ATC5010-6 Ceiling Speaker

ลำโพงติดฝ้าเพดาน ATC5010-6 5W, 8″, 8 ohm, with 100V Taps at 5, 2.5, 1, 0.5 & .33W. Fitted with supervisory capacitor & transformer cover

ราคาสินค้าเป็นราคาต่อใบ…และไม่รวมภาษีมูลค่าเพิ่ม…

฿790.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Share This:

Product Description

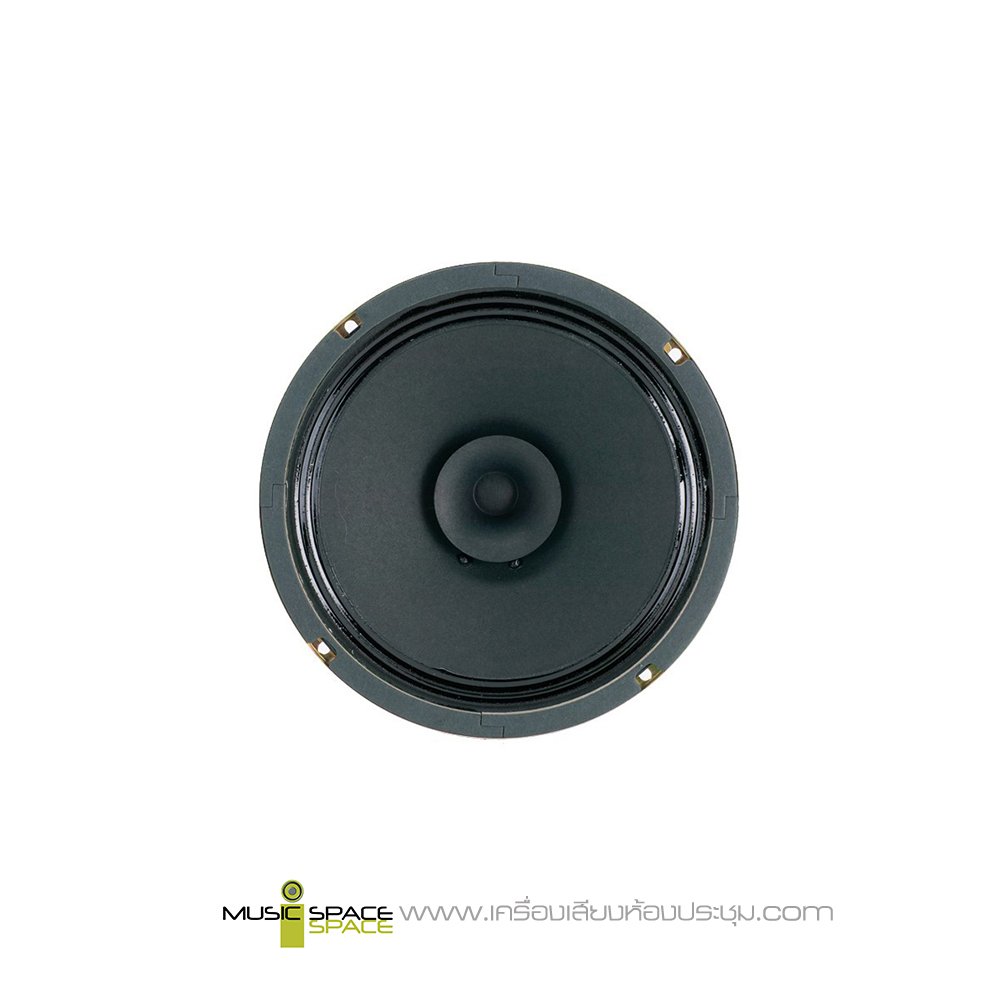

AUSTRALIAN-MONITOR ATC5010-6 8″

ลำโพงติดฝ้าเพดาน ATC5010-6 5W, 8″, 8 ohm, with 100V Taps at 5, 2.5, 1, 0.5 & .33W. Fitted with supervisory capacitor & transformer cover

The ATC5101-6 and ATC5010-6 are high quality surface mount ceiling speakers available in 4 and 8 inch diameters respectively. Designed for the Evacuation and general PA market the ATC5101-6 and ATC5010-6 offer 5 position terminal block, line supervisory capacitor and transformer cover as standard and have a wide frequency response and extremely high sensitivity figures which are critical to these markets.

Features:

• 8 inch dual cone driver
• 100v tappings 5,2.5,1,0.5,0.33 watts
• 93 dB 1 watt @ 1 meter
• EVAC cap installed
• Cutout diameter 205mm
• Depth 96mm

Specifications

Form Factor Ceiling Max Continuous Power 5W
Tappings 5W-2.5W-1W-0.5W-0.33W Max Program Power 10W
IP Rating No Max Peak Power 20W
EASE Model No SPL 1W/1m 93dB
Powered Passive Max SPL RMS 100dB
Driver Diameter 8″ Max SPL Peak 106dB
Colour White Frequency Response (-3dB) 50Hz – 20kHz
Warranty 5 years Dispersion 140deg
Product Dimensions
(W x D x H)
Shipping Dimensions
(W x D x H)

Downloads

ดาวน์โหลด Specification Australian Monitor ATC5010-6
