Product Description

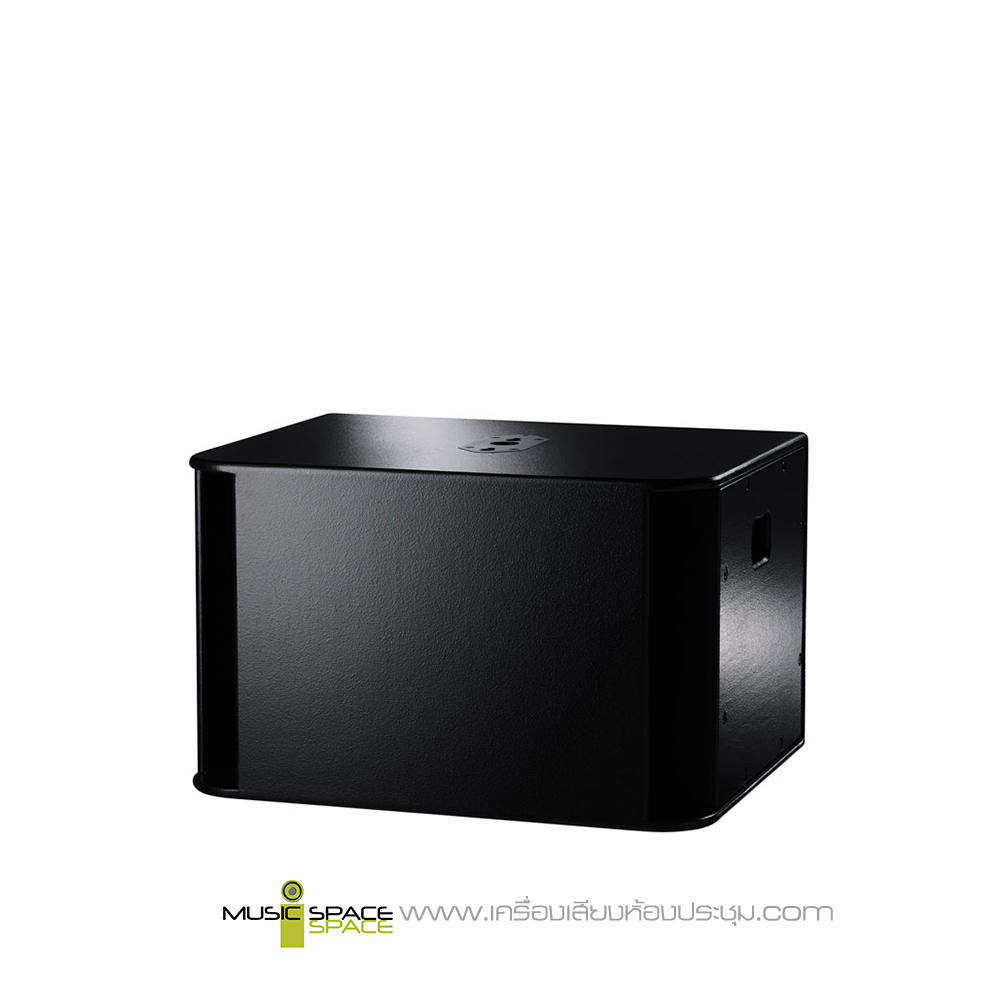

NEXO LS600 Sub Bass
ลำโพงซับเบสสำหรับห้องประชุมขนาด 15 นิ้ว รองรับกำลังขับของเครื่องขยายเสียงได้ 1000-2000 วัตต์ 4 โอหม์, ตอบสนองความถี่ 40 Hz – 110 Hz ±3dB, Usable Range @-6dB [a] 38 Hz – 120 Hz
NEXO LS600 A high power system capable of producing 138 dB Peak SPL, the new LS600 Sub-Bass extends the usable range of the PS10-R2 Loudspeaker to 38Hz, providing exceptional performance and high power output in an extremely compact, light weight package. The PS10 TDController-R2’s integral sub section and combined signal (PS10-R2 and LS600) Speakon wiring ensure cost effective and simple system implementation. One LS600 is typically used with two PS10-R2 loudspeakers, additional units may be used for an enhanced effect.
Features:
- High-power system (138dB Peak SPL @ 1m) with 15in VLF long excursion driver.
- VLF extension (to 38Hz) of PS10-R2 Loudspeakers.
- Sophisticated control electronics ensure reliable, linear operation.
- Integral pole mount that supports one or two PS10-R2 Loudspeakers.
System Applications
- Touring, installed PA for clubs, A/V, theatre, broadcast, Houses of Worship, etc. High-quality stage monitoring for cabarets A/V, theatre, broadcast, etc.
- Fill-in system for use with larger NEXO PS/Alpha systems, or any application needing exceptional side, down and near-field augmentation.
Specification:
LS600 Product Features
- Components: LF 1 x 15″ (38cm) long excursion Neodymium 8Ω driver.
- Height x Width x Depth 435mm x 688mm x 528 mm (17.12″ x 27.09″ x 20.79″).
- Weight 30 kg (66 Lbs) net.
- Connectors 2 x NL4MP SPEAKON 4 pole.
- Construction Baltic Birch Ply & textured, polyurethane black coating.
- Fittings Handles 2 Metal recessed pockets.

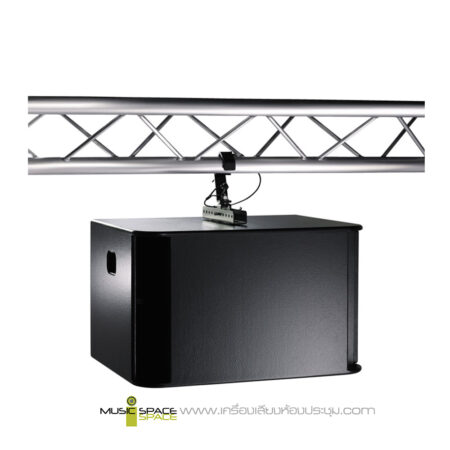

- Flying Points One plate connecting with external accessories.
- Stand fittings Internal Steel Stand Fitting on Top (35mm, 1 3/8″) allows pole mounting for 1 PS10-R2.
System Specifications LS600 with PS10 TDController-R2
- Frequency Response [a] 40 Hz – 110 Hz ±3dB.
- Usable Range @-6dB [a] 38 Hz – 120 Hz.
- Sensitivity 1W @ 1m [b] 101 dB SPL Nominal.
- Nominal Peak SPL @ 1m [b] 135 to 138 dB Peak.
- Crossover Frequencies 120 Hz Active through PS10 TD Controller-R2.
- Nominal Impedance 8 Ohms.
- Recommended Amplifiers 1000 to 2000 Watts into 4 Ohms.
System Operation
- Electronic Controller The LS600 Subwoofer must be used with a Nexo Controller (PS10TD -R2, NX242, or NXAMPS). Use without a properly connected Controller will result in poor sound quality and may damage the components.
- Sub-bass The LS600 Subwoofer provides optional VLF extension for PS10R2 Loudspeakers. Active two-way operation with the PS10-R2 is included in the PS10TD-R2, NX242 or NXAMPS. One LS600 matches 2 x PS10-R2, additional LS600 may be used for enhanced effect.
- Speaker Cables The PS10R2 is wired 2- & 2+ on Speakon connectors, LS600 on 1- & 1+. Loop through Speakons are present on both products. Single identical cables can thus be used to loop through combinations of up to 2 x PS10R2 & 1 x LS600 in no particular order. As part of a policy of continual improvement, NEXO reserves the right to change specifications without notice
