หัวแจ็ค 3.5mm NEUTRIK Rean NYS231-BG Stereo Plug

หัวแจ็คโฟนแบบ 3.5mm Neutrik Rean NYS231-BG, Stereo 3 pole 3.5 mm plug, crimp strain relief, Maximum cable diamete  4.5 mm, Gold-plated contacts, Black metal housing, Made by Rean (registered Trademark of Neutrik AG)

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿80.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Share This:

Product Description

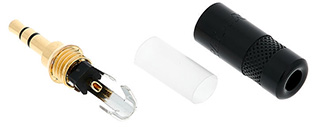

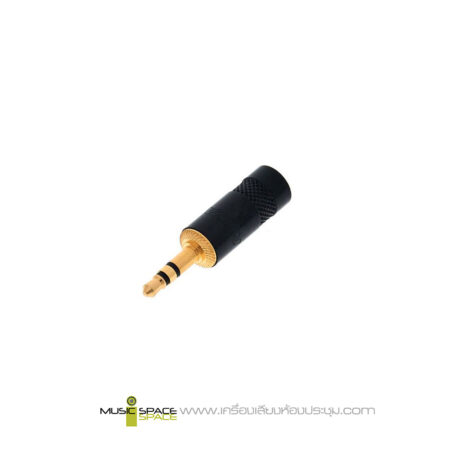

Neutrik Rean NYS231-BG 3.5mm Stereo Plug (Black/Gold)

หัวแจ็คโฟนแบบ 3.5mm Neutrik Rean NYS231-BG, Stereo 3 pole 3.5 mm plug, crimp strain relief, Maximum cable diamete  4.5 mm, Gold-plated contacts, Black metal housing, Made by Rean (registered Trademark of Neutrik AG)

Rean NYS231-BG From NEUTRIK is 3.5mm stereo male jack connector benefits from a beautiful quality design with gold plating of the contacts, promoting conductivity and resistance to oxidation. The connector accepts cables up to Ø8mm diameter.

Features:

  • 3-pin, Size: 3.5 mm
  • Maximum cable diameter 4.5 mm
  • Gold-plated contacts
  • Made by Rean (registered Trademark of Neutrik AG)
  • Black metal housing

Specifications

Dielectric Strength 0.5 kVdc
Insulation Resistance ≥ 1 GΩ
Rated Current Depends on mated connector
Contact Resistance Depends on mated connector
Cable O.D. 0.2″ (4 mm)
Lifetime 1,000 mating cycles
Insulation Thermoplastic
Temperature Range -13°F to 158°F (-25°C to 70°C)

Downloads

ดาวน์โหลด All Documents Neutrik Rean NYS231
