Product Description
AUSTRALIAN-MONITOR AM22P Power Amplifier
เครื่องขยายเสียงระบบประกาศ AUSTRALIAN-MONITOR AM22P 1RU มีกำลังขับ 2×200 วัตต์/4 Ohms,70 volt/100 volt/outputs Class D

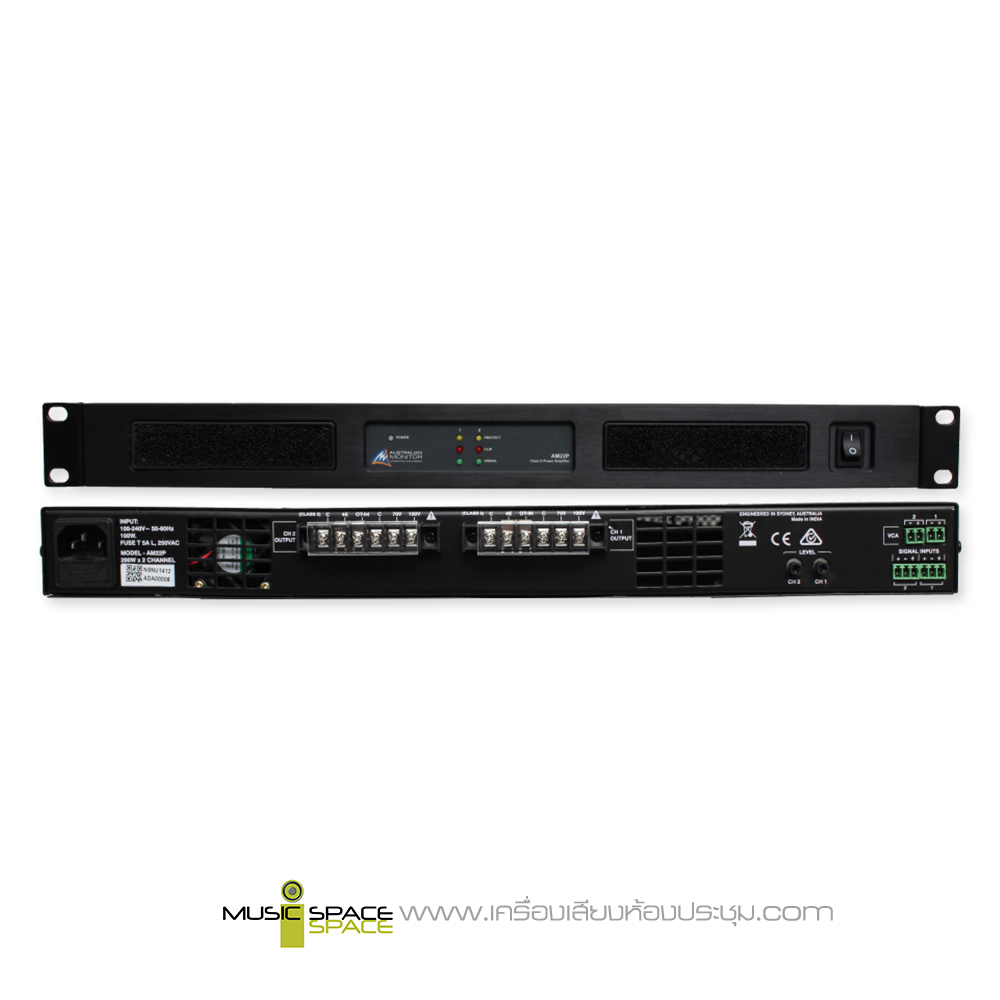

The Australian Monitor AM22P is a 1 RU two channel Class D power amplifier design. The AM22P delivers 200 watts per channel into 100 volt, 70 volt or 4 ohms. The AMD22P features front panel signal presence, clip and fault indication per channel, rear panel level controls and remote master VCA per channel.
Features:
- Class-D amplification
- 4Ω/70V/100V Operation
- Balanced inputs
- Output Limiter
- Ground Lift
- Bridge mode
- Voltage controlled attenuation (VCA)
- Protect/Clip and Signal LED indicators
- Power factor corrected universal switch mode power supply • Efficient front to back cooling
- Dual, twin speed axial fans.
- 6 pin output screw terminal per channel
- Custom designed, 1RU heavy-duty steel chassis
- Front rack mount ears
- Symmetrical layout – even weight distribution
Protection Features:
- Short-circuit protection
- Suppression of inrush current at mains turn-on • Internal, independent DC supply rail fuses
- Radio-frequency interference suppression
