Product Description

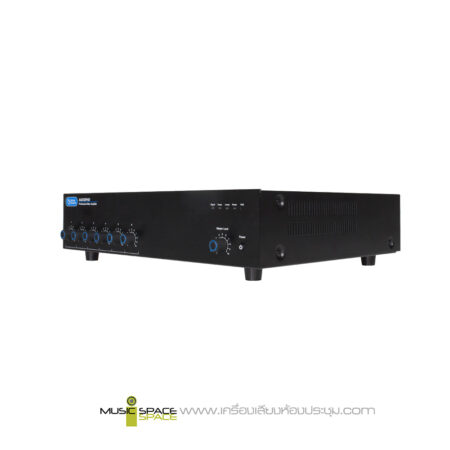

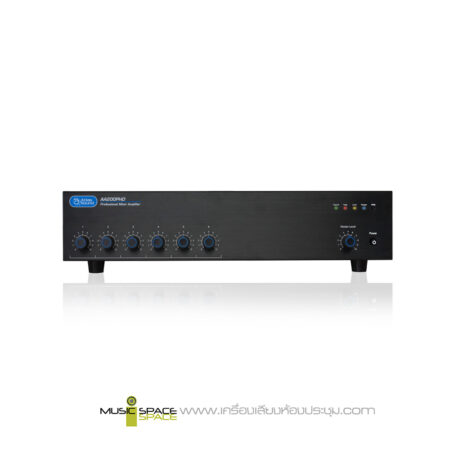

Atlas AA200PHD 6-Input 200W Mixer Amplifier
Atlas AA200 PHD เครื่องผสมสัญญาณเสียงระบบประกาศแบบมีกำลังขยายในตัว 200 วัตต์ into 25V/70.7V and 4Ω Loads, 6-input with PHD Automatic System Test, Preamp In for External Processors
The AA200PHD 6-Input 200W Mixer Amplifier from Atlas Sound is a 6-input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, medium-to-large speech privacy systems, and in applications where music on hold (MOH) and paging is required. With four microphone/line input and two stereo line inputs, the AA200PHD Amp can accommodate a variety of input sources including paging microphones, media players, and digital music receivers.
The AA200PHD Amp includes an automatic system test, the Push Here Diagnostic (PHD). The PHD button is designed to check the connected speaker lines for wiring and impedance errors. This test can be activated once all speakers are connected and the circuit automatically verifies that the attached speakers’ tap settings do not exceed the amplifier’s rated power, no speakers are mistakenly tapped at 8 ohms, and the speaker wire is free from shorts.
The amp also incorporates a Remote Input Selection and Remote Level Control feature that allows the integrator to use the WPD-RISRL remote wall plate (not included) which lets the user select the input and adjust the volume from that wall plate up to 200’ from the amplifier.

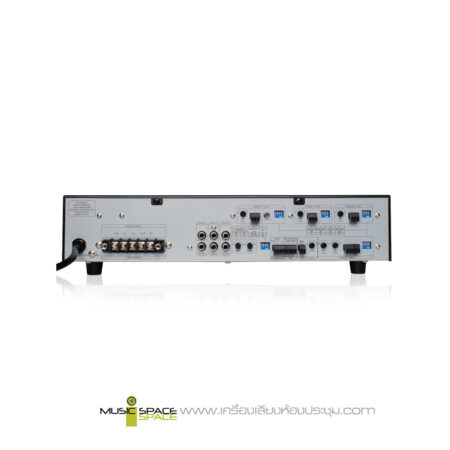

The AA200PHD Amp provides 200W output power into 25/70.7V, or 4 ohms speaker systems. Rear panel DIP switch allows for creation of Zone 2 output mix using any or all of inputs 1-4. Unit can also be set-up to mute Inputs 2 through 6 on signal from Input 1 for paging applications where other input sources need to be muted during a page. Inputs 1 to 4 are either Mic or Line input selectable and phantom power is an option when using them as a microphone input.
Features:
- 200W into 25V/70.7V and 4Ω Loads
- Automated Diagnostic System Test (Push Here Diagnostic®)
- Four Balanced Mic/Line/Tel Inputs w/ Phantom Power
- Input Assignable Zone 2 Output
- Remote Level Control
- Remote Input Select (RIS)
- Line Output
- Preamp In for External Processors
- Variable Mute Sensitivity Control for Input 1
- Contact Closure Mute Terminals
- Optional Rack Mount Kit Available – Model AARMK2-0
