Product Description
Atlona AT-UHD-EX-70-2PS 4K/UHD HDMI over HDBaseT Transmitter/Receiver Kit
ชุดอุปกรณ์ใช้สำหรับรับ-ส่งและแปลงสัญญาณจาก HDMI เป็น HDBaseT (LAN) เพิ่มเพิ่มระยะทางในการส่งสัญญาณ Atlona AT-UHD-EX-70-2PS ในชุดประกอบด้วยเครื่องส่ง AT-UHD-EX-70-2PS-TX 1 เครื่อง, เครื่องรับ AT-UHD-EX-70-2PS-RX 1 เครื่อง, Supports Resolutions up to DCI 4K @ 60p, Transmits 4K up to 40เมตร, Transmits HD up to 70 เมตร

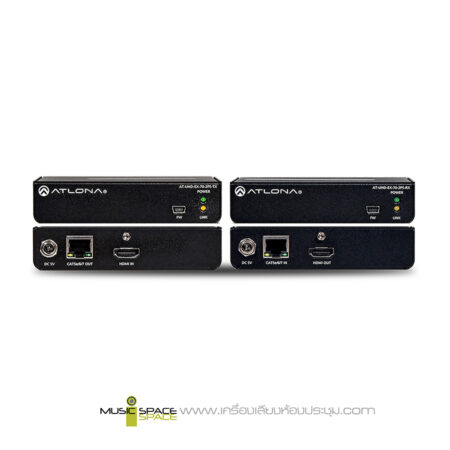

The Atlona AT-UHD-EX-70-2PS 4K/UHD HDMI over HDBaseT TX/RX Kit is comprised of an HDBaseT transmitter unit and a receiver unit. It supports HDMI transmission up to 230′ over a Cat 6a/7 cable. The kit supports video signals up to DCI 4K @ 60p with embedded multi-channel audio. HDCP 2.2 compliance and EDID communication support ensure that 4K content is displayed properly.

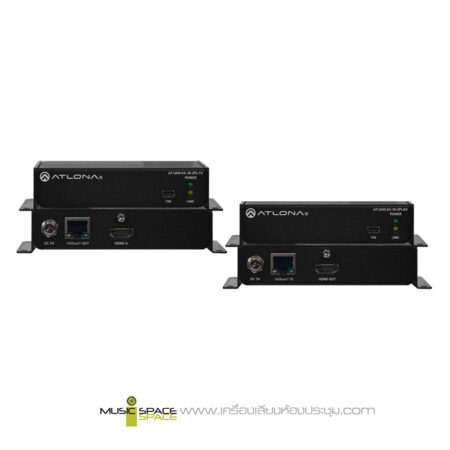

Both the transmitter and receiver fit in a quarter-rack space and feature metal enclosures for durability and easy rack mounting. Rear panel I/O ports provide uncluttered wire management.
This kit is ideal for use in residential and commercial point-to-point applications that can leverage HDBaseT for signal transmission over greater distances than conventional HDMI solutions can support. Furthermore, the kit is compatible with the H2H matrix switcher series or HDDA distribution amplifier series for long distance AV signal extension without PoE capability or control signal extension requirements.
Features:
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- HDCP 2.2 compliant
- Supports 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color)
- HDBaseT™ extender kit for HDMI® up to 230 feet (70 meters)
- Multi-channel audio compliant for all PCM, Dolby®, and DTS® formats
Specifications
Resolution
|
| Video |
4096×2160@24/25/30/50*/60Hz*, 3840×2160@24/25/30/50*/60Hz*, 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i |
| VESA |
2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480 |
| Colorspace |
YCbCr, RGB |
| Chroma Subsampling |
4:4:4, 4:2:2, 4:2:0 |
| Color Depth |
8-bit, 10-bit, 12-bit |
| HDR |
4K HDR10 @ 24Hz, 4:2:0 chroma subsampling, 10-bit color
(Source signal delivered from Ultra HD Blu-ray as 4K @ 24Hz 4:2:2. Not compatible with HDR10 @ 60Hz.) |
Audio
|
| Formats |
PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Sample Rate |
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
| Bit Rate |
up to 24-bit |
Distance
|
| CAT5e/6 @ 4K |
up to 35 meters |
up to 115 feet |
| CAT6a/7 @ 4K |
up to 40 meters |
up to 130 feet |
| CAT5e/6 @ 1080p |
up to 60 meters |
up to 197 feet |
| CAT6a/7 @ 1080p |
up to 70 meters |
up to 230 feet |
| HDMI IN/OUT @ 4K |
up to 5 meters |
up to 15 feet |
| HDMI IN/OUT @ 1080p |
up to 10 meters |
up to 30 feet |
Signal
|
| Bandwidth |
10.2 Gbps |
| CEC |
Pass through |
| HDCP |
Supports up to 2.2 |
Connector
|
| Firmware |
Mini-B USB |
| HDBaseT |
RJ45 (8P8C) |
| HDMI |
Type A |
| Power |
DC 5V locking connector |
Temperature
|
| Operating |
0°C to 50°C |
32°F to 122°F |
| Storage |
-20°C to 60°C |
-4°F to 140°F |
| Humidity |
20 to 90% non-condensing |
Power
|
| Consumption |
1.55W |
| Idle Consumption |
0.58W |
| Supply |
Input: AC100~240V 50/60Hz
Output: DC 5V/1.2A |
Dimension
|
| H x W x D |
25 x 109 x 76 (mm) |
1 x 4.3 x 3 (inch) |
| w/ears |
27 x 129 x 76 (mm) |
1.06 x 5.08 x 3 (inch) |
| Weight |
| TX Unit |
0.22kg |
0.49lbs |
| RX Unit |
0.24kg |
0.53lbs |
| Shipping |
0.80kg |
1.76lbs |
Certification
|
| Power Supply |
CE, FCC, RoHS, cULus, RCM, CCC |
| Product |
CE, FCC |
* 4096×2160@50/60Hz & 3840×2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only
