Product Description

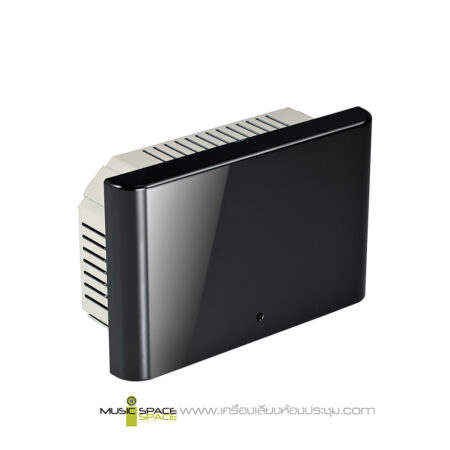

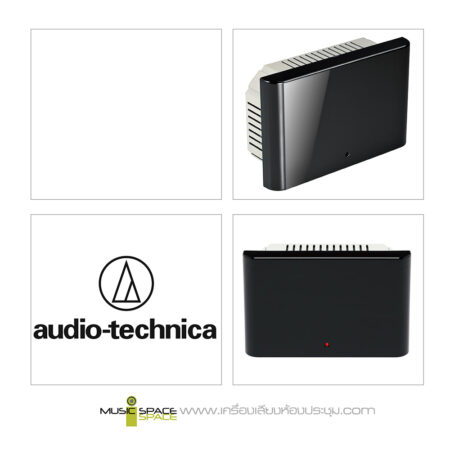

ATCS-A60RX IR Long Range Receiver
อุปกรณ์รับสัญญานสำหรับชุดไมค์ประชุมไร้สาย audio-Technica, Expands the operational area of infrared transmission and reception in a very large room, or in a room with a high ceiling
ATCS-A60RX ATCS-60 Long Range Receiver. High power antenna for use with ATCS-60 conference system. Reception range of about 15 meters, Ideal for large conference rooms or high ceiling rooms and Connects to the ATCS-A60MX controller via a 75Ω BNC coaxial
Features:
- Works with the ATCS-A60TX transmitter and the ATCS-A60MX mixer
- Expands the operational area of infrared transmission and reception in a very large room, or in a room with a high ceiling
- The ATCS-A60MX can control up to four A60TX infrared transmitters and four A60RX infrared receivers
- In a very large room, the system can manage up to 4 A60MX controllers for a total of 16 A60RX receivers and 16 A60TX transmitters
- The joint use of A60RX and its dedicated antennas can extend the emission of the infrared signal within a room by up to 20 m
- Infrared transmission keeps the information inside of the room
- Multiple conference systems can thus be used simultaneously in adjacent rooms while ensuring the protection of your data
- The A60RX receiver is equipped with a 1/4″ thread mount to allow quick and easy installation on a camera tripod, the wall or the ceiling
- Connects via a 75Ω BNC coaxial cable to the ATCS-A60MX controller
