ลำโพงฝังฝ้า Australian Monitor QF6CS Ceiling Speaker 6″

ลำโพงติดเพดาน Australian Monitor QF6CS รองรับการใช้งานแบบ 70/100 V line ขนาดดอกลำโพง 6 inch dual cone driver, 1.25, 2.5, 5, 10 watt taps @ 100V, QuickFit white ABS plastic baffle and powder coated steel grill

ราคาไม่รวมภาษีมูลค่าเพิ่ม…

฿2,000.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Share This:

Product Description

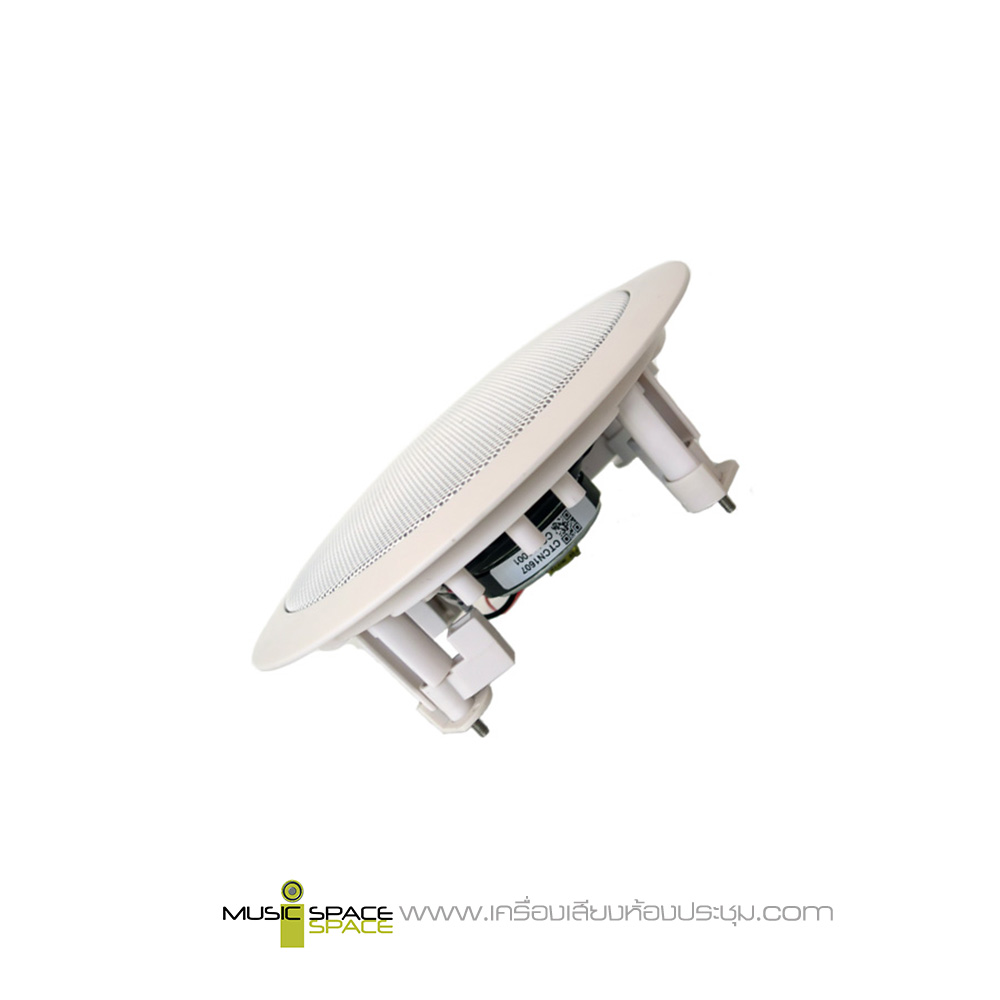

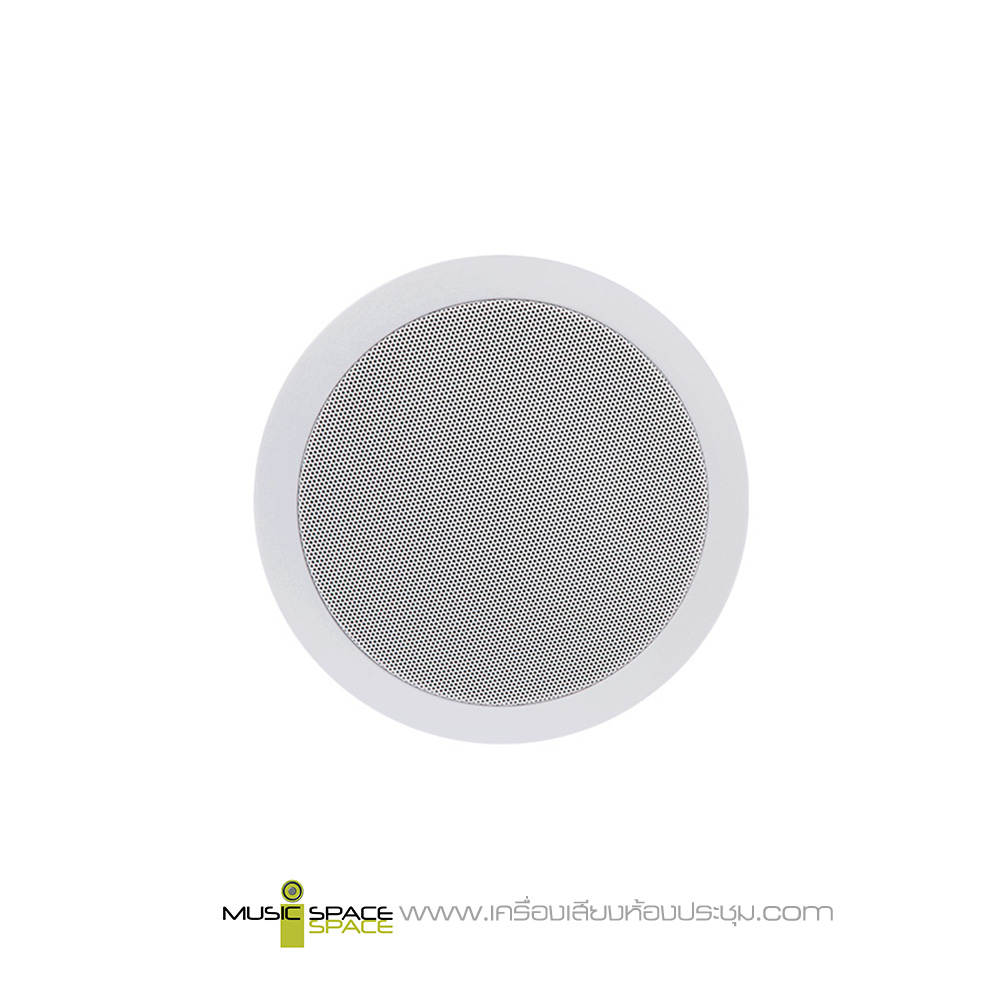

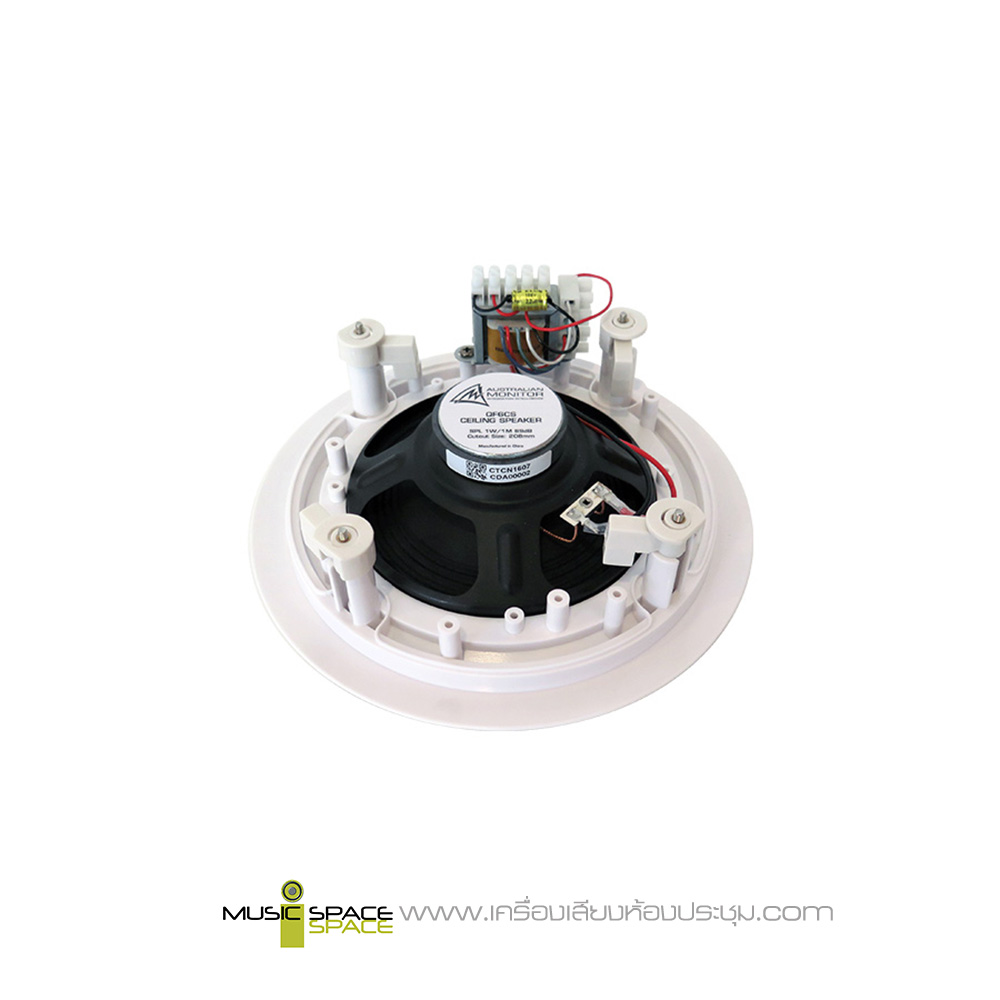

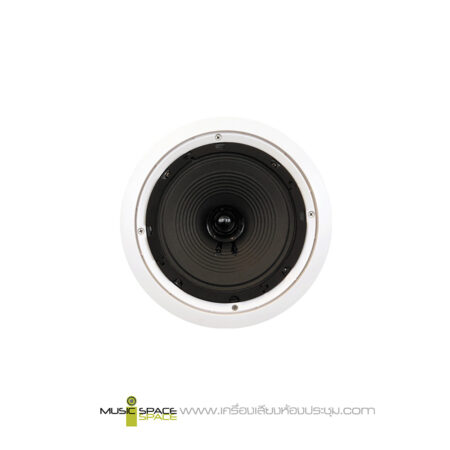

Australian Monitor QF6CS Coaxial Ceiling Speaker 6″ 10W

ลำโพงติดเพดาน Australian Monitor QF6CS รองรับการใช้งานแบบ 70/100 V line ขนาดดอกลำโพง 6 inch dual cone driver, 1.25, 2.5, 5, 10 watt taps @ 100V, QuickFit white ABS plastic baffle and powder coated steel grill

The Australian Monitor QuickFit range of ceiling speakers has been an industry staple for over a decade. This refreshed series of QuickFit dual cone flush mount ceiling speakers are now better than ever.

Offering improved voicing of these great products, refined toggle mounting system, and including all the information you need at your fingertips with a new cut out template providing wiring, wattage tapping and cut out information. Together these new and improved features provide an even better installation experience.

The QuickFit dual cone series QF6CS provide cost effective solutions for a myriad of commercial audio applications such as education, shopping centres, common areas, RSLs, clubs, restaurants, fire evacuation systems and many more applications that requires a reliable high quality affordable commercial ceiling speaker product.

Each model also features a supervisory capacitor as standard to allow for evacuation system integration.

Features:

  • 6 inch dual cone driver
  • QuickFit white ABS plastic baffle and powder coated steel grill
  • 1.25, 2.5, 5, 10 watt taps @ 100V
  • Evac. capacitor as standard

Specifications

Form Factor Ceiling Max Continuous Power 10W
Tappings 10W-5W-2.5W-1.25W-0.62W Max Program Power 20W
IP Rating No Max Peak Power 40W
EASE Model Yes SPL 1W/1m 89dB
Powered Passive Max SPL RMS 99dB
Driver Diameter 6″ Max SPL Peak 105dB
Colour White (RAL 9010) Frequency Response (-3dB) 80Hz – 20kHz
Warranty 5 years Dispersion 100deg
Product Dimensions
(W x D x H)
240mm x 78mm Shipping Dimensions
(W x D x H)
100mm x 241mm x 241mm
Net Weight 0.9 Kg Shipping Weight 1.1 Kg

Downloads

ดาวน์โหลด Data Sheet QF6CS

Video
