เครื่องรับส่งภาพและเสียงแบบไร้สาย Barco ClickShare CSE200+

Product Description

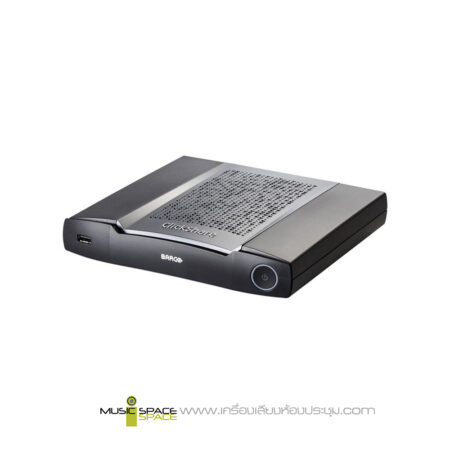

Barco ClickShare CSE-200+ Wireless Presentation System

เครื่องรับส่งสัญญาณภาพและเสียงแบบไร้สาย Barco ClickShare CSE-200+ Wi-Fi 5 (802.11a/b/g/n/ac) Connectivity, Up to 100′ Wireless Range, Up to 4K UHD Output Resolution, ClickShare App for iOS and Android, Two ClickShare Buttons Included

Barco ClickShare CSE-200+ Wireless Presentation System. Plug one of the included ClickShare Buttons into your computer and connect the Base Unit to your HDMI-compatible display or projector to wirelessly share content. Alternatively, you can use the ClickShare app to mirror your Android or iOS smartphone or tablet to the connected display. This ClickShare system has a range of up to 100′ via Wi-Fi 5 technology.

Enriched sharing

The CSE-200+ offers interactive collaborative experiences for medium-sized meeting rooms. It allows up to 2 persons to share content simultaneously. Users simply plug a USB-powered device – the ClickShare Button – into their PC or Mac and click the button to get the content from their laptop on the large meeting room screen. With the ClickShare Apps, users can also share content from their laptops, mobile phones or tablets. Make sure to have firmware version 1.7 installed on your Base Unit to enable the best experience with the Desktop App.

Stimulate creativity in your entire enterprise

The CSE-200+ was designed for enterprise rollouts. It offers a HDMI input for legacy equipment, easy switching between wireless and wired sources, enhanced security features, full network integration, a wide range of interactivity features  – including annotation, blackboarding and touch back support on a 4K canvas and central management.  Allowing up to 2 persons to share content simultaneously, the CSE-200+ encourages brainstorming and productivity in your enterprise.

Features:

• Wi-Fi 5 (802.11a/b/g/n/ac) Connectivity
• Up to 100′ Wireless Range
• Up to 4K UHD Output Resolution
• Up to Full HD Input Resolution
• 1x HDMI Input, 1x HDMI Output
• Connect up to 16 ClickShare Buttons
• Up to 2 Simultaneous On-Screen Users
• ClickShare App for iOS and Android

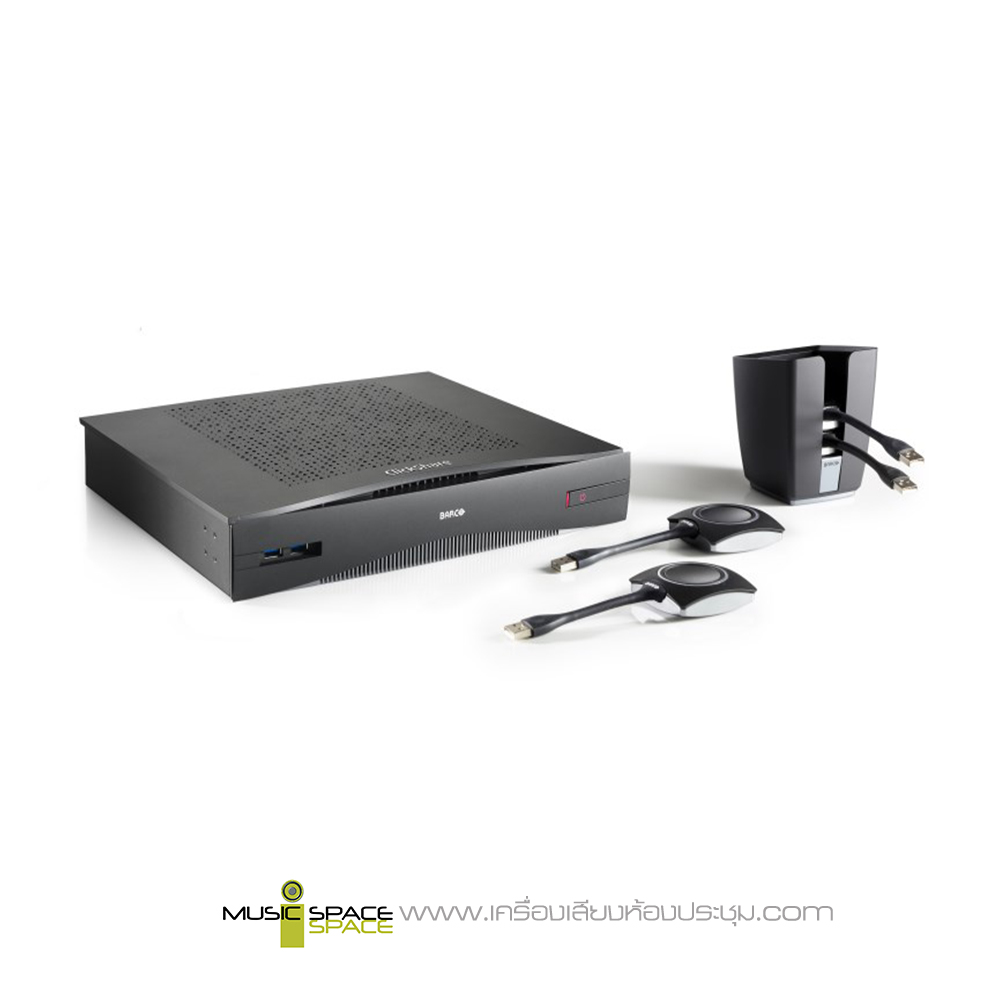

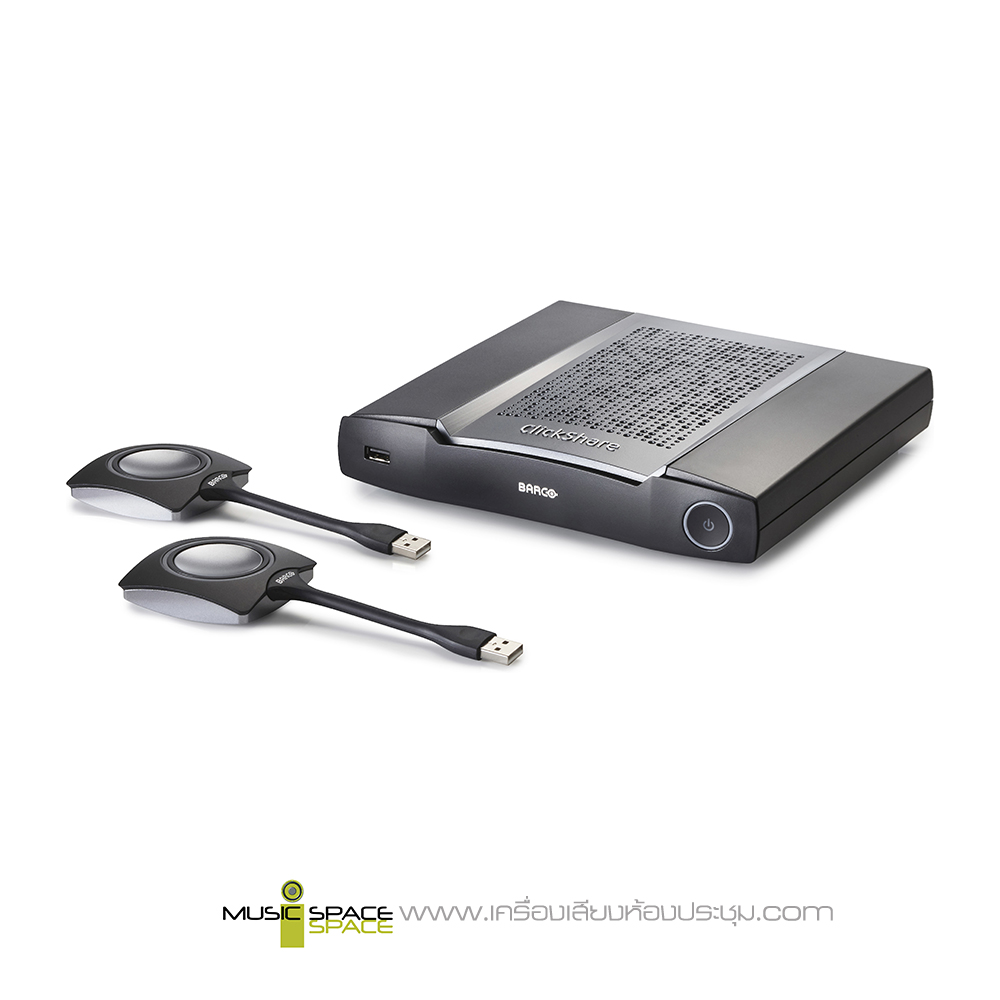

• Two ClickShare Buttons Included

Specifications

Wi-Fi Connectivity	Dual-Band Wi-Fi 5 (802.11a/b/g/n/ac)
Wireless Standards	AirPlay: Supports Mirroring from iOS 9.0 to iOS 12, Mac OS 10.14 (Mojave) Chromecast built-in: Supported via Android 8 Windows 10: Available via Future Firmware Update
Input	1 x HDMI Version 1.4b
Output	1 x HDMI Version 1.4b 1 x 1/8″ / 3.5 mm Audio 1 x Optical TOSLINK
Other Connectors	1 x RJ45 Ethernet LAN (1 Gbit) 1 x USB Type-C 2.0 (Rear) 2 x USB Type-A 2.0 (Rear) 1 x USB Type-A 2.0 (Front)
Authentication Protocols	WPA2-PSK in Standalone Mode WPA2-PSK or IEEE 802.1X Using ClickShare Button in Network Integration Mode
Maximum Output Resolution	4K UHD 3840 x 2160 @ 30 Hz
Maximum Input Resolution	1920 x 1080 @ 60 Hz
OS Support	Windows 7, 8, 8.1, 10; 32- & 64-Bit macOS 10.13 & 10.14 (Mojave) Android 7, 8, 8.1 via the ClickShare App iOS 11 & 12 via the ClickShare App
Simultaneous Sources on Screen	2
Simultaneous Connections	16
Range	Up to 100′ / 30 m (Approximately) Between ClickShare Button and ClickShare Base Unit
Operating Conditions	32 to 104°F / 0 to 40°C, 0 to 90% Relative Humidity, Non-Condensing Maximum of 95°F / 35°C @ 9842.5′ / 3000 m
Storage Conditions	-4 to 140°F / -20 to 60°C, 0 to 90% Relative Humidity, Non-Condensing
Security	Cable Lock Slot
Certifications	FCC/CE
Noise Level	≤25 dBA @ 32 to 86°F / 0 to 30°C ≤30 dBA @ 86 to 104°F / 30 to 40°C
Power Requirements	110 to 220 VAC
Power Consumption	Operational, Max: 50 W Deep Standby: <0.5 W Network Standby: <8 W
Dimensions	7.87 x 1.54 x 7.95″ / 200 x 39 x 202 mm
Weight	1.98 lb / 900 g

Downloads

ดาวน์โหลด Data Sheet Barco ClickShare CSE-200+

ดาวน์โหลด App & Accessories Barco ClickShare CSE-200+

Video
