Product Description

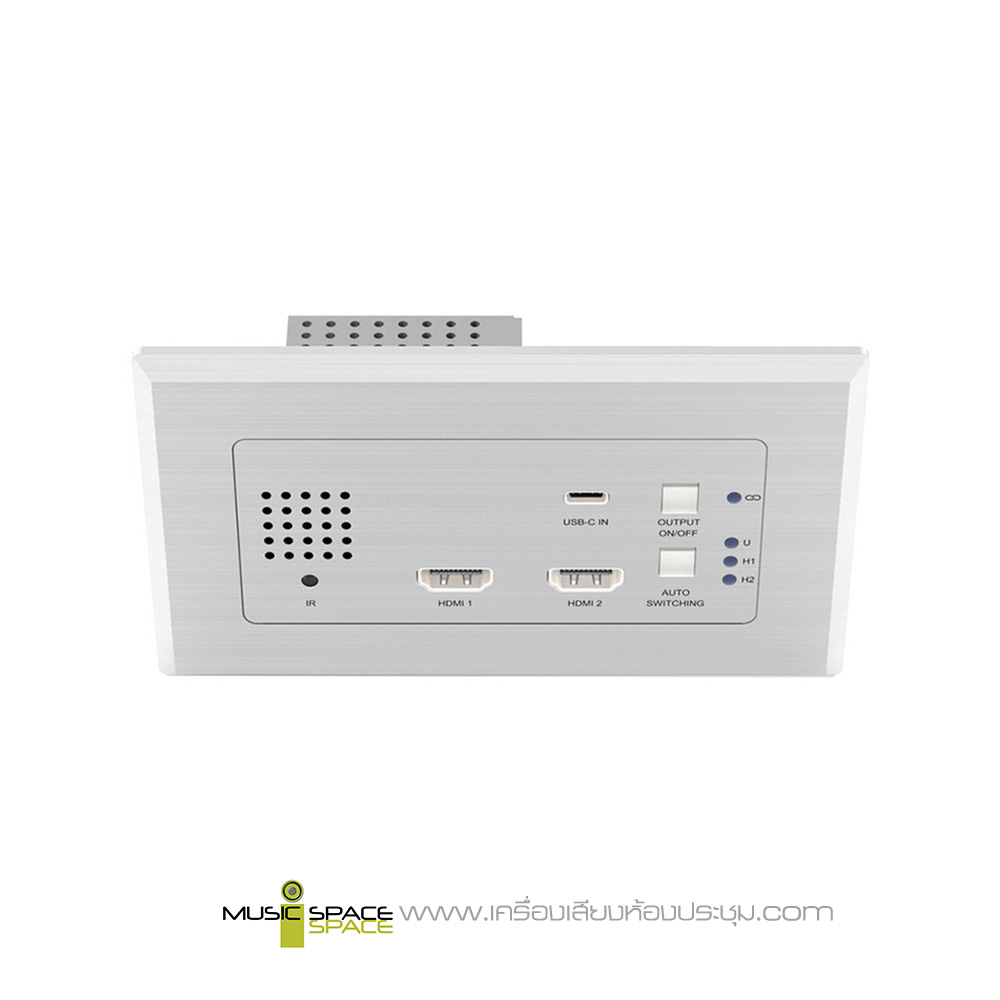

BLUSTREAM HEX31WP-TX HDMI Wall Plate HDBaseT Transmitter
เพลทติดผนังสำหรับส่งและแปลงสัญญาณ HEX31WP-TX HDMI Wall Plate, 2 x HDMI & 1 x USB-C Wall Plate HDBaseT™ Transmitter – HDMI, USB-C and RS-232 / IR up to 70m (4K up to 40m), Manual / Auto Source Switching, Advanced EDID Management
Our HEX31WP-TX HDMI/USB-C wall plate HDBaseT™ Transmitter is a multi-format 4K input switcher solution delivering HDMI and USB-C inputs up to 70m at 1080p (40m 4K 60Hz 4:2:0)
The HEX31WP-TX features both manual or automated source selection and includes display on / off control via CEC, RS-232 and IR (via compatible HDBaseT™ receivers / Matrix).
The HEX31WP-TX has been designed to work with all Blustream HDBaseT™ receiver and matrix solutions, be installed in both UK and European back boxes and can be powered locally or from compatible Blustream HDBaseT products.
Features:
- Features 2 x HDMI & 1x USB-C inputs with manual / auto source selection
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Extends HDMI at 1080p up to a distance of 70m
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Input selection via front panel, IR or RS-232
- Programmable ON / OFF button utilising IR, RS-232 or CEC for control of display device at HDBaseT™ receiver
- Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products
- Bi-directional RS-232 pass through
- Supports IR pass-through to HDBaseT™ device
- Compatible with all Blustream HDBaseT™ receiver / matrix products *
- Magnetic faceplate surround allowing both UK & EU back box compatibility
- HDCP 2.2 support
* Technical performance is subject to the features supported on the connected HDBaseT™ device
