Product Description

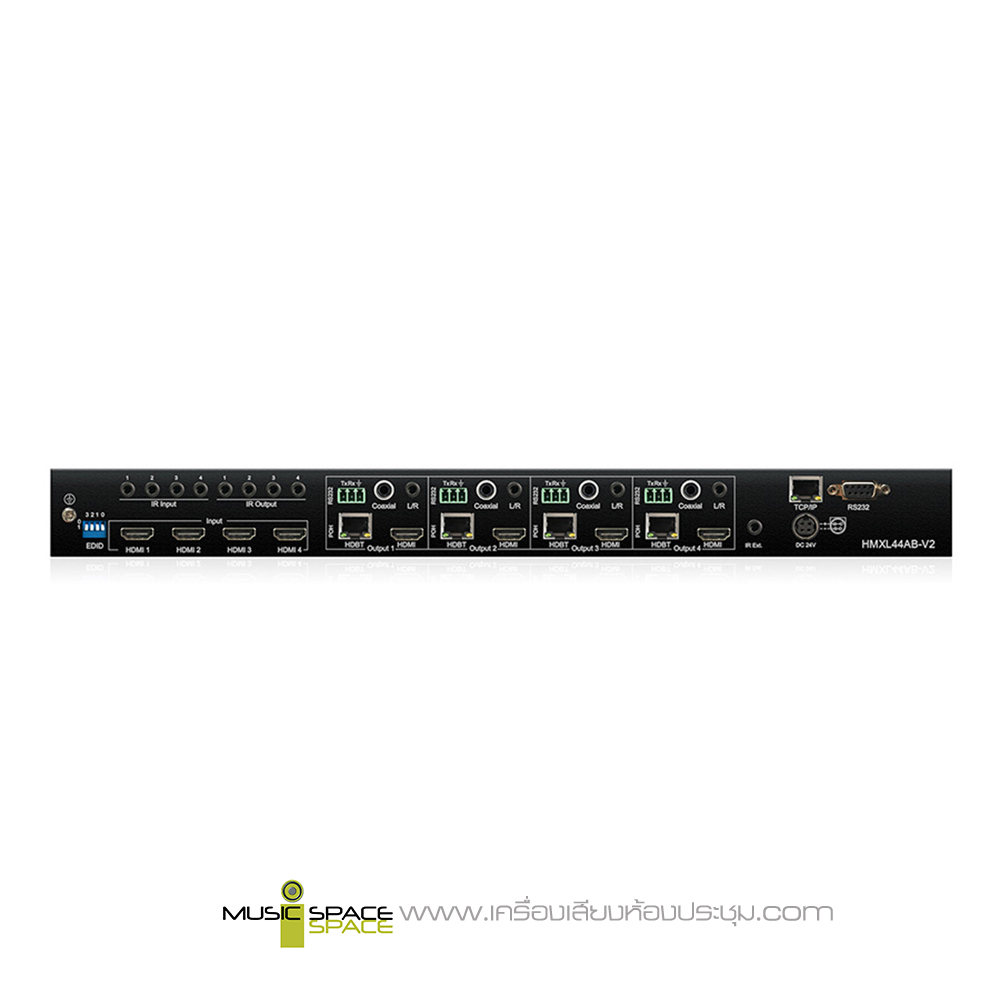

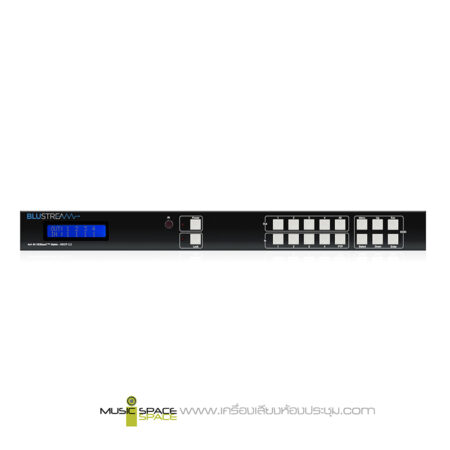

BLUSTREAM HMXL44-KIT-V2 4×4 HDBase Matrix Kit
เครื่องสลับและแปลงสัญญาณ HDMI เป็น HDBaseT แบบ 4×4 รองรับสัญญาณ 4K BLUSTREAM HMXL44KIT-V2, 70m (4K up to 40m), Bi-directional IR & RS-232, PoH (PoE), Simultaneous HDMI + HDBaseT Outputs, Audio Breakout with pre-amp variable line-level control, RS-232 & TCP/IP Control, HDCP 2.2 compliant, Web GUI, Includes 4x HDBaseT receivers
Our Essential 4×4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The HMXL44-KIT-V2 is a 4K HDCP 2.2 matrix package, delivering HDMI, Bi-directional IR and PoH (Power over HDBaseT™) up to lengths of 70m over a single CAT cable.
The matrix also provides advanced features including Audio breakout with pre-amp variable line-level control, simultaneous HDBaseT™/HDMI outputs, RS-232 pass through to enable 3rd party control of displays and a web browser interface module for control and configuration of the matrix. The HMXL44-KIT-V2 is supplied with 4 x HEX70ED Receivers.
Features:
- Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
- Features 4 x HDMI inputs which can be independently routed to 4x HDBaseT™/HDMI outputs
- Simultaneous HDBaseT™ and HDMI outputs to allow connection to dual displays per zone
- HDMI audio breakout to associated Digital Coax, and analogue L/R audio outputs with pre-amp line level volume control
- Extends HDMI up to a distance of 70m over single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal display
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Web interface module for control and configuration of Matrix (instructions available in Drivers & Protocols section)
- Bi-directional IR from all input and output locations
- Bi-directional RS-232 from all input and output locations
- Supplied with Blustream IR receivers and emitters
- Control via front panel , IR, RS-232 and TCP/IP
- Supports PoH (Power over HDBaseT™) to power compatible HDBaseT™ receivers
- 3rd Party drivers available for all major home control brands
- Advanced EDID management
- HDCP 2.2 compliant
- Matrix kit is supplied with 4 x HEX70ED-RX HDBaseT™ receivers
- 1U Design for 19″ rack mount integration – mounting kit included
