Product Description

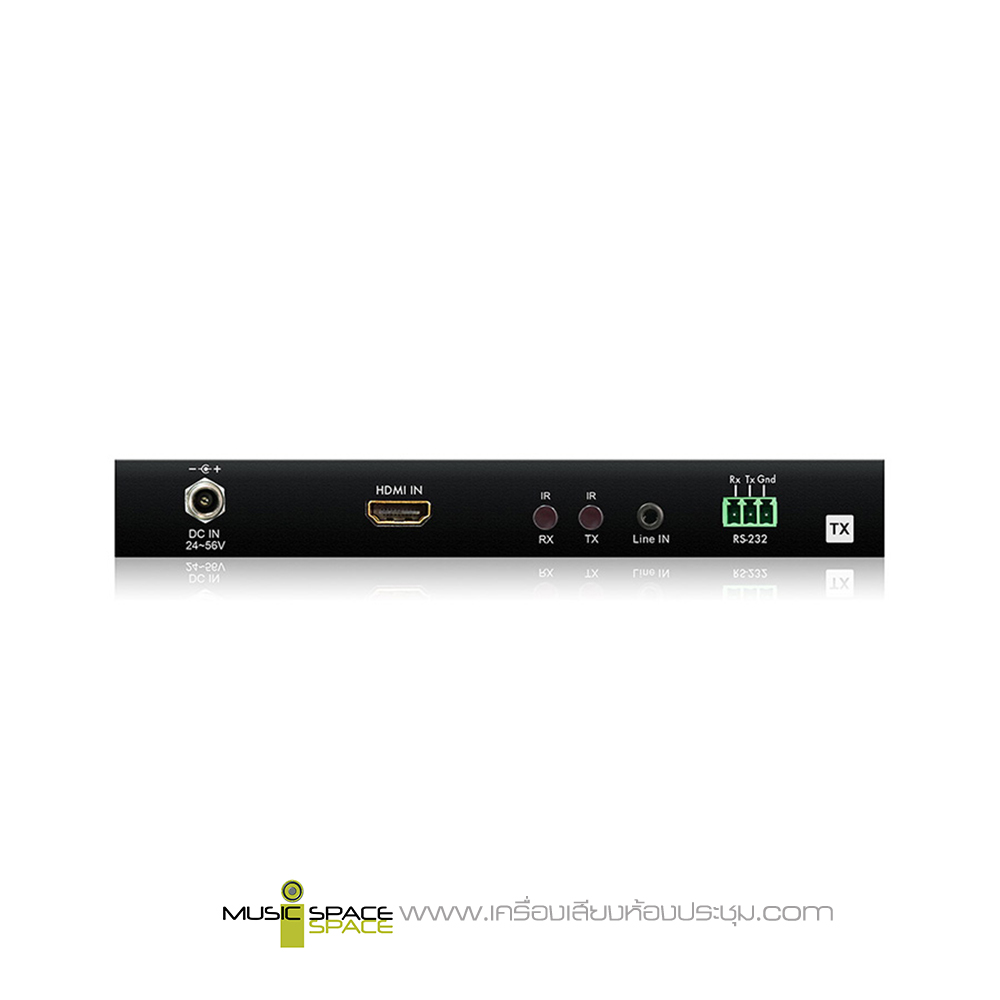

BLUSTREAM IP100UDH-TX IP Multicast UHD Video Transmitter over 1GB Network
เครื่องส่งสัญญาณภาพและเสียงผ่าน IP (Multicast UHD) BLUSTREAM IP100UDH-TX Advanced UHD video over 1GB Network , Extends HDMI up to a distance of 100m over single CAT cable, Analogue L/R audio input, Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Our UHD Multicast distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1GB Network switch.
The IP100UHD-TX is an industry leading 4K HDMI transmitter that using lossless compression technology delivers HDMI, Bi-directional IR and RS-232 up to lengths of 100m over a single CAT cable.
The IP100UHD-TX can be powered via PoE from the Network switch or locally should the switch not support PoE.
Features:
- Advanced UHD video over 1GB Network
- Extends HDMI up to a distance of 100m over single CAT cable
- Features 4 operational modes:
-Matrix distribution (requires 1GB network switch)
-Video wall (requires 1GB network switch)
-One-to-one HDMI extender (no network switch required)
-One-to-many HDMI extender (no network switch required) - Supports input 4K UHD video up to 100m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal display
- Supports HDR (High Dynamic Range) pass through (at 24fps max)
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
- Analogue L/R audio input
- Bi-directional RS-232 pass through
- Bi-directional IR from all input and output locations (in a point-to-point configuration)
- PoE (Power over Ethernet) to power Blustream products from compatible PoE switch
- Local 24-56V power supply (should Ethernet switch not support PoE) – sold separately
- HDCP 2.2 compliant, Advanced EDID management
