Product Description

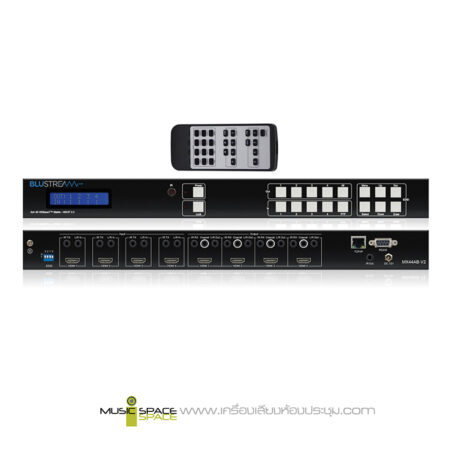

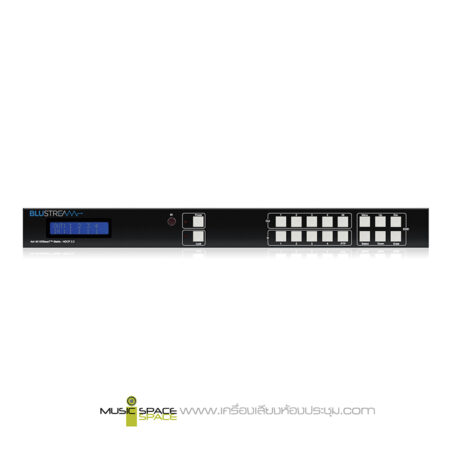

BLUSTREAM MX44AB-V2 4×4 4K HDMI 2.0 HDCP 2.2 Matrix
เครื่องสลับสัญญาณ HDMI แบบ 4×4 พร้อมถอดสัญญาณเสียงอนาล็อกรองรับสัญญาณ 4K BLUSTREAM MX44AB-V2, 4x HDMI inputs which can be independently routed to 4x HDMI outputs, with audio breakout, Supports 4K UHD video, EDID management and IR routing
MX44AB 4K HDMI matrix features HDMI 2.0 chipsets with HDCP 2.2 support, allowing distribution of four HDMI sources to four displays. This enables all sources to be viewed seamlessly as required within a matrix configuration.
The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4. The 4-Way matrix also includes the advanced features of a web browser interface module for control and configuration of the matrix, audio breakout and EDID management.
Features:
Features 4x HDMI inputs which can be independently routed to 4x HDMI outputs- Supports 4K UHD video (up to 4K @60Hz 4:4:4)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal display
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- HDMI audio breakout to associated output analogue L/R audio and Coaxial digital outputs concurrently
- Web interface module for control and configuration of the Matrix
- Control via front panel, IR, RS-232 and TCP/IP, IR routing
- Supplied with Blustream IR receivers and emitters
- 3rd Party drivers available for all major home control brands
- Advanced EDID management, HDCP 2.2 compliant
