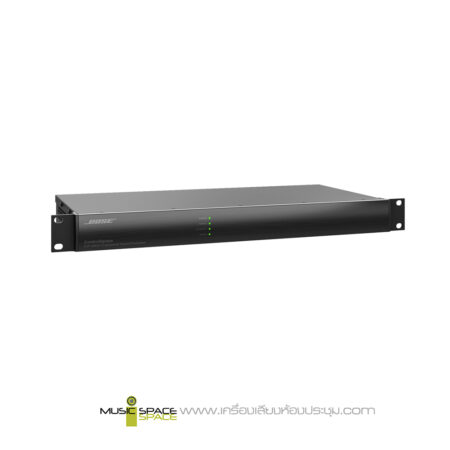

โปรเซสเซอร์ BOSE ControlSpace ESP-880 Sound Processor

เครื่องควบคุมลำโพง BOSE ControlSpace ESP-880A PA Management Processor with 8-in/8-out Analog I/O, AmpLink Output, and 24-bit/48kHz DSP, High-Quality Analog Circuitry, RJ-45 Ethernet connection

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿110,000.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Category: Tag:
Share This:

Product Description

BOSE ControlSpace ESP-880 Sound Processor

เครื่องควบคุมลำโพง BOSE ControlSpace ESP-880A PA Management Processor with 8-in/8-out Analog I/O, AmpLink Output, and 24-bit/48kHz DSP, High-Quality Analog Circuitry

The Bose Professional ControlSpace ESP-880A Engineered Sound Processor is an open-architecture DSP designed for a wide variety of applications from small, self-contained projects to large, networked systems.

It features 8×8 analog audio I/O, a Bose AmpLink output, and advanced digital signal processing with 48 kHz / 24-bit audio conversion. The ControlSpace ESP-880A is engineered for precise performance with low-latency and ultralow noise operation.

Features:

  • High-quality analog circuitry offers both mic and line-level I/O and operates with ultralow noise and 115 dB dynamic range
  • Advanced digital signal processing supports audio at 48 kHz / 24-bit sample rate, uses a floating-point open architecture DSP, and operates with low latency for sound system precision
  • Integrated AmpLink connection uses standard CAT 5 cables to send up to 8 channels of low-latency, uncompressed digital audio to compatible Bose amplifiers
  • Bose ControlSpace Designer software enables a large set of signal processing modules such as automatic mic mixing, multiband graphic and parametric EQs, Bose loudspeaker libraries, signal generators, routers, mixers, AGCs, duckers, gates, compressors, source selectors, and delays

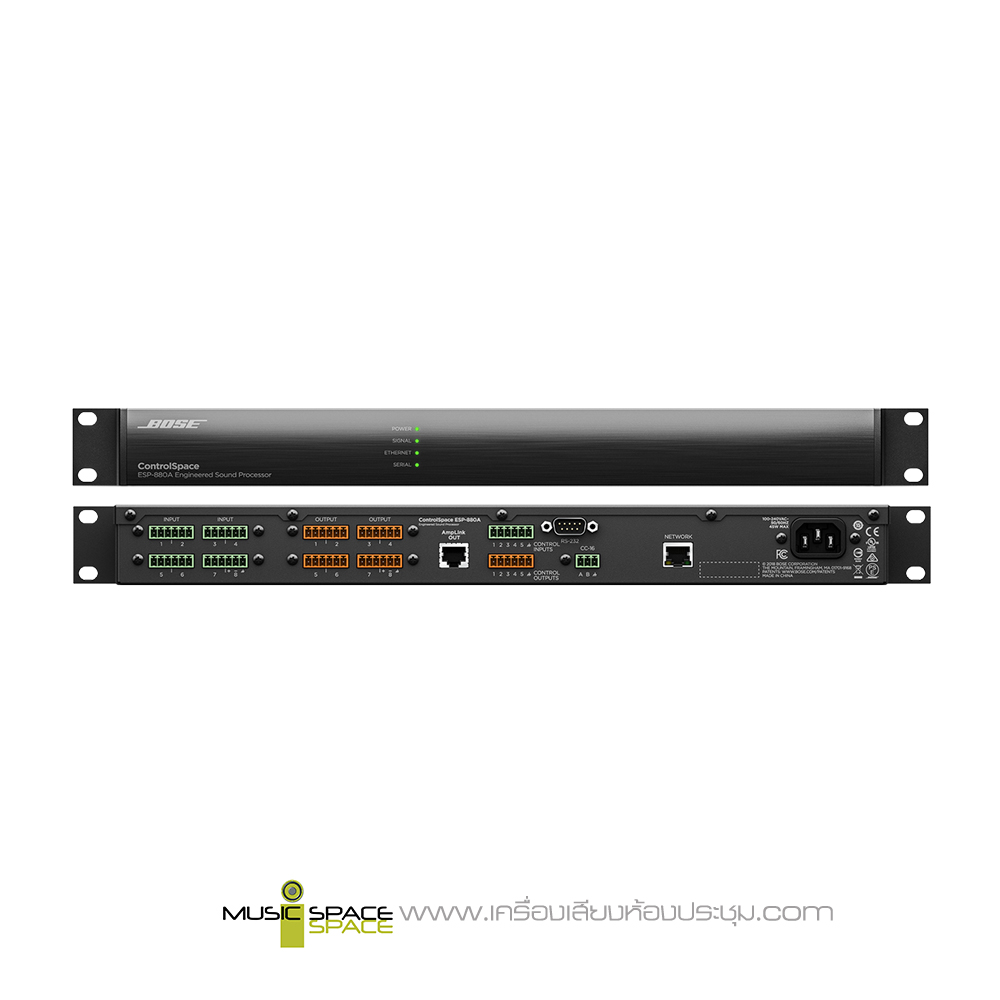

  • Front-panel RJ-45 Ethernet connection enables localized configuration and monitoring while enabling network passthrough with the rear-panel Dante network ports
  • A variety of control options—ControlSpace ESP products are compatible with the programmable Bose CC-64 and CC-16 controllers, ControlCenter zone controllers, and ControlSpace Remote clients
  • Supports industry-standard control systems using a comprehensive serial protocol through onboard RS-232 and Ethernet ports, with available drivers for AMX and Crestron-based systems
Category: Tag:

Specifications

DSP Section
Signal Processor/CPU: 32-Bit Fixed/Floating-Point DSP + ARM, 456 MHz
Maximum Calculation: 3.6 GIPS / 2.7 GFLOPS
Delay: 43 s
Audio Latency: 860 μs (Analog In to Analog Out)
A/D and D/A Converters: 24-Bit
Sample Rate: 48 kHz
Audio Performance
Frequency Response: 20 Hz to 20 kHz (+0.3 / -0.1 dB)
THD+N: <0.002% at +4 dBu (A-Weighted / 20 Hz to 20 kHz)
Channel Separation (Crosstalk): <-105 dB at +4 dBu Input and Output Level, 1 kHz
Dynamic Range: >115 dB A-Weighted 20 Hz to 20 kHz, Analog Through
Audio Input
Input Channels: 8 Analog (Balanced, Mic/Line Level)
Connectors, Input: 0.15″ / 3.81 mm Phoenix Contact, 6-Pin
Input Impedance: 12 Kilohms at 1 kHz (with or without Phantom Power Active)
Maximum Input Level: +24 dBu
Equivalent Input Noise: <-119 dBu (22 to 20 kHz, 150-Ohm Input, 64 dB Gain)
Phantom Power: +48 VDC, 10 mA, Selectable per Input
Pre-Gain Settings: 0/14/24/32/44/54/64 dB
Audio Output
Output Channels: 8 Analog (Balanced, Line Level), 8 AmpLink
Connectors, Output: 0.15″ / 3.81 mm Phoenix Contact, 6-Pin (Analog), AmpLink RJ-45
Output Impedance: 66 Ohms
Maximum Output Level: +24 dBu
Control Inputs
Inputs (Control): 5 Analog or Digital Inputs, 2 Kilohms Internal Pull-Up Resistor to 5 V, 0.15″ / 3.81 mm Phoenix Contact, 6-Pin
Analog Input Voltage Range: 0 to 3.3 V (Maximum 5 V)
Digital Input Voltage Range: 0 V to 3.3 V (Threshold Voltage = 1.6 V)
Control Output
Outputs (Control): 5 Digital Outputs, 0.15″ / 3.81 mm Phoenix Contact, 6-Pin
Output Voltage High: 8 V (Open Circuit), 2.5 V at 10 mA; Low: <1 V at 100 mA, Push-Pull
Output Current: 10 mA Source, 100 mA Sink (24 VDC Max External Supply Voltage)
Indicators & Controls
LED Status Indicators: Power/Status, Signal, Ethernet, Serial (RS-232 + CC-16)
Audio Signal Indication: Green (-60 to -20 dBFS), Yellow (-20 to -2 dBFS), Red (-2 to 0 dBFS)
General
PC Configuration Software: ControlSpace Designer Software
Network Control: Ethernet (RJ-45), 100 MB
Communications Ports: RS-232 (DB9M, DTE), Bose CC-16 (0.15″ / 3.81 mm Phoenix Contact, 3-Pin)
Operating Temperature
32 to 104°F / 0 to 40°C
Cooling
Active, Side Venting
Power
Mains Voltage: 85 to 264 VAC 50/60 Hz
AC Power Consumption: <37 VA Typical, Over All Mains Voltages
Mains Connector: IEC 60320-C14 (Inlet)
Power Dissipation: 22 W (75 BTU/Hr, 19 kCal/Hr)
Dimensions
1.7 x 19.0 x 8.5″ / 4.3 x 48.2 x 21.6 cm
Weight
5.8 lb / 2.6 kg

Downloads

ดาวน์โหลด Data Sheet BOSE ESP-880A
