Sale

ตู้ลำโพงติดผนัง JBL Control 126W Premium In-Wall Loudspeaker 6.5″

ตู้ลำโพงติดผนัง JBL Control 126W เป็นตู้แบบ 2-way installation speaker, ขนาดดอกลำโพง 6.5 นิ้ว durable polymer-coated aluminum cone woofer, เสียงแหลมขนาด 1″ titanium dome tweeter, ทนกำลังขับ 100 วัตต์ program, 200 วัตต์ peak, Impedance 8 Ohms

ราคาไม่รวมภาษีมูลค่าเพิ่ม….เป็นราคาตู้ละ…

฿11,200.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Category: Tag:
Share This:

Product Description

JBL Control 126W 6.5″ 2-Way 100W In-Wall Installation Speaker

ตู้ลำโพงติดผนัง JBL Control 126W เป็นตู้แบบ 2-way installation speaker, ขนาดดอกลำโพง 6.5 นิ้ว durable polymer-coated aluminum cone woofer, เสียงแหลมขนาด 1″ titanium dome tweeter, ทนกำลังขับ 100 วัตต์ program, 200 วัตต์ peak, Impedance 8 Ohms

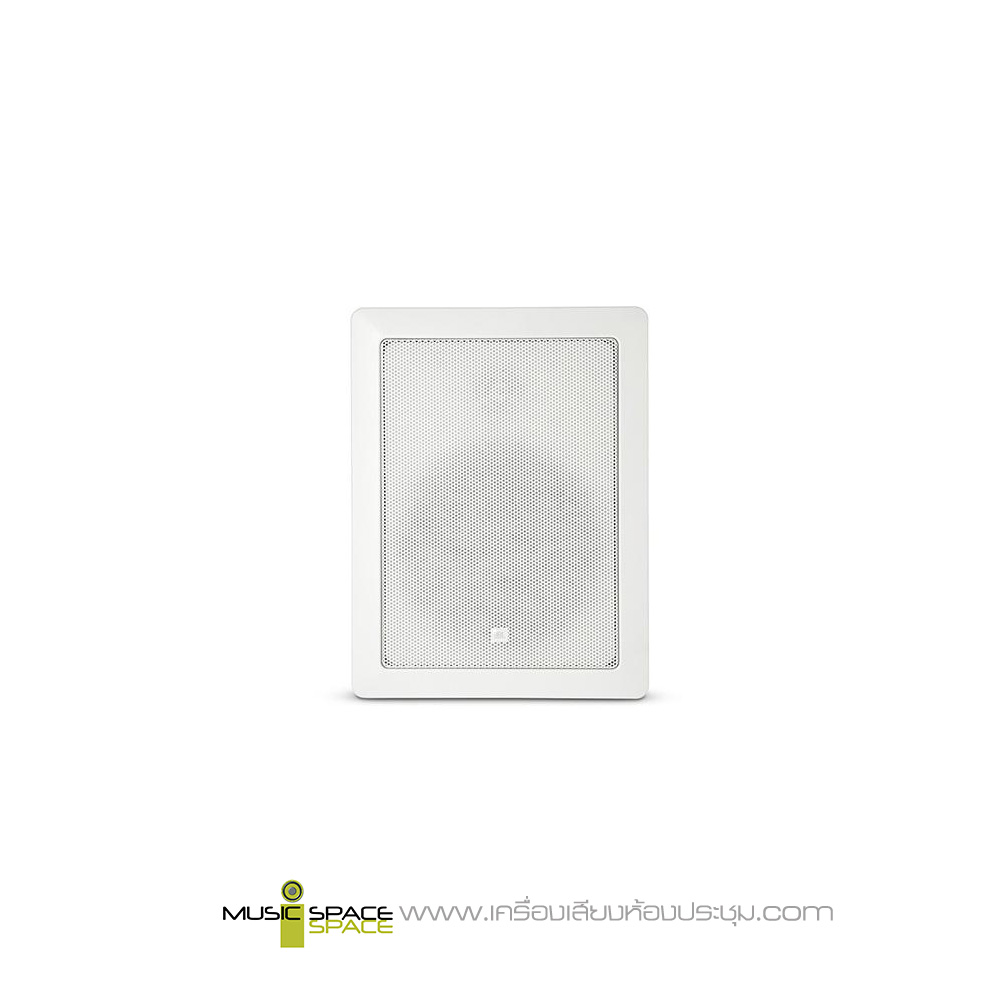

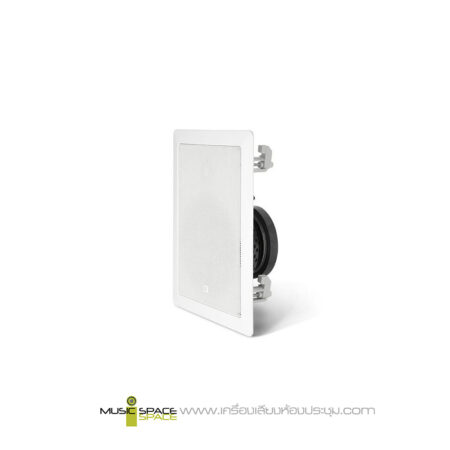

The JBL Control 126W is a 2-way in-wall speaker with a 100-watt program power handling capacity and a discreet, high-tech appearance, designed for enhanced music reproduction applications in a variety of venues ranging from boardrooms to bistros.

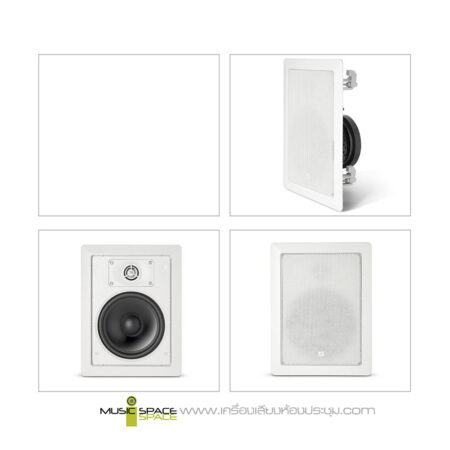

The Control 126W is equipped with an aimable 1″ titanium dome tweeter and a potent 6.5″ aluminum cone woofer, and features an extended frequency reproduction, waveguide technology, and a high- and low-pass filter-driven crossover network, along with paintable enclosure baffles and grille for matching the locale decor.

Features:

  • In-wall 2-way installation speaker with paintable baffles and grille and extended frequency reproduction
  • Foreground music solution with discreet, minimized visual impact for boardroom, reception areas, restaurants, airports and retail applications
  • 100-watt program, 200-watt peak power handling performance
  • 5″ durable polymer-coated aluminum cone woofer with LF reproduction to 38Hz
  • 1″ titanium dome tweeter on low-diffraction swivel mount with built-in proprietary EOS(TM) waveguide technology for low distortion, smooth HF reproduction
  • Aimable tweeter with -10° positioning adjustment
  • High-slope 3rd order crossover network with high- and low-pass filtering to tweeter and woofer
  • Fits in wallspace of conventional stud-wall existing or new construction facilities
  • Optional custom rough-in frame for new construction installations
Category: Tag:

Specifications

Active or Passive Passive
Frequency Response 38 Hz – 20 kHz, -10dB
Power Capacity 100 Watts, program
200 Watts, peak
Maximum Sound Pressure Level (SPL) Not Specified by Manufacturer
Nominal Sensitivity 88dB SPL, 1W @ 1m
Impedance 8 Ohms
Crossover 3rd order, 18dB/Octave (low-pass to woofer)
3rd order, 18dB/Octave (high-pass to tweeter)
Shielded No
Low Frequency Driver 6.5″ polymer-coated aluminum cone, butyl rubber surround
High Frequency Driver 1″ Titanium Dome with cloth suspension on low-diffraction swivel-mount
Enclosure Material Plastic with paintable baffles and Grille
Input Connections Screw-down Euroblock connector
Environmental Not Applicable, Indoor only
Dimensions 11 x 8.5 x 4.1″ (280 x 215 x 105mm)
3.8″ (99mm) front of wall to back of speaker
Weight 4.5 lb (2.1 kg)
Specialties In-wall Installation Speaker
Extended Frequency Reproduction
ABS Paintable Baffles and Grille
Packaging Info
Box Dimensions (LxWxH) 12.2 x 10.0 x 9.0″

Downloads

ดาวน์โหลด Specification JBL Control 126W
