ลำโพงติดฝ้าเพดาน JBL Control 16C/T Ceiling Loudspeakers 6.5″

Product Description

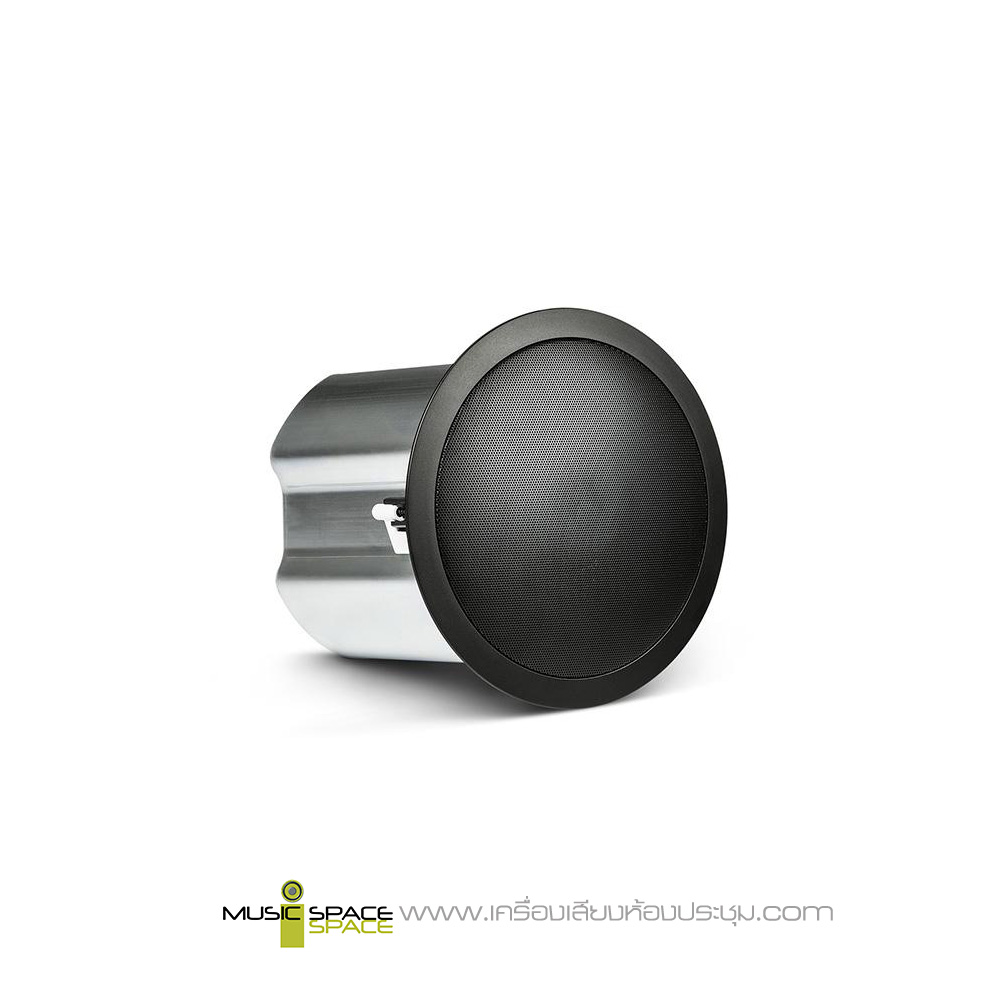

JBL Control 16C/T Two-Way 6.5″ Coaxial Ceiling Loudspeaker

ลำโพงติดฝ้าเพดาน JBL Control 16C/T เป็นลำโพงแบบ 2-Way มีขนาดดอดลำโพง 6.5 นิ้ว High output driver เสียงแหลม 0.75″ soft-dome tweeter, ทนกำลังขับ 50 Watts at 8Ω nominal setting, 30W multi-tap at 70V/100V, Dual conduit/cable clamps, มี2สี ดำและขาว

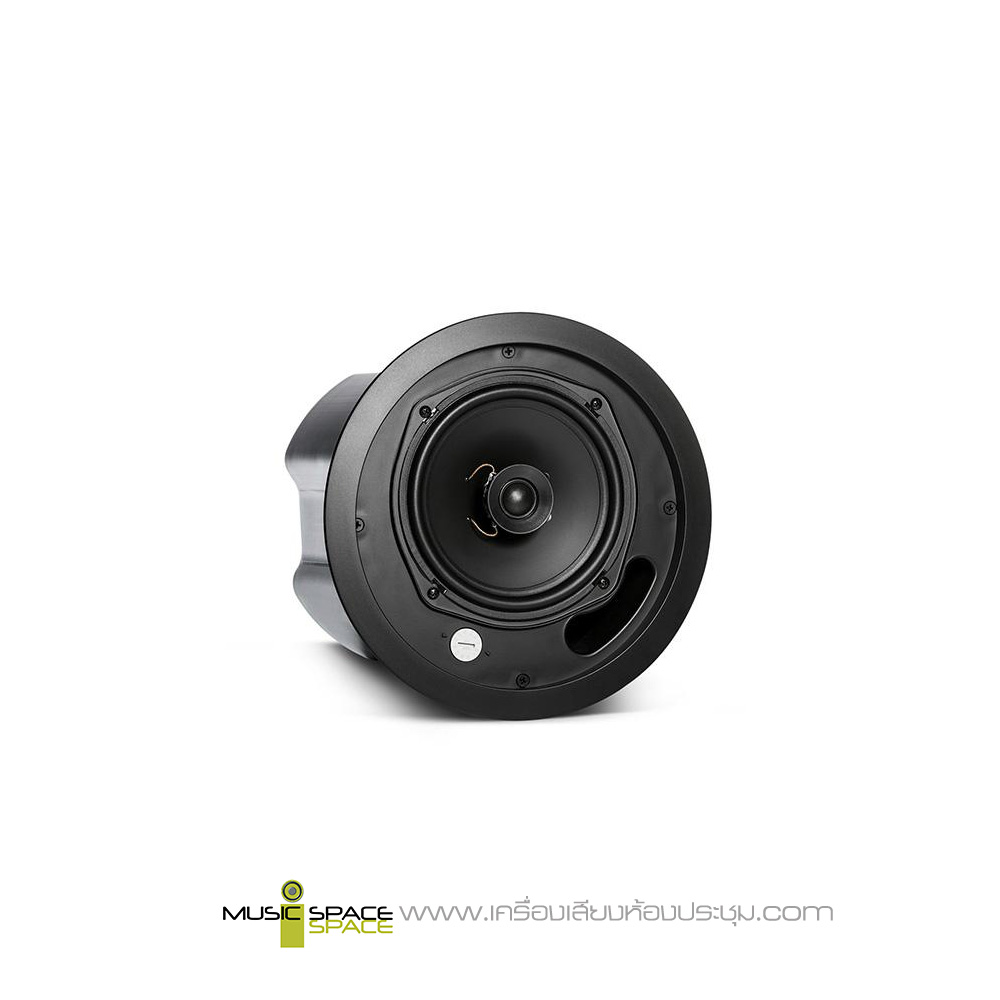

JBL Control 16C/T Speakers are designed to suit a variety of spaces, such as cafes, places of business, airport lounges, reception areas, court rooms, and more. They feature a 2-way coaxial design, giving you a 6.5″ cone driver and a 0.75″ soft-dome, liquid-cooled tweeter. With their coaxial construction, these speakers deliver a more consistent sound off-axis, which is a benefit for environments in which indirect listening takes place.

The drivers themselves are designed using a high-temperature anodized aluminum voice coil former and high-temperature voice coil to ensure a reliable performance throughout years of continuous use.

Butyl rubber encloses the drivers, offering further durability, as well as sonic damping. The cone itself is resistant to both water and humidity. Thanks to a FEA-optimized motor construction, the Control 16C/T achieves a smooth frequency response.

Installation is made possible via the removable locking connector, within which you’ll find screw terminals for wire termination, as well as loop-thru points for furthering signal to more speakers.

Dual conduit clamps employed to provide strain relief to both the input and loop-output cables. You can use the speaker to handle 8-Ohm loads, or as part of a 70V / 100V distributed loudspeaker system with a 30W multi-tap transformer.

These speakers ship with two tile rail supports, as well as a C-ring support backing plate, cutout template, paint shield, and grille. On the top of the speaker you’ll find a safety seismic attachment ring.

Features:

• 165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround
• 19 mm (0.75 in) soft-dome liquid-cooled tweeter

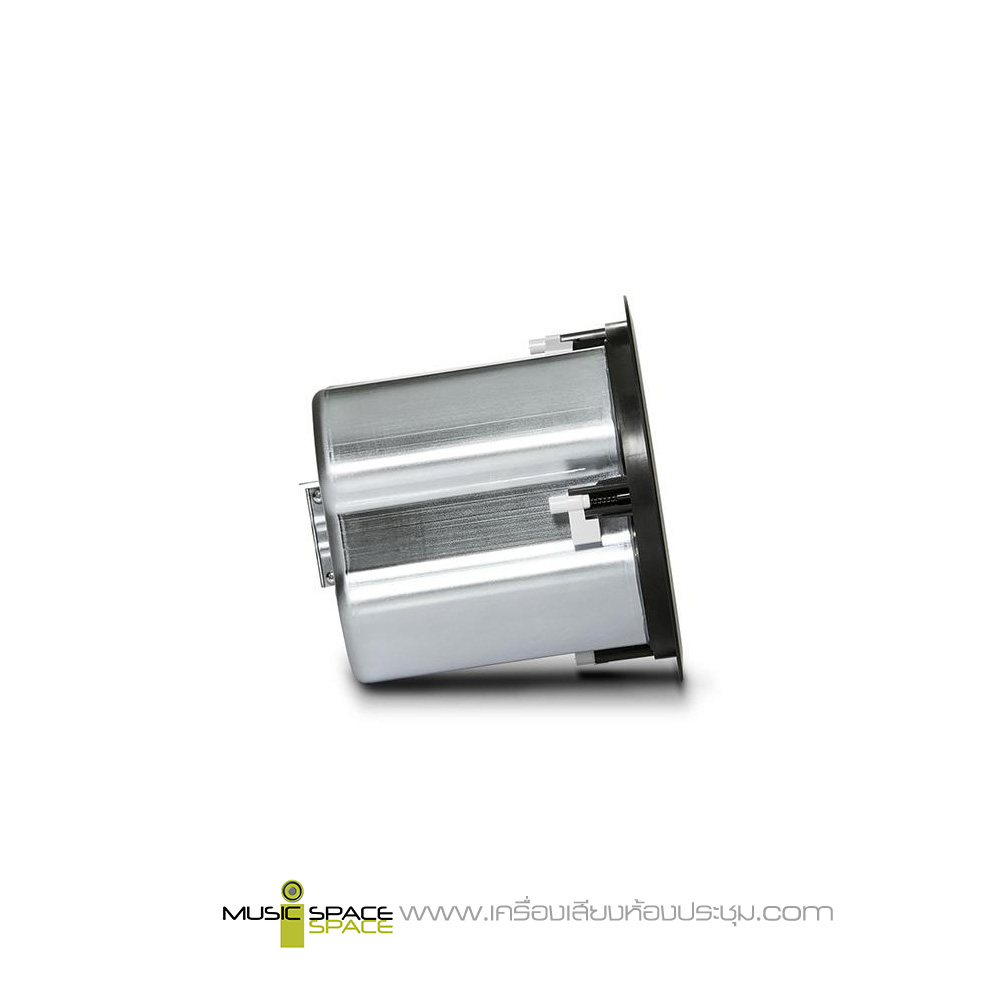

• Blind-mount backcan for quick and easy install
• Dual conduit/cable clamps
• Combined 70V/100V and low impedance direct operation
• 50 Watts at 8Ω nominal setting
• 30W multi-tap at 70V/100V
• 62 Hz – 20 kHz bandwidth with wide 110° coverage
• High 91 dB sensitivity for high maximum SPL
• White or black (-BK)

Specifications

Frequency Range	62 Hz to 20 kHz at -10 dB
Frequency Response	96 Hz to 15 kHz at ±3 dB
Power Capacity	At Lo-Z: 100 W continuous program power 50 W continuous pink noiseNote: Continuous Pink Noise Rating is IEC-shaped pink noise with a 6 dB crest factor for 100 hours continuously. Continuous Program Power is a conservative expression of the system’s ability to handle normal speech and music program material, and is defined as 3 dB above the Continuous Pink Noise Rating.
Nominal Sensitivity	91 dB
Nominal Coverage Angle	110° conical coverage
Directivity	Directivity Factor (Q): 7.8 Directivity Index (DI): 8.2 dB
Maximum SPL	Rated: 108 dB @ 3.3′ / 1.0 m average, 116 dB peak
Nominal Impedance	8 Ohms (in direct/bypass 8-Ohm setting)
Transformer Taps	30 W, 15 W, 7.5 W @ 70 or 100 V (plus 3.8 W @ 70 V only)
Crossover	Network: 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
Transducer	LF Driver: 6.5″ / 165.1 mm with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high-temperature voice coil HF Driver: 0.75″ / 19.00 mm, highly damped treated-silk dome, Kapton voice coil, liquid cooling, wide dispersion waveguide
Input Connector	Removable locking 4-pin connector with screw-down terminals. Maximum wire size 12 AWG (2.5 mm2)
Wiring	Connector: Pin 1 = + In Pin 2 = – In Pin 3 = + Loop Thru Pin 4 = – Loop Thru
Strain Relief	For 2 cables or 2 flex conduits via coupled clamping mechanism
Materials	ABS baffle with UL94-V0 and UL94-5VB flame class fire rating Zinc-plated steel backcan
Safety Agency Approvals	UL1480, UL2043, NFPA90, and NFPA70; S7232/UL Listed Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant Baffle meets UL94-V0 and UL94-5VB flammability rating In accordance with IEC60849/EN60849 systems
Attachment	Safety Seismic: One point, top surface
Ceiling Cutout Size	Circular cutout with 8.8″ / 223.5 mm diameter (cardboard cutout template included)
Ceiling Thickness	Up to 1.5″ / 38.1 mm with stock dog-ears MTC-TCD thick-ceiling dog-ears sold separately for up to 2.4″ / 60.9 mm ceiling thicknesses
Dimensions (Ø x D)	Each Speaker: 10.0 x 8.8″ / 253 x 225.0 mm Depth measured from back of the baffle
Weight	Each Speaker: 7.4 lb / 3.4 kg



Downloads

ดาวน์โหลด Specification JBL Control 16C/T
