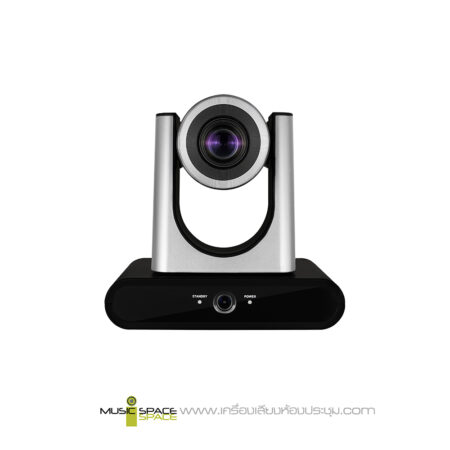

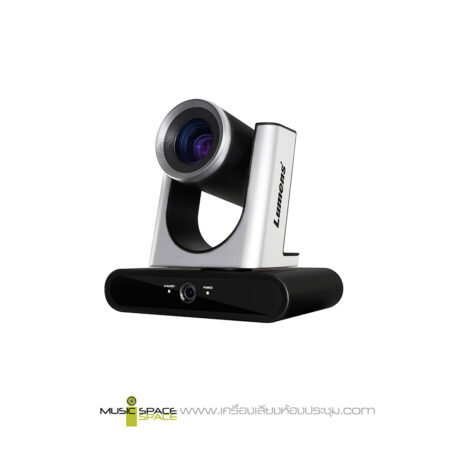

กล้องติดตามอัตโนมัติ Lumens VC-TR40 AI Auto-Tracking Camera

กล้อง Auto-Tracking ติดตามอัตโนมัติสำหรับการประชุม Lumens VC-TR40, Dual 1/2.8″ 2MP CMOS Sensors, Panoramic and PTZ Camera, 1080p via HDMI, 3G-SDI, USB & IP Output, AI Auto-Tracking, Face Recognition

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿79,000.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Category: Tag:
Share This:

Product Description

Lumens VC-TR40 Dual-Lens AI Auto-Tracking Full HD Camera

กล้อง Auto-Tracking ติดตามอัตโนมัติสำหรับการประชุม Lumens VC-TR40, Dual 1/2.8″ 2MP CMOS Sensors, Panoramic and PTZ Camera, 1080p via HDMI, 3G-SDI, USB & IP Output, AI Auto-Tracking, Face Recognition

VC-TR40 Dual-Lens AI Auto-Tracking Full HD Camera from Lumens boasts both PTZ and panoramic camera functionality in a single camera for conference space or lecture hall applications.

AI-tracking and framing modes with facial recognition technology make automatic adjustments to better bridge the gap between in-person and remote participants.

Simultaneously view the entire view with the 720p panoramic lens with 111° horizontal FOV and the individual presenter with the 1080p PTZ lens with 58.7° horizontal FOV.

The camera can output up to 1080p video via HDMI, 3G-SDI, USB-B, and IP ports for flexible connectivity with your preexisting configuration. Both lenses feature 1/2.8″ 2MP CMOS sensors, 20x optical zoom, and 12x digital zoom.

A 3.5mm audio line input can add a microphone to the camera’s interface. Various forms of control make remote adjustment intuitive and efficient. Power can be delivered via the DC input port or PoE via the Ethernet port.

Features:

  • AI-Powered Human Face Recognition
  • 3 Tracking modes and 2 Framing modes
  • Mount upright or inverted
  • HDMI, Ethernet, 3G-SDI and USB simultaneous output
  • 1080p 60fps with 20x Optical Zoom
Category: Tag:

Specifications

Imaging
Image Sensor 1/2.8″-Type CMOS
Sensor Resolution Effective: 2 Megapixel
Built-In ND Filter None
Focus Control Autofocus
Manual Focus
Exposure Control
Shutter Type Electronic Rolling Shutter
Shutter Speed 1/10000 to 1/25 Second
Gain 0 to 30 dB
Signal-to-Noise Ratio 50 dB
Minimum Illumination 1 Lux
Flip / Mirror Support Image Flip, Mirror (Vertical)
White Balance 1700 to 10,000K
Presets: ATW, Auto, Indoors, Manual, One Push, Outdoors
Lens
Focal Length 4.9 to 94mm
Optical Zoom Ratio 20x
Max Digital Zoom 12x
Field of View Horizontal: 58.7°
Vertical: 33°
Diagonal: 67.3°
Maximum Aperture f/1.6 to 2.8
Minimum Focus Distance 19.7″ / 50.0 cm
Video Capture
External Recording Modes SDI/BNC / HDMI / USB
1920 x 1080p at 25/30.00/50/60.00 fps
1280 x 720 at 50/60.00 fps
Embedded Audio HDMI/LAN (RJ45)/SDI/USB
Audio Recording 48 kHz AAC Audio
Broadcast Output NTSC/PAL
IP Streaming H.264, RTMP, RTMPS, RTSP, SRT
1920 x 1080 at 60p (2.0 to 20.00 Mb/s)
1280 x 720 (2.0 to 20.00 Mb/s)
Control
Presets 256
Move Speed Pan: 0.2 to 120°/sec
Tilt: 0.2 to 80°/sec
Movement Range Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)
Supported Control Protocols Pelco-D
RS-232
VISCA
Interface
Video I/O 1 x HDMI Output
1 x BNC (3G-SDI) Output
1 x USB-B 3.0 / 3.1/3.2 Gen 1 Input/Output
1 x RJ45 Input/Output
Other I/O 1 x DIN 8-Pin (RS-232) Input
1 x DIN 8-Pin (RS-232) Output
Power
PoE Support PoE 802.3af
Power I/O 1 x Barrel (12VDC) Input
Power Consumption PoE: 11 W
Power Supply: 10 W
General
Mounting 1 x 1/4″-20 Female for Tripod
Certifications FCC Part 15 Class A, ICES-003, EN55032
*as per Manufacturer
Security Lock Support Kensington Lock Slot
Dimensions (W x H x D) 7.5 x 7.3 x 5.4″ / 190 x 185 x 138 mm
Weight 3.3 lb / 1.5 kg

Downloads

ดาวน์โหลด Data Sheet Lumens VC-TR40
