จอมัลติมีเดียกระดานอัจฉริยะ 86″ Newline TT-8622Q Interactive Display

Product Description

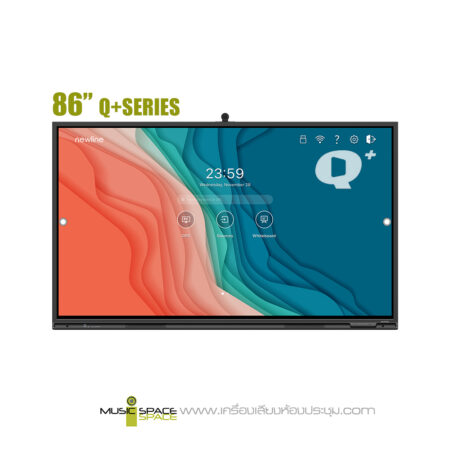

Newline Q+ Series TT-8622Q 86″ 4K Interactive Multi-Touch LED Display

จอแสดงผล Interactive หน้าจอสัมผัสอัจฉริยะพร้อมกล้องและไมโครโฟนแบบ Array, Newline Q+ Series TT-8622Q ขนาดจอ 86 นิ้ว, 4K/LED/3840 x 2160 pixels/4000:1, Viewing Angle 178°, Upper Front 8-Mic Array,  Camera Module 4K, Operating System Android 11

Newline Q+Series is high-end interactive display carries every experience you could want in your workspace; faster, enhanced sound, a superior touch and writing experience due to optical bonding, a modular camera and built-in microphone making Q+ a true hybrid solution.

Plug And Play All The Way Streaming your setup with fast and easy USB-C connection. Thanks to plug & play USB-C, your entire setup process requires plugging in one cable which transports data, audio, video and power.

Connect and disconnect immediately or switch devices without any hassle just plug in and get straight to teaching. No more delays, troubleshooting, or fidgety kids

Proximity Sensor For An Eco-Friendly Workspace Equipped with Proximity Sensor, the Newline interactive displays will power on/off automatically based on human presence in the room.

The extra wide viewing angle ensures all students in the classroom can benefit from the crystalclear 4K image and vibrant colours. Q+ has it all…

Features:

• Active Screen Size 86″
• 4K/LED/3840 x 2160 pixels/4000:1
• Response Time 8ms
• Viewing Angle 178°
• Display Life Time 50,000 Hours
• LCD Brightness 400 cd/m²
• Anti-Glare/Anti-Fingerprint/Anti-Bacterial Glass/8H/Optical Bonding
• Touch Type Infrared Touch/20 Points
• Writing Tools Stylus or Finger
• Upper Front 8-Mic Array
• Camera Module 4K@30Hz/UHD/View Angle 120°/ Tile Range 15°
• Bottom Front Speaker: 20W*2
• Connectivity Wi-Fi Module/HDMI/USB3.0 Type-C/USB 3.0 Type A/USB
• Type-B/Mic In/DisplayPort 1.2/RS232/RJ45/OPS Slot/ S/SPDIF
• Wifi Module WIFI 6 + BT 5.2
• Operating System Android 11
• 8GB RAM/64GB ROM/64 GB External Memory
• Newline Cast/Broadcast/Display MGT/Newline App Store

Specifications

DISPLAY
Active Screen Size	65”
Backlight (new OD28 BLM)	DLED
Display Area	1895 x 1066mm
Display Ratio	16:9
Resolution	3840 x 2160 (4K)
Colors	1.07Billion ( 10 bit color )
Brightness	450 cd/m²
Contrast Ratio	15000:1
Response Time	4ms
Viewing Angle	H = 178, V = 178 typ.
Display Life Time (MTBF)	≥50000 hours
ELECTRICAL PARAMETER
Working Voltage	AC100-240V Max 5.7A
Power Consumption(Eco mode)	<270W
Power Consumption(Standby mode)	<0.5W
TOUCH TECHNOLOGY
Touch Solution	Advanced IR
Glass Surface Technology	“Anti-Glare, Anti-Fingerprint, Antimicrobial Tempered Glass”
Touch Surface	Optical Bonding
Transparency	88%±3
Haze	4~8%
Touch Surface Hardness	H3
Touch Points	20 Point Multitouch
Touch Screen Writing Tools	Stylus or Finger
Positioning Accuracy	±1
FULL FREQUENCY SPEAKER
Speaker Position	bottom front
Speaker Rated Impedance	6Ω
Speaker Freq.Response	250Hz-20KHz SPL -10dB
Output S.P.L.	80±3dB
Speaker Max.Power Output	20Wx2
WOOFER
Speaker Position	back center
Speaker Rated Impedance	4Ω
Speaker Freq.Response	20Hz-20KHz SPL -10dB
Output S.P.L.	77±2dB
Speaker Max.Power Output	15Wx1
TRANSPORTATION / STORAGE
Storage Temperature/Humidity	-20~60°C & 0~90%RH (non-condensing)
Working Temperature/Humidity	0~40°C & 20~80%RH (non-condensing)
Installation Method (optional)	wall-mounted / mobile stand
Outline Dimension(without wall mount bracket thickness)	1981 x 1190 x 116 mm
Packing Dimension	2119 x 250 x 1290 mm
Net Weight	65 kg
Gross Weight	82.5 kg
MICROPHONE
Mic Position	8-mic array – upper front
Distance	8m
SMART SYSTEM
SoC Chipset	Amlogic 311D2
RAM	8GB
Flash Memory	64GB
Extra Memory (Built in)	32GB or 64GB (TF Card)
Android Version	Android 11
Multimedia File Formats Support	Image: JPEG, BMP, PNG Video: MPEG1, MPEG2, MPEG4, SorensonH.263, H.263,H.264,HEVC/H.265, MVC,AVS,AVS+,WMV3,VC1, Motion JPEG,VP8,VP9, RV30/RV40 Audio: MPEG1/2 @LAYER1; @LAYER2;@LAYER3,EAC3, ACC-LC,HEAAC,VORBIS, LPCM,IMA-ADPCM, MS-ADPCM,G711 A/MU-LAW, LBR(COOK),FLAC”
Proximity Sensor	2
Camera Module	Optional
FRONT I/O
USB Type-C (PD 100W)	1
HDMI IN 2.0	1
USB Type-B (Touch)	1
USB 3.0 Type-A	1
Microphone In	1
REAR I/O
HDMI IN 2.0	2
DisplayPort 1.2	1
USB Type-B (Touch)	3
USB 3.0 Type-C (no PD)	1
USB 3.0 Type-A	2
USB 3.0 Type-A to Android	1
HDMI OUT 2.0	1
RS232	1
RJ45 (Gigabit)	IN*1 & OUT*1
OPS Slot	1
SPDIF	1
Audio Line Out	1
WIFI Module Slot (wifi module is standard for Q+ series)	1
SDM-S Slot	Yes
CAMERA MODULE
Camera Resolution	4K@ 30 Hz /UHD
Field of View	120° FOV Lenses
RGB Camera	3840 x 2160/30fps
Camera Tile Range	15°
WIFI MODULE
Parameters	wifi 6 +BT 5.2
