เครื่องส่งสัญญาณบอดี้แพ็คไร้สาย SHURE AD1-P55 Bodypack Transmitter

เครื่องส่งสัญญาณบอดี้แพ็คไร้สาย SHURE Axient AD1 Beltpack Transmitter for Shure Axient Digital Wireless Systems, Automatic Gain Adjustment, ShurePlus Channels app offers convenient mobile monitoring and control for iOS devices

ราคานี้เป็นราคาเฉพาะตัว Bodypack…ไม่รวมอุปกรณ์อื่นๆนะคะ…..

฿32,900.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Share This:

Product Description

SHURE Axient AD1 Bodypack Transmitter Digital Wireless (P55: 694-703 MHz,748-758 MHz, 803-806 MHz)

เครื่องส่งสัญญาณบอดี้แพ็คไร้สาย SHURE Axient AD1 Beltpack Transmitter for Shure Axient Digital Wireless Systems, Automatic Gain Adjustment, ShurePlus Channels app offers convenient mobile monitoring and control for iOS devices

The Shure AD1 Axient beltpack transmitter sets a new standard for advanced features and precision performance in the wireless realm. Powered by AA or Li-ion rechargeable batteries, the AD1 Axient transmitter delivers up to 9.5 hours of world-class performance.

As part of the amazingly powerful Axient wireless series, the AD1 transmitter excels in challenging RF environments, with up to 80MHz tuning range and switchable power levels to extend battery life or increase signal strength. With a rugged metal casing, external contacts for docked charging, and even capable of encryption.

Features:

  • Frequency compatible P55 (694-703 MHz,748-758 MHz, 803-806 MHz ) สามารถใช้งานพร้อมกันได้ 58 ความถี่
  • High Density mode P55 (694-703 MHz,748-758 MHz, 803-806 MHz ) สามารถใช้งานพร้อมกันได้ 160 ความถี่
  • Two transmission modes Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
  • Encryption-enabled, secure transmission

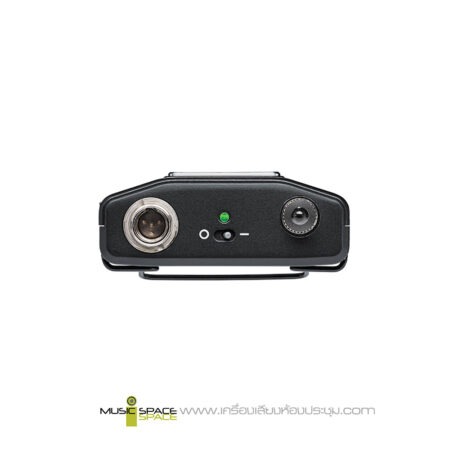

  • Two connector options TA4 and LEMO3
  • Detachable ¼-wave antenna
  • AA or SB900A lithium-ion rechargeable batteries for convenient power options
  • External contacts for docked charging

Specifications

Wireless Technology Digital UHF
RF Frequency Band P55: 694-703 MHz,748-758 MHz, 803-806 MHz
RF Bandwidth 146 MHz
Frequency Step Size 25 kHz
Max Operating Range 328.1′ / 100 m (Line of Sight)
Latency 2 to 2.9 ms (Selectable)
Encryption AES 256
Modulation Proprietary
Transmitter
Transmitter Type Bodypack
RF Output Power 2 / 10 / 35 mW
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Pad 12 dB
Muting Off/On Switch
Audio Input Level 8.5 dBV / 7.5 Vpp (Pad Off)
20.5 dBV / 30 Vpp (Pad On)
Gain Range -12 to +21 dB (1 dB Steps)
Sync Method IR
Antenna 1 x 1/4 Wave Flexible Whip, Detachable (Beltpack)
Power Requirements Battery
Battery Type 2 x AA (Included, Replaceable)
1 x Rechargeable (Not Included, Replaceable)
Approx. Battery Life 8 Hours (Alkaline)
Med.:
9 Hours (Lithium Rechargeable)
Display & Indicators 1 x Backlit LCD (Battery Status, Channel, Group, Signal Strength)
Housing Aluminum
Operating Temperature 0 to 122°F / -17 to 50°C
Storage Temperature -20 to 165°F / -28 to 73°C
Dimensions 2.6 x 3.4 x 0.9″ / 66 x 86 x 23 mm (without Antennas)
Weight 5.5 oz / 155 g (without Batteries)

Downloads

ดาวน์โหลด Data Sheet Shure Axient AD1

ดาวน์โหลด Brochure Shure Axient Digital Wireless
