ไมโครโฟนไร้สาย SHURE GLXD24RA/SM58-Z2 Wireless System

ชุดไมค์ลอยแบบมือถือชนิดไมค์เดี่ยว Shure GLXD24/SM58 ในระบบดิจิตอล 2.4 GHz ISM Band ประกอบด้วย เครื่องรับสัญญาณไมค์ GLXD4 receiver 1 ตัว, เครื่องส่งสัญญาณ GLXD2 Transmitter with SM58 capsule (ไมโครโฟนไร้สาย SHURE 1 ตัว หัวไมค์เป็นรุ่น SM58)

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿24,900.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Share This:

Product Description

Shure GLXD24RA/SM58 Handheld Wireless System (Z2 Band: 2400 – 2483.5 MHz)

ชุดไมค์ลอยแบบมือถือชนิดไมค์เดี่ยว Shure GLXD24/SM58 ในระบบดิจิตอล 2.4 GHz ISM Band ประกอบด้วย เครื่องรับสัญญาณไมค์ GLXD4 receiver 1 ตัว, เครื่องส่งสัญญาณ GLXD2 Transmitter with SM58 capsule (ไมโครโฟนไร้สาย SHURE 1 ตัว หัวไมค์เป็นรุ่น SM58)

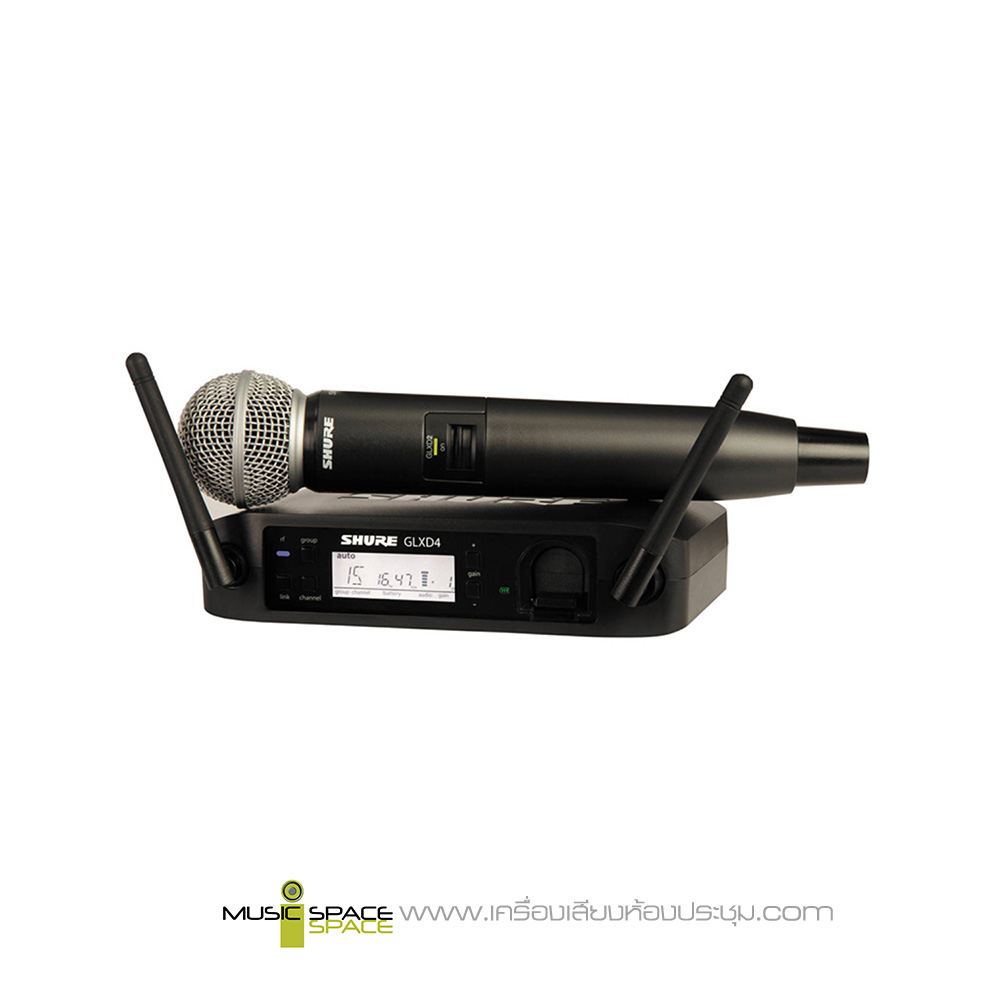

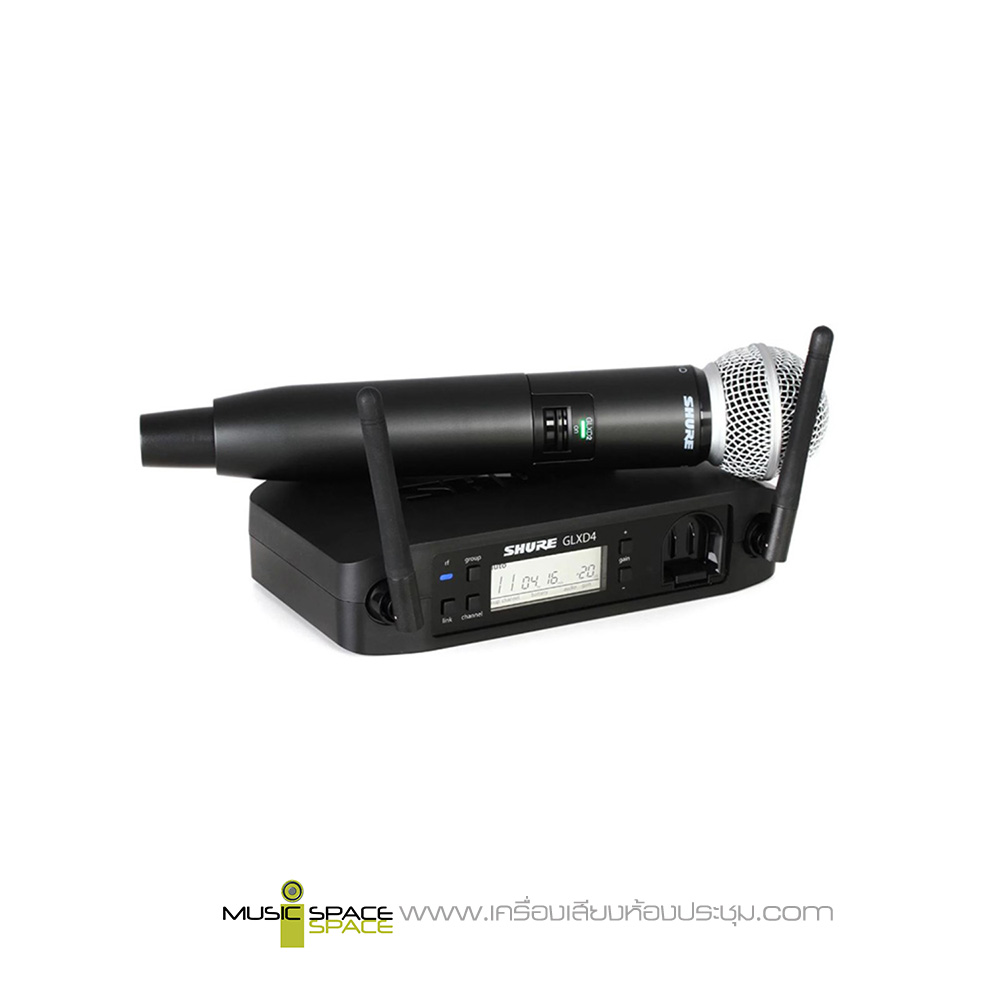

The GLXD24/SM58 Handheld Wireless System from Shure includes a GLXD4 wireless receiver and a GLXD2 handheld transmitter with an SM58 microphone element. The system operates on the 2.4GHz ISM band in the Z2 frequency band between 2400 and 2483.5MHz.

Both the GLXD2 transmitter and the GLXD4 receiver feature Shure’s LINKFREQ automatic frequency management that allows them to scan for the clearest frequency available and automatically link to each other without any setup required from you besides turning both units on.

With their continuous interference monitoring, both the transmitter and receiver automatically switch to the clearest frequencies available to avoid interference and dropouts.

The GLXD2 includes a rechargeable battery pack that provides up to 16 hours of operation on a full charge. It can be charged right in the GLXD4 receiver thanks to its integrated transmitter battery charging station. The system has a 200′ range of operation and can be used with 7 other GLX-D systems simultaneously.

Features:

  • Globally unlicensed 2.4GHz frequency band allows operation of up to 8 compatible systems
  • LINKFREQ intelligent frequency management quickly identifies the best open channels
  • Bidirectional communication lets the transmitter automatically follow receiver frequency change
  • Continuous interference monitoring and automatic frequency switching eliminates signal interruptions
  • Transmitter automatically links to receiver for seamless frequency changing
  • Up to 16 hours of continuous use with Shure lithium-ion rechargeable batteries
  • Transmission radius up to 200 feet
  • GLXD4 wireless receiver

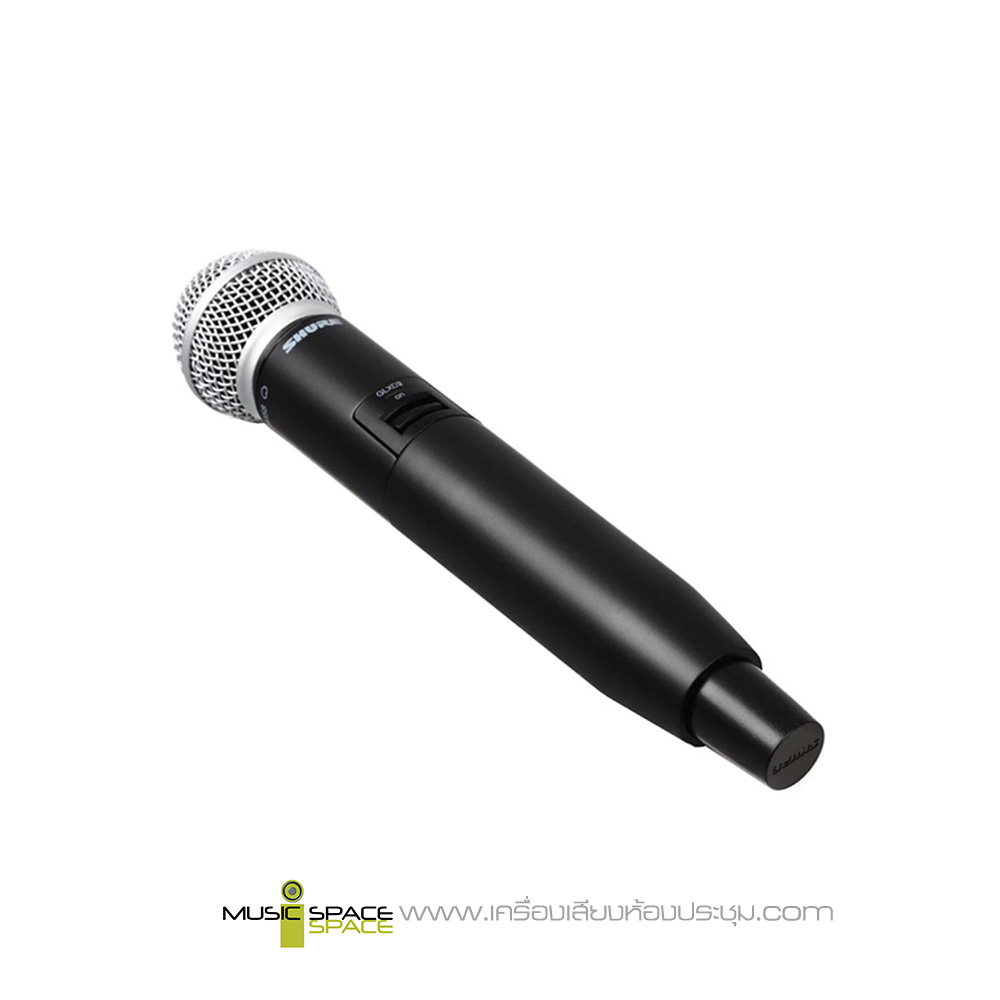

  • GLXD2/SM58 handheld transmitter with integrated SM58 cardioid dynamic microphone capsule
  • SB902 rechargeable lithium-ion battery; USB charge cable
  • Microphone clip and padded zipper case

Specifications

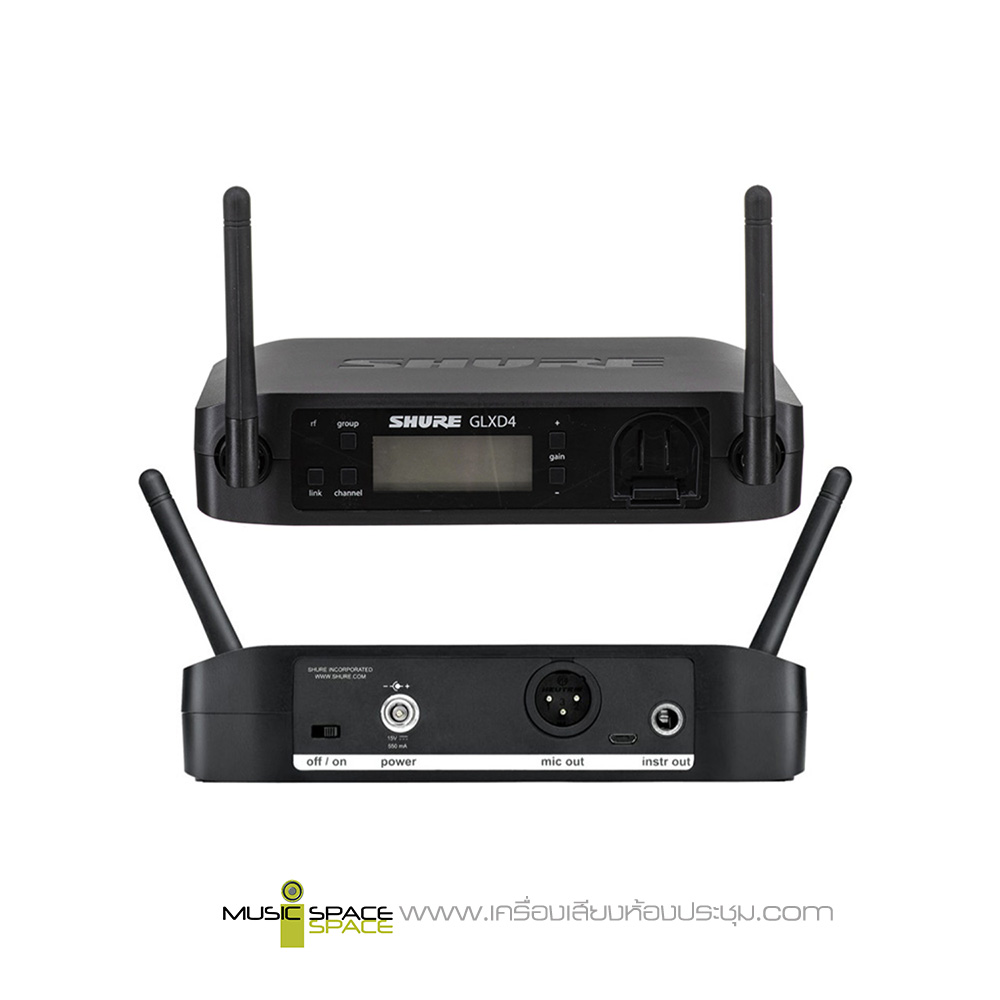

GLXD4 Digital Wireless Receiver (Z2 Band: 2400 – 2483.5 MHz)
Outputs 1x XLR Output
1x 1/4″ (6.35 mm) Output
Output Impedance XLR: 100 Ω
1/4″: 100 Ω, 50 Ω unbalanced
Maximum Audio Output Level Analog XLR: 1 dBV (into 600 Ω load)
1/4″: 8.5 dBV (into 3 kΩ load)
Tuning Frequency Range 2400 to 2483.5 MHz
Range of Operation 200′ (60 m) (typical, depends on RF signal absorption, reflection, and interference)
Transmit Mode Frequency Hopping
Frequency Response 20 Hz to 20 kHz
Dynamic Range 120 dB, A-weighted
RF Sensitivity -88 dBm, typical
Total Harmonic Distortion 0.2%, typical
RF Output 10 mW E.I.R.P., maximum
Operating Temperature Range 0° to 135°F (-18° to 57°C)
Storage Temperature Range -20° to 165°F (-29° to 74°C)
Pin Configuration XLR: 1= ground, 2= hot, 3=cold
1/4″: Tip= audio, ring= no audio, sleeve= ground
Antenna Impedance: 50 Ω
Type: 1/2 wave sleeve dipole, non-removable
Max Input Level: -20 dBm
Power Requirements 14 to 18 V DC (tip positive with respect to ring), 550 mA
Spurious Rejection >35 dB, typical
Gain Adjustment Range -20 to 40 dB in 1 dB steps
Phantom Power Protection Yes
Housing Molded plastic
Dimensions (HxWxD) 1.6 x 7.2 x 4.6″ (40 x 183 x 117 mm)
Weight 10.1 oz (286 g)
]GLXD2 Handheld Transmitter with SM58 Microphone Element (Z2 Band: 2400 – 2483.5 MHz)
Transmitter
RF Power Output 10 mW E.I.R.P, maximum
Maximum Input Level 147 dB SPL
Power Requirement 3.7 V Rechargeable Li-Ion
Housing Molded plastic
Dimensions Body Length: 9.9″ (252 mm)
Body Width: 1.5″ (37 mm)
Capsule Width: 2″ (51 mm)
Weight 9.4 oz (267 g), without batteries
Microphone
Type Dynamic (Moving Coil)
Frequency Response 50 Hz to 15 kHz
Polar Pattern Cardioid, rotationally symmetrical about microphone axis, uniform with frequency



Downloads

ดาวน์โหลด All Document SHURE GLX-D 24/SM58
