Sale

ชุดเครื่องรับ-เครื่องส่งไร้สายแบบพกพา SHURE QLXD14A-M19 Wireless System

ชุดเครื่องรับ-เครื่องส่งไร้สาย SHURE QLXD14A-M19 (694-703 MHz) ในชุดประกอบด้วย เครื่องรับ QLXD4 receiver, เครื่องส่งแบบเหน็บเอ็ว body pack QLXD1 transmitter, และสาย WA305 instrument cable, (ไม่รวมไมโครโฟน) เหมาะสำหรับใช้กับกีตาร์หรือเบส

ราคาไม่รวมภาษีมูลค่าเพิ่ม เป็นราคาชุดละ…..

฿46,800.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Category: Tag:
Share This:

Product Description

Shure QLXD14A-M19 Wireless Guitar System (M19: 694-703 MHz)

ชุดเครื่องรับ-เครื่องส่งไร้สาย SHURE QLXD14A-M19 (694-703 MHz) ในชุดประกอบด้วย เครื่องรับ QLXD4 receiver, เครื่องส่งแบบเหน็บเอ็ว body pack QLXD1 transmitter, และสาย WA305 instrument cable, (ไม่รวมไมโครโฟน) เหมาะสำหรับใช้กับกีตาร์หรือเบส

Shure QLXD14 bodypack wireless system is an excellent solution for wireless vocals and instruments in midsized presentation spaces, music venues, and houses of worship. Featuring pristine 24-bit digital audio and remarkably efficient RF spectrum usage, the QLXD14 wireless system will give you clear, uninterrupted, worry-free performance.

Incredibly easy to set up, the QLXD14 wireless system’s receiver finds open frequencies and deploys them to its transmitter with the push of a button. Compatible with lavalier and headworn microphones, as well as wireless guitar/bass rigs, the Shure QLXD14 bodypack system is a solid, easy-to-use wireless solution.

Features:

  • Over 120dB of dynamic range provide ample headroom
  • Digital predictive switching diversity ensures solid RF connection
  • AES 256-bit encryption for secure transmission
  • One-touch sync function for easy setup
  • LCDs provide easy-to-navigate menus and controls
  • Selectable display mode shows group/channel, frequency, or battery runtime
  • Audio and RF LED meters let you monitor levels and signal strength
  • External charging contacts for docked charging
  • Mac, PC, and iOS-compatible for remote operation
  • Rugged construction provides durability
Category: Tag:

Specifications

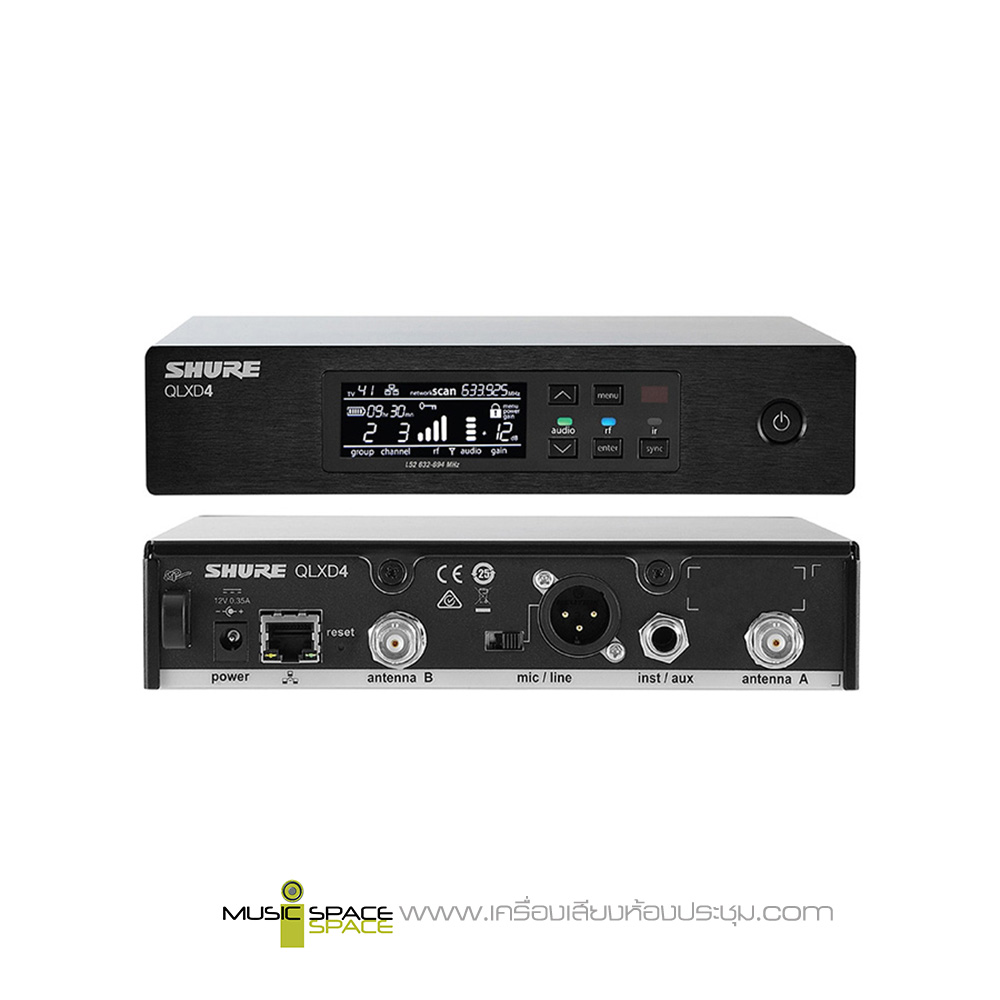

Receiver
Form Factor Tabletop
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/2 Wave External, Detachable (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4″ TRS Female Balanced Output
Gain Range -18 to +42 dB (1 dB Steps)
Pad 30 dB
Audio Output Level XLR Output: +18 dBV (Line Level)
XLR Output: -12 dBV (Mic Level)
1/4″ Output: +12 dBV (Instrument Level)
Phantom Power Protection On 1/4″, XLR Output
Network I/O 1 x RJ45 (10/100 Mb/s)
Network Protocols DHCP, Manual IP
Impedance XLR Output: 100 Ohms (Balanced)
1/4″ Output: 100 Ohms (Balanced)
1/4″ Output: 50 Ohms (Unbalanced)
Approximate RF Sensitivity -97 dBm
Adjacent Channel Isolation >70 dB
Spurious Rejection: >80 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 VDC at 0.4 A, Center-Positive (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 150 mA
Display & Indicators 1 x Backlit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status)
1 x LED (Sync)
1 x LED (Peak)
Housing Metal
Operating Temperature 0 to 122°F / -18 to 50°C
Dimensions 7.8 x 1.6 x 5.9″ / 197 x 41 x 151 mm (without Antennas)
Weight 1.7 lb / 777 g (without Antenna)
Transmitter
Wireless Transmission Digital UHF
Number of RF Channels 1760
Diversity Antenna Diversity
RF Frequency Band M19: 694-703 MHz
RF Bandwidth 44 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 330′ / 100.6 m
Max Systems per Setup 60
Latency <2.9 ms
Modulation Proprietary
Packaging Info
Package Weight 8.015 lb
Box Dimensions (LxWxH) 19.2 x 17.4 x 4.1″

Shure QLXD1 Digital Wireless Bodypack Transmitter

Wireless Transmission Digital UHF
RF Frequency Band M19: 694-703 MHz
RF Bandwidth 44 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 330′ / 100.6 m
Sample Rate/Resolution 48 kHz / 24-Bit
Latency <2.9 ms
Encryption AES 256
Modulation Proprietary
Transmitter
Form Factor Bodypack
RF Output Power 1 / 10 mW
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Audio Input Level 8.5 dBV / 7.5 Vpp
Gain Range 0 to 21 dB (3 dB Steps)
Frequency Response 20 Hz to 20 kHz
Sync Method IR
Antenna 1 x 1/4 Wave Detachable
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Shure SB900A (Not Included, Replaceable)
Approx. Battery Life 9 Hours (Alkaline)
Display & Indicators 1 x Backlit LCD (Channel, Group, RF Output Power)
Housing Aluminum
Dimensions 2.6 x 3.4 x 0.9″ / 65 x 86 x 23 mm
Weight 4.9 oz / 138 g (without Batteries)
Packaging Info
Package Weight 0.9 lb
Box Dimensions (LxWxH) 13 x 5 x 3.5″

Shure WA305 1/4″ Instrument To TA4F Cable For Shure Transmitters (3′)

Interface
Connector 1 1 x 1/4″ TS Male Straight
Connector 2 1 x Lockable TA4 / 4-Pin Mini-XLR Female
Electrical
Connector Plating Gold
General
Cable Length 3′ / 91.44 cm
Packaging Info
Package Weight 0.125 lb
Box Dimensions (LxWxH) 5.75 x 2.7 x 1.05″

Downloads

ดาวน์โหลด Data Sheet QLXD14A-M19
