Product Description
Shure QLXD24/KSM9HS Handheld Wireless Microphone System
ไมค์ไร้สาย, ไมค์ลอยแบบมือถือชนิดไมค์เดี่ยว ประกอบด้วย เครื่องรับสัญญาณไมค์ QLXD4 receiver 1 ตัว, เครื่องส่งสัญญาณ QLXD2 Transmitter with KSM9HS capsule (ไมโครโฟนไร้สาย SHURE 1 ตัว หัวไมค์เป็นรุ่น KSM9HS )
QLXD24/KSM9HS Handheld Wireless Microphone System by Shure is a good choice. It can be used for mid-size events and installations in businesses, hotels, government offices, schools, houses of worship, live performance spaces, and more. It features 24-bit digital audio, network control and AES-256 encryption.
The QLXD wireless system is built with switching diversity and automatic channel scan, and has IR sync capabilities to make finding an open frequency quick. Featuring a frequency range of 20 Hz to 20 kHz, it offers more than 60 available channels per frequency band.

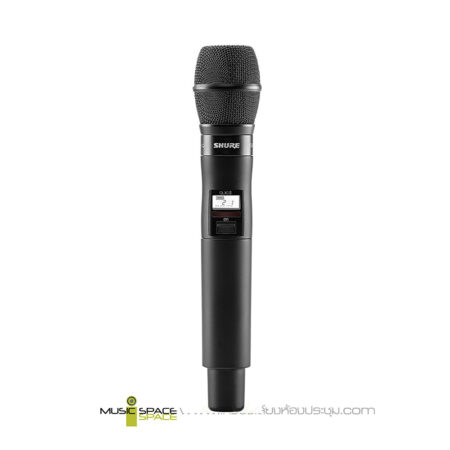

The handheld also has a backlit LCD display to allow for navigation though the menus and controls. With clearly defined performance, the QLX-D delivers good clean audio and provides professional features for demanding live sound events and installations.

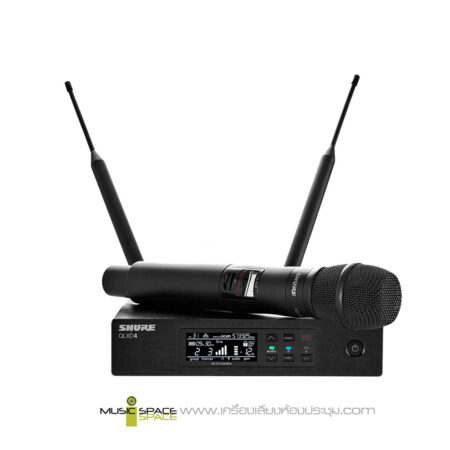

The QLXD24/KSM9HS system includes a QLXD4 receiver, QLXD2 Transmitter with KSM9HS capsule, power supply, two 1/2 wave antennas, 2 BNC cables, 2 BNC bulkhead Adapters, and user guide
Features:
- Interchangeable KSM9HS microphone cartridge
- 120 dB dynamic range
- Digital predictive switching diversity receiver to capture the clearest sound
- 64 MHz tuning bandwidth
- Up to 17 compatible systems per 6 MHz TV band, and 22 systems per 8 MHz band
- Easy pairing of transmitters and receivers over IR scan and sync
- Automatic channel scan
- Selectable display mode showing group/channel, frequency, or battery runtime
- Rugged metal construction
Specifications
SHURE QLXD24A/KSM9HS Wireless System
| RF Carrier Frequency Range |
G50: 470-534 MHz |
| Working Range |
328′ (100 m)
Note: Actual range depends on RF signal absorption, reflection and interference |
| RF |
Tuning Step Size: 25 kHz, varies by region |
| Image Rejection |
Greater than 70 dB, typical |
| RF Sensitivity |
-97 dBm at 10-5 BER |
| Latency |
Less than 2.9 ms |
| Audio Frequency Response |
QLXD1: 20 Hz – 20 kHz (±1 dB)
QLXD2: Dependent on microphone type |
| Audio Dynamic Range |
System Gain @ +10: Greater than 120 dB, A-weighted, typical |
| Total Harmonic Distortion (THD) |
-12 dBFS Input, System Gain @ +10: Less than 0.1% |
| Polarity |
System Audio: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 1/4″ (6.35 mm) output |
| Operating Temperature Range |
0 to 122°F (-18 to 50°C)
Note: Battery characteristics may limit this range |
| Storage Temperature Range |
-20 to 165°F (-29 to 74°C)
Note: Battery characteristics may limit this range. |
| Type |
KSM9HS |
| Frequency Response |
20 Hz to 20 kHz |
| Polar Pattern |
Cardioid |
| Housing |
Steel |
| Power Requirement |
12 VDC @ 0.4 A, supplied by external power supply (tip positive) |
| RF Input |
Spurious Rejection: Greater than 80 dB, typical
Connector Type: BNC
Impedance: 50 ohms |
| Audio Output |
Gain Adjustment Range: -18 to +42 dB in 1 dB steps
Configuration: 1/4″ (6.35 mm), Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
XLR: Balanced (1=ground, 2=audio +, 3=audio -)
Impedance 1/4″ (6.35 mm), 100 ohms (50 ohms Unbalanced)
XLR: 100 ohms
Full Scale Output: 1/4″ (6.35 mm), +12 dBV
XLR: LINE setting= +18 dBV, MIC setting= -12 dBV Mic/Line Switch: 30 dB pad
Phantom Power Protection: 1/4″ (6.35 mm), Yes
XLR: Yes |
| Networking |
Network Interface: Single Port Ethernet 10/100 Mbps
Network Addressing Capability: DHCP or Manual IP address
Maximum Ethernet Cable Length: 328′ (100 m) |
| Dimensions (H x W x D) |
1.63 x 7.75 x 5.94″ (41 x 197 x 151 mm) |
| Weight |
1.71 lb (777 g) |
| Housing |
Machined aluminum |
| Mic Offset Range |
0 to 21 dB (in 3 dB steps) |
| Battery Type |
Shure SB900 rechargeable Li-Ion or AA batteries 1.5 V |
| Battery Runtime |
At 10 mW:
Shure SB900: up to 10 hours
Alkaline: up to 9 hours |
| Audio Input |
Configuration: Unbalanced |
| RF Output |
Antenna Type: Integrated Single Band Helical
Occupied Bandwidth: Less than 200 kHz
Modulation Type: Shure proprietary digital
Power: 1 mW or 10 mW
Note: See Frequency Range and Ouput Power table, varies by region |
| Dimensions (L x Diam) |
10.1 x 2.0″ (256 x 51 mm) |
| Weight |
12.2 oz (347 g) |
