ไมโครโฟนไร้สายแบบหนีบปกเสื้อ SHURE SVX188A/CVL Q12

Product Description

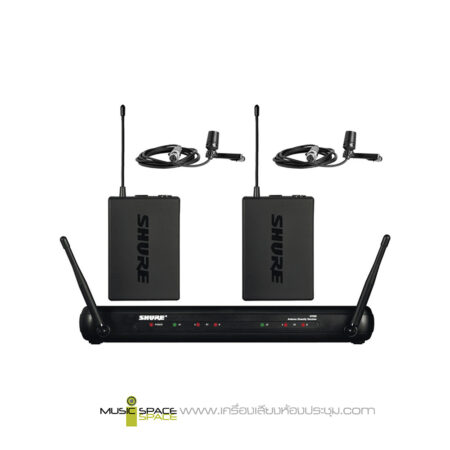

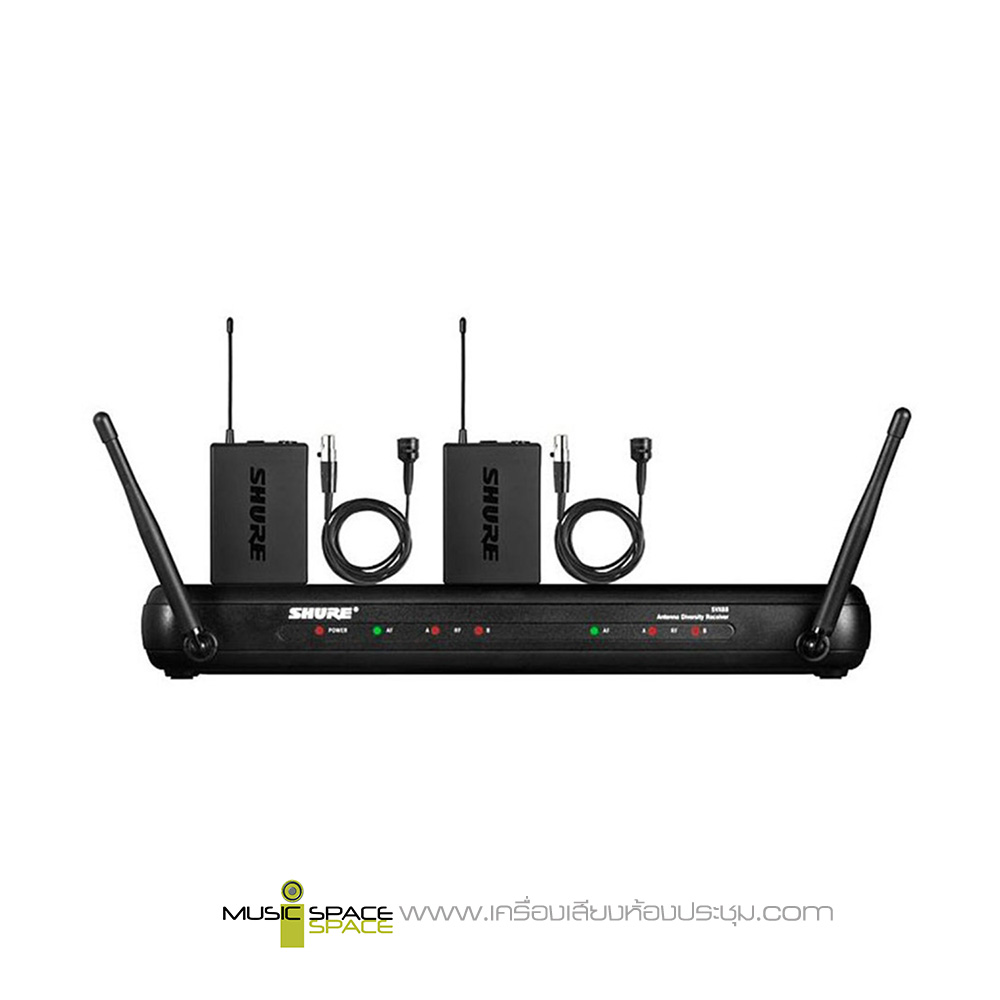

SHURE SVX188A/CVL Q12 (748-758 MHz) Dual Wireless Lavalier System

ชุดไมค์ลอยหนีบปกเสื้อแบบคู่ 2 ตัว ย่าน UHF ความถี่ใหม่ถูกต้องตามข้อกำหนดของ กสทช SHURE SVX188A/CVL-Q12 (748-758 MHz) ภายในชุดประกอบด้วย เครื่องรับ SHURE SVX88 แบบ 2 แชนแนล 1 เครื่อง, เครื่องส่ง SHURE SVX1 แบบ Bodypack 2 เครื่อง, และไมค์ Condenser แบบเหน็บปกเสื้อ SHURE CVL Lavalier Microphone 2 ตัว

The SVX Wireless Systems is the low cost option of Shure wireless system being engineered to maintain uncompromising Shure audio quality and performance. Includes SVX88 Dual Diversity Receiver, Two SVX1 Bodypack Transmitter with Two NEW CVL Centraverse Lavalier Mics.

The Shure SVX1 bodypack transmitter offers a comfortable, easy to conceal solution for wide range of applications. The SVX1 can run for over 10 hours on two AA batteries.

Main Features:

เครื่องรับ SVX88 Dual Channel Diversity Receiver

• Up to 8 selectable channels
• Up to 4 compatible systems*
• Antenna Switching  Diversity
• Adjustable Squelch Level
• 1/4″ and XLR output
• Available with Handheld and Lavalier system packages

เครื่องส่ง SVX1 Bodypack Transmitter

• The SVX1 Bodypack Transmitter can be used with the SVX Lavalier or Headworn Wireless system.

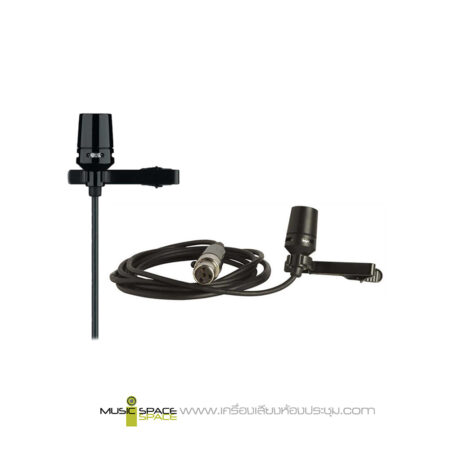

ไมโครโฟน CVL Centraverse Lavalier Condenser Microphone

• Miniature clip-on lavalier microphone for low visibility
• Permanently charged electret condenser element for clear vocal reproduction
• Unidirectional (cardioid) polar pattern rejects unwanted noise for improved sound quality
• Included tie clip allows for hands-free use, perfect for presenters
• Included windscreen reduces plosives, wind and breath sounds
• Tailored frequency response optimized for speaking and presentations
• TA4F (TQG) connector seamlessly integrates with Shure wireless bodypack systems
• Legendary Shure precision engineering for durability and performance

Specifications

SVX188/CVL Specifications

Set Type: Dual Presenter

Amount of Bodypacks: 2

Amount of TQG Mics: 2

SVX88 Specifications

Weight: 245 g

Height x Width x Depth: 32.0 × 168.0 × 104.5 mm

Transmission: Analog

Bias via BNC: No

High Density Mode: No

Interference Detection: No

Remote Control: No

Number of compatible systems per frequency band: Up to 4

DANTE-Enabled Products: No

Detachable Antennas: No

Logic: No

Cascade: No

Receiver type: Dual

Line Mic Switch: No

Image Rejection: 50 dB, typical

RF Sensitivity: -105 dBm, for 12dB SINAD, typical

Phantom Power Protection: No

SVX1 Specifications

Weight: 90 g

Battery life alkaline: 10 h

Form Factor: Bodypack

Audio Mute: No

Detachable Antennas: No

Switchable RF power: No

Bodypack HxWxD without antenna: 108x64x19 g

Frequency Diversity: No

High Density Mode: No

Transmission: Analog

CVL Specifications

Weight: 25 g

Frequency Response: 60 Hz – 12 kHz

Frequency Response: Tailored

Sensitivity: -43.50 dBV/Pa – 6.70 mV/Pa

Equivalent Selfnoise: 22 dB(A)

Sound Pressure: 139 dB

Transducer Type: Condenser

Polar Pattern: Cardioid

Switchable low cut: No

Connectors: TQG (T4AF, 4-Pin Mini)

Attenuator: No

Interchangeable Capsule: No

Main Functionality: Installed

Headphone Output: No

Requires Phantom Power: 5 V DC (nominal), 10 V maximum (DC bias) VDC



Downloads

ดาวน์โหลด All Dcument SHURE SVX SERIES

ดาวน์โหลด SHURE SVX SERIES Brochure
