ชุดไมค์ลอย SHURE ULXD24A/SM58-M19 Wireless System

ไมโครโฟนไร้สายแบบมือถือชนิดไมค์เดี่ยว Shure ULXD24A/SM58 M19 (694-703 MHz) ในชุดประกอบด้วยเครื่องรับสัญญาณไมค์ ULXD4 receiver 1 ตัว, เครื่องส่งสัญญาณ ULXD2 Transmitter with SM58 capsule (ไมโครโฟนไร้สาย SHURE 1 ตัว หัวไมค์เป็นรุ่น SM58)

Fix Install Product ราคาสินค้าไม่รวม Vat…..



฿103,000.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Category: Tag:
Share This:

Product Description

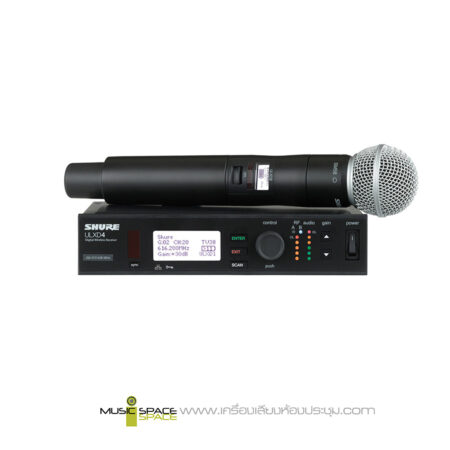

SHURE ULXD24A/SM58-M19 Digital Wireless System (M19: 694-703 MHz)

ไมโครโฟนไร้สายแบบมือถือชนิดไมค์เดี่ยว Shure ULXD24A/SM58 M19 (694-703 MHz) ในชุดประกอบด้วยเครื่องรับสัญญาณไมค์ ULXD4 receiver 1 ตัว, เครื่องส่งสัญญาณ ULXD2 Transmitter with SM58 capsule (ไมโครโฟนไร้สาย SHURE 1 ตัว หัวไมค์เป็นรุ่น SM58)

Shure ULXD24/SM58 digital wireless handheld microphone system bundle comes with everything you need get great-sounding vocals and total wireless freedom, including a ULXD4 digital wireless receiver and a ULXD2 handheld transmitter with a SM 58A dynamic microphone capsule.

Studio-grade 24-bit/48kHz digital resolution perfectly captures and re-creates every nuance of your performance, and a complete set of sophisticated yet simple functions make performing with your Shure ULXD24/SM 58 digital wireless handheld microphone system a blast.

Features:

  • Reliable SM58 capsule, a performer’s favorite
  • Rugged metal construction
  • 20Hz-20kHz frequency response
  • Interchangeable Shure microphone cartridges
  • Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any source
  • Frequency and power lockout
Category: Tag:

Specifications

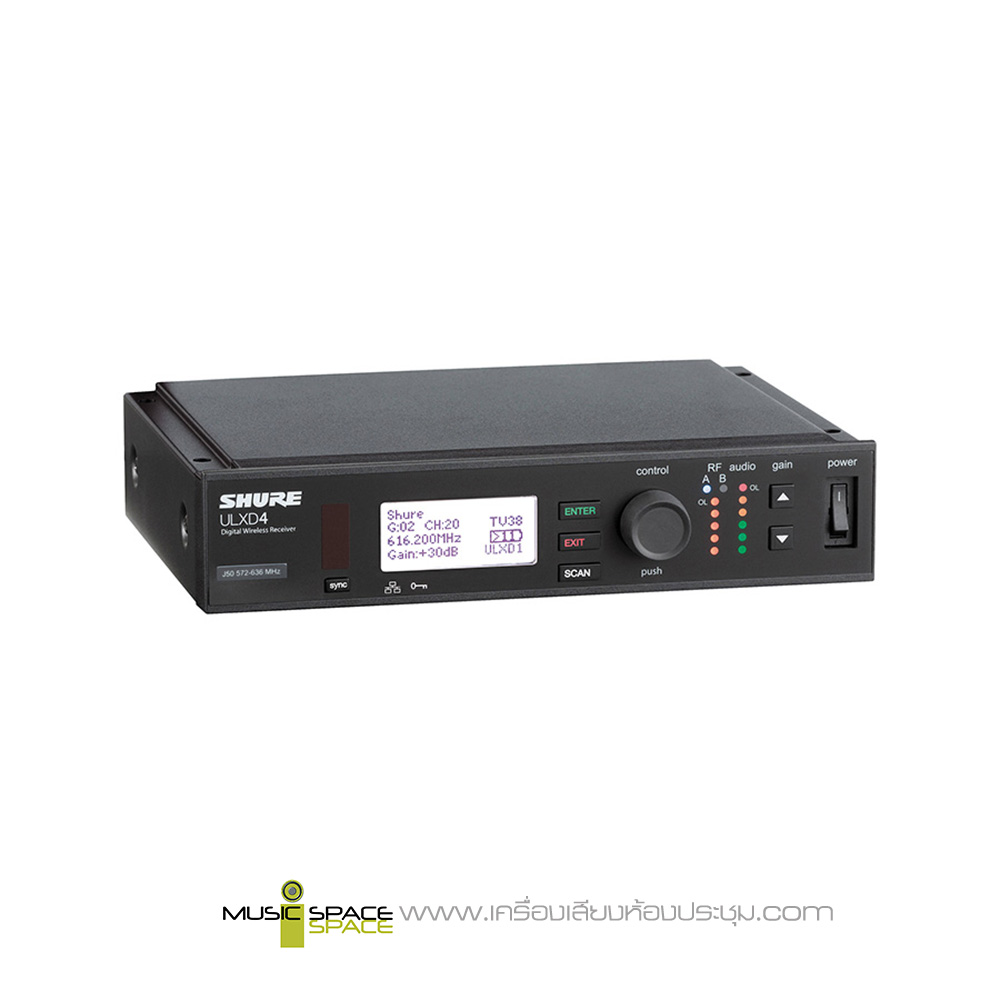

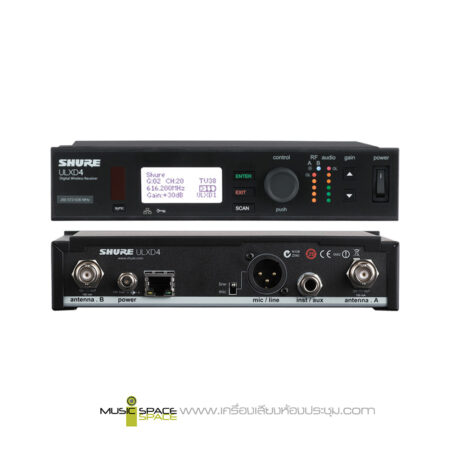

Shure ULXD4

Wireless Transmission Digital UHF
Number of RF Channels 2560
Diversity Antenna Diversity
RF Frequency Band M19: 694-703 MHz
RF Bandwidth 64 MHz
Frequency Step Size 25 kHz
Max Operating Range 328.1′ / 100 m
Max Systems per Setup 60
Latency <2.9 ms
Modulation Proprietary
Receiver
Form Factor Tabletop
Mounting Options Rackmount, Tabletop (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/2 Wave External, BNC (Rear-Mount)
Antenna Bias Voltage 12 to 13 VDC, 150 mA (per Antenna)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4″ TRS Female Balanced Output
Gain Range -18 to +42 dB (1 dB Steps)
Pad 30 dB
Audio Output Level XLR Output: +18 dBV (Line Level)
XLR Output: -12 dBV (Mic Level)
1/4″ Output: +12 dBV (Consumer Level, Instrument Level)
Phantom Power Protection On 1/4″, XLR Outputs
Frequency Response 30 Hz to 20 kHz ±1 dB (Dependent on Mic)
Network I/O 1 x RJ45 (10/100 Mb/s)
Network Protocols DHCP, Manual IP
Impedance XLR Output: 100 Ohms (Balanced)
Approximate RF Sensitivity -98 dBm
Adjacent Channel Isolation >70 dB
Spurious Rejection: >80 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 15 VDC at 600 mA (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 250 mA
Display & Indicators 1 x Backlit LCD (Battery Status, Channel, Group, Menu Navigation)
2 x Multi-Segment LED (AF Level, Output Level, Peak)
Housing Steel
Operating Temperature 0 to 122°F / -17 to 50°C
Storage Temperature -20 to 165°F / -28 to 73°C
Dimensions 6.7 x 1.7 x 7.8″ / 171 x 44 x 197 mm
Weight 2 lb / 0.9 kg
Packaging Info
Package Weight 6.5 lb
Box Dimensions (LxWxH) 18.347 x 14.567 x 3.622″

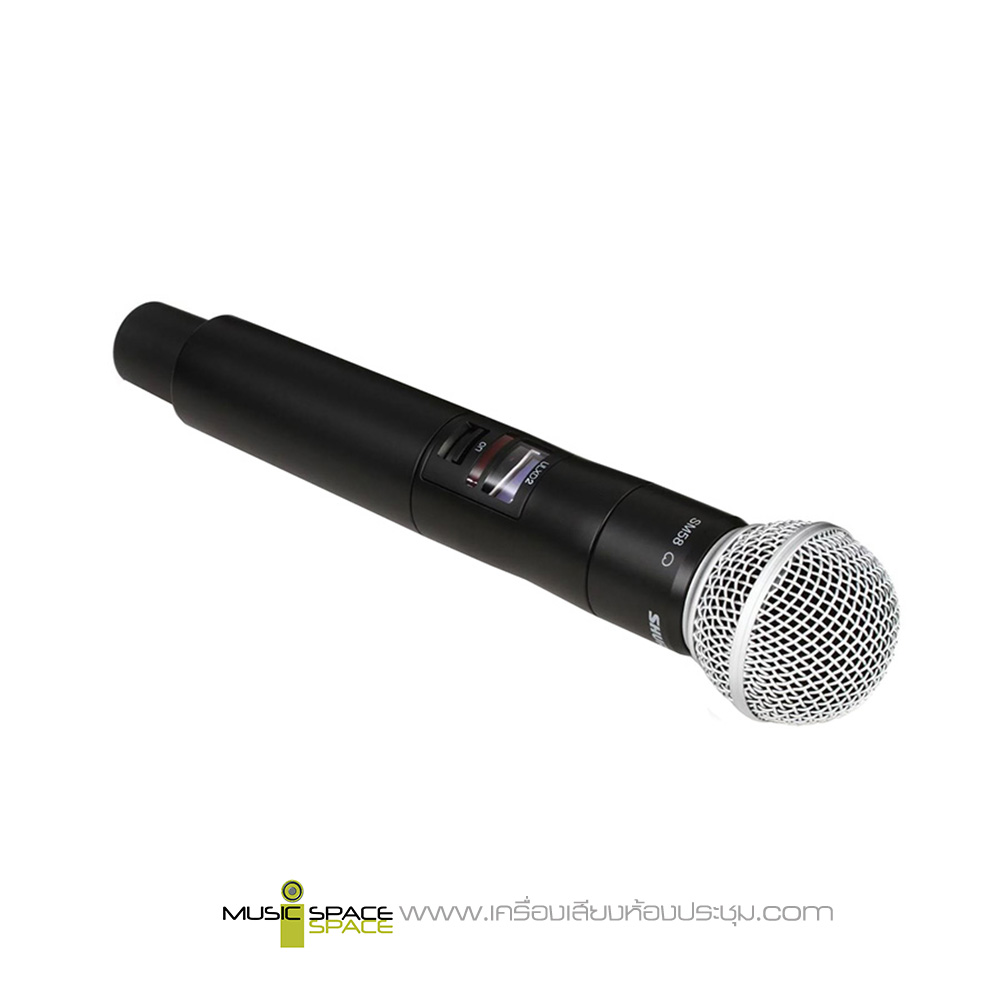

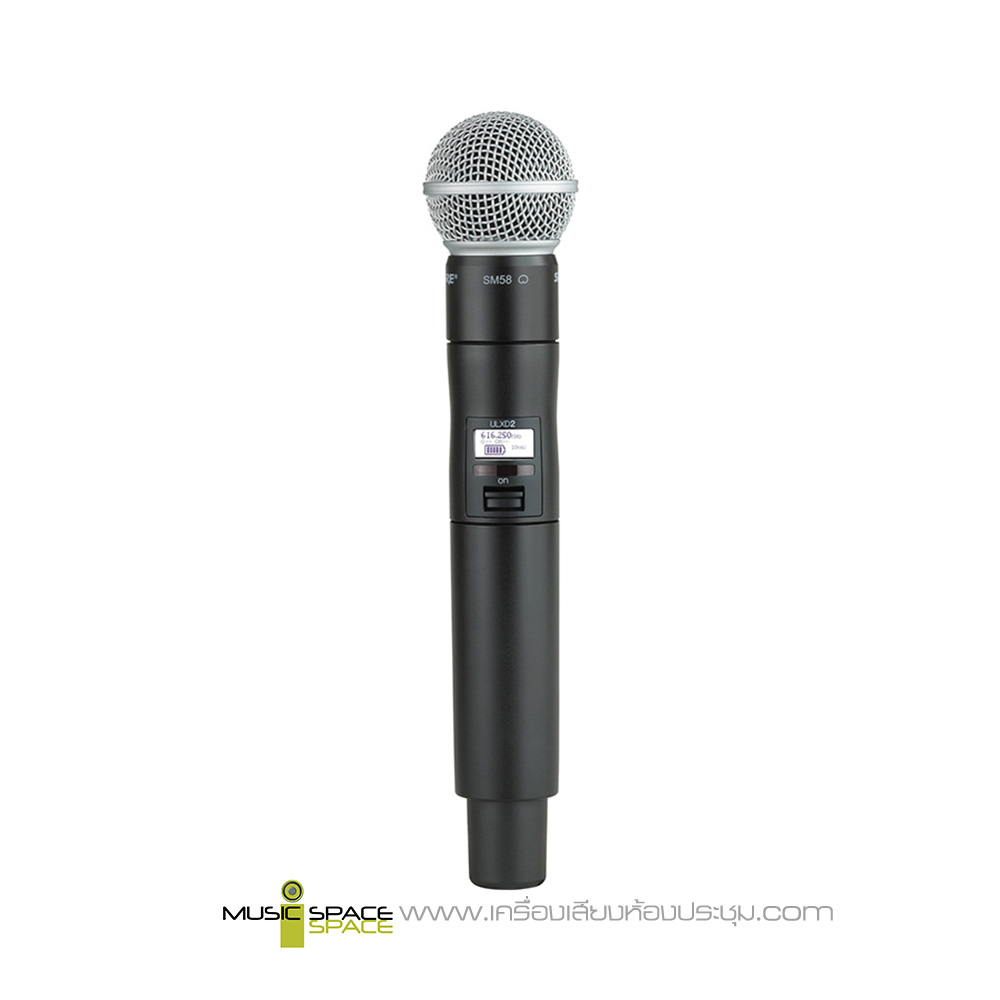

Shure ULXD2/SM58

Wireless Transmission Digital UHF
RF Frequency Band M19: 694-703 MHz
RF Bandwidth 64 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 328.1′ / 100 m
Sample Rate/Resolution 48 kHz / 24-Bit
Latency <2.9 ms
Encryption AES 256
Modulation Proprietary
Transmitter
Form Factor Handheld
RF Output Power 1 / 10 / 20 mW (Switchable)
Audio I/O None
Muting Off/On Switch
Gain Range 0 to 21 dB (3 dB Steps)
Sync Method IR
Antenna 1 x Internal Single-Band Helical
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Shure SB900A (Not Included, Replaceable)
Approx. Battery Life Med.: 11 Hours (Alkaline)
Med.: 12 Hours (Lithium Shure SB900A)
Display & Indicators 1 x Backlit LCD (Channel, Group, Mute, RF Output Power, Sync)
Housing Aluminum
Operating Temperature 0 to 122°F / -17 to 50°C
Storage Temperature -20 to 165°F / -28 to 73°C
Dimensions 10.1 x 2″ / 256 x 51 mm
Weight 12 oz / 340 g
Microphone
Form Factor Handheld Capsule
Sound Field Mono
Capsule Dynamic
Polar Pattern Cardioid
Frequency Range 50 Hz to 15 kHz
Sensitivity -56 dBV/Pa
Packaging Info
Package Weight 1.55 lb
Box Dimensions (LxWxH) 12.7 x 5 x 3.45″

Downloads

ดาวน์โหลด Data Sheet ULX-D24A/SM58-M19
