ลำโพง TOA HX-7B-WP Variable Dispersion Speaker – Weather Proof

ตู้ลำโพงไลน์อาเรย์ TOA HX-7B-WP เป็นลำโพง Line Array สำเร็จรูปขนาดเล็กแบบ 2 ทาง กันน้ำ 4 cell configuration, each incorporating dual 5″ low-frequency drivers

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿61,880.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Category: Tag:
Share This:

Product Description

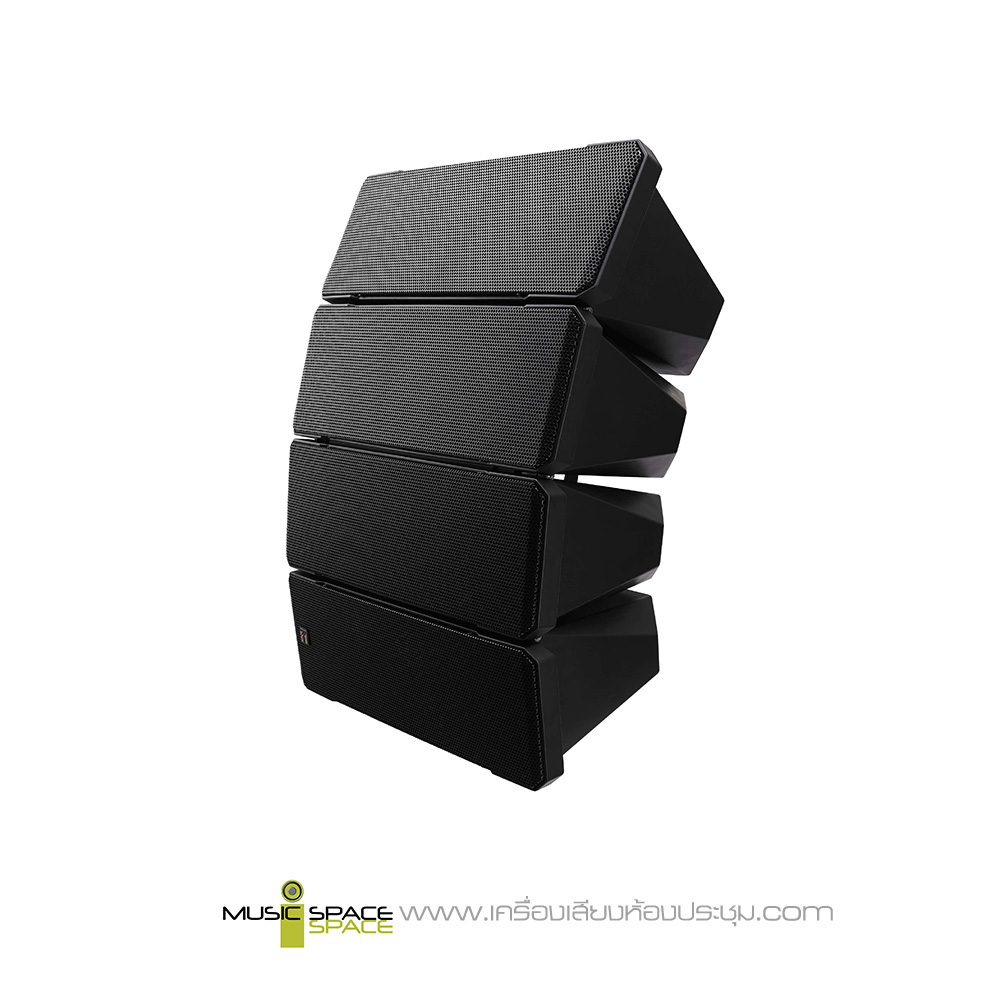

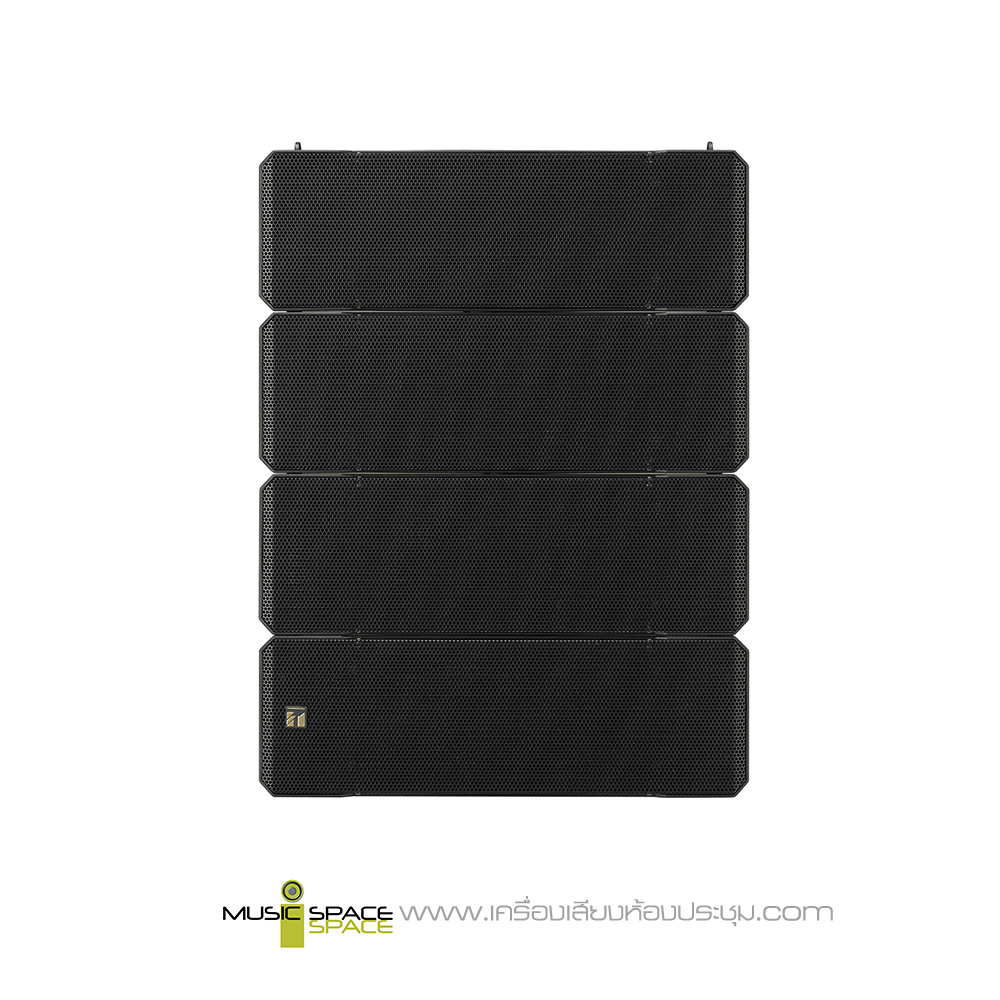

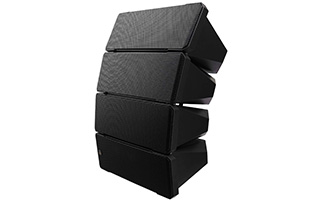

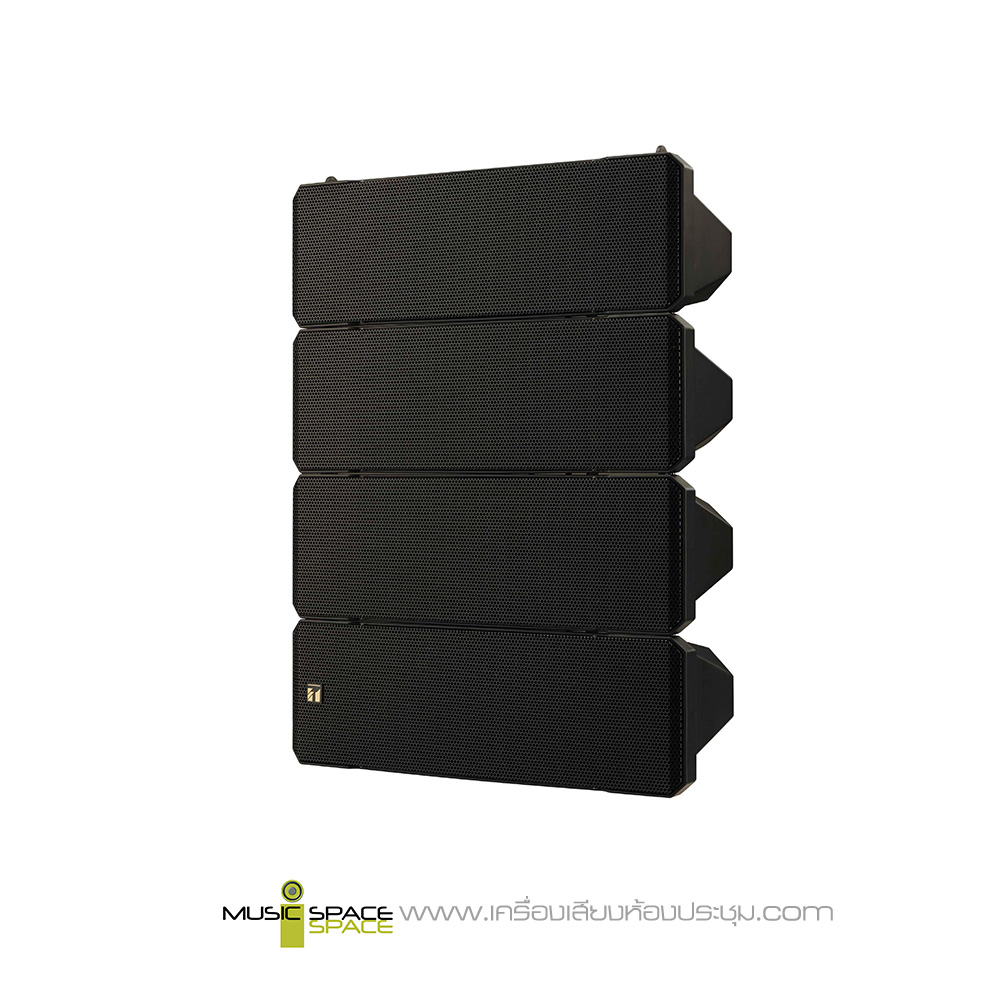

TOA HX-7B-WP Variable Dispersion Speaker – Weather Proof 750W

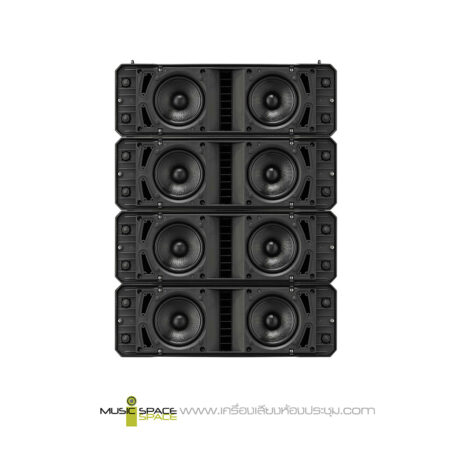

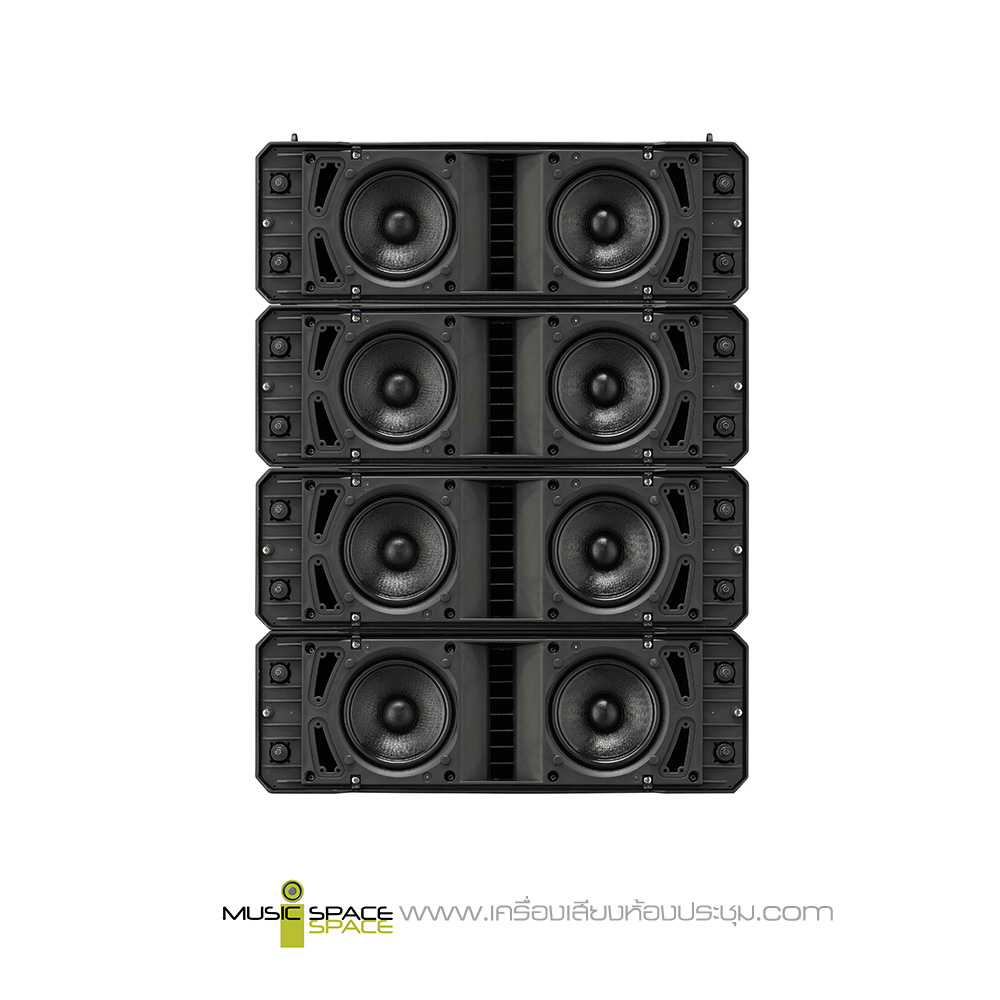

ตู้ลำโพงไลน์อาเรย์ TOA HX-7B-WP เป็นลำโพง Line Array สำเร็จรูปขนาดเล็กแบบ 2 ทาง กันน้ำ 4 cell configuration, each incorporating dual 5″ low-frequency drivers and 1 center-mounted, waveguide-loaded 1″ exit compression driver

The HX-7B-WP is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in vertical directivity.

Its adopted wave front control technology is ideal for reproducing clear sound in spaces with long reverberation times or high background noise.

The speaker is designed to be installed under the eaves when used outdoors.

Features:

  • High power handling

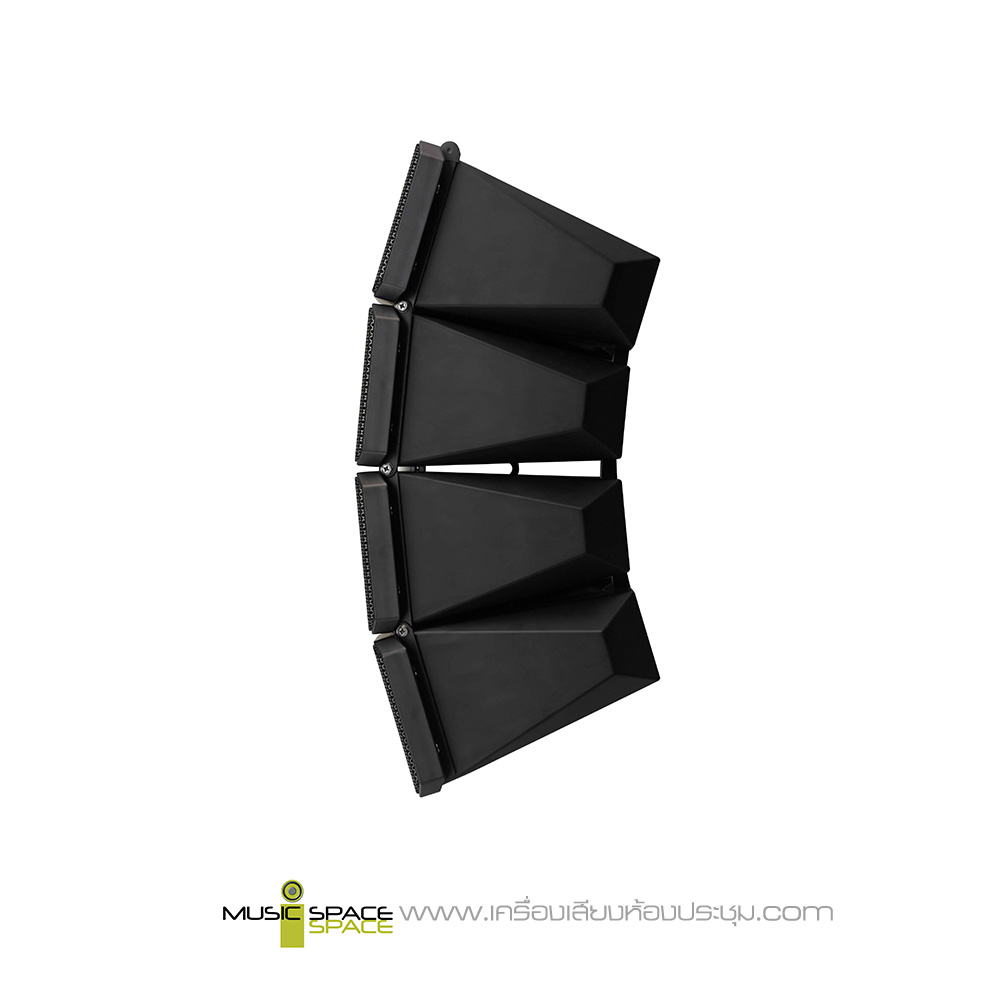

  • Speaker design consists of four integrated modules that can be adjusted individually to optimize the vertical dispersion angle
  • Built-in isophasic wavefront control horn with compression driver ensures precise HF control and superior reproduction of HF sounds
  • 0° mode facilitates the most effective line array set-up
  • Easily adjustable vertical dispersion angle
Category: Tag:

Specifications

Enclosure Sealed type
Power Handling Capacity Continuous pink noise: 250 W (IEC60268-5: 350 W), Continuous program: 750 W
Rated Impedance 8 Ω
Sensitivity (1 W, 1 m) 100 dB (1 W, 1 m)
Frequency Response 105 Hz – 20 kHz
Crossover Frequency 1.7 kHz
Directivity Angle Horizontal: 100゜
Vertical:Depending on directivity angle mode
Speaker Component Low frequency: 13 cm (5.5″) cone-type × 8
High frequency: Wave front control horn with compression driver x 4
Input Terminal M4 screw terminal, distance between barriers: 9 mm (0.35″)
Finish Enclosure: Polypropylene, black
Punched net: Surface-treated steel plate, black, rust proof coating
Dimensions 497 (W) × 664 (H) × 274 (D) mm (19.57″ x 26.14″ x 10.79″)
Weight 30 kg (66.14 lbs)
Accessory Terminal cover x 1, Terminal cover mounting screw x 4, Rubber packing x 1
Option Matching transformer: MT-200 (*1)
Matching transformer adapter: HY-MT7
Speaker mounting bracket: HY-TM7B-WP, HY-MS7B-WP, HY-60DB-WP HY-CN7B-WP

Downloads

ดาวน์โหลด Data Sheet TOA HX-7B-WP
