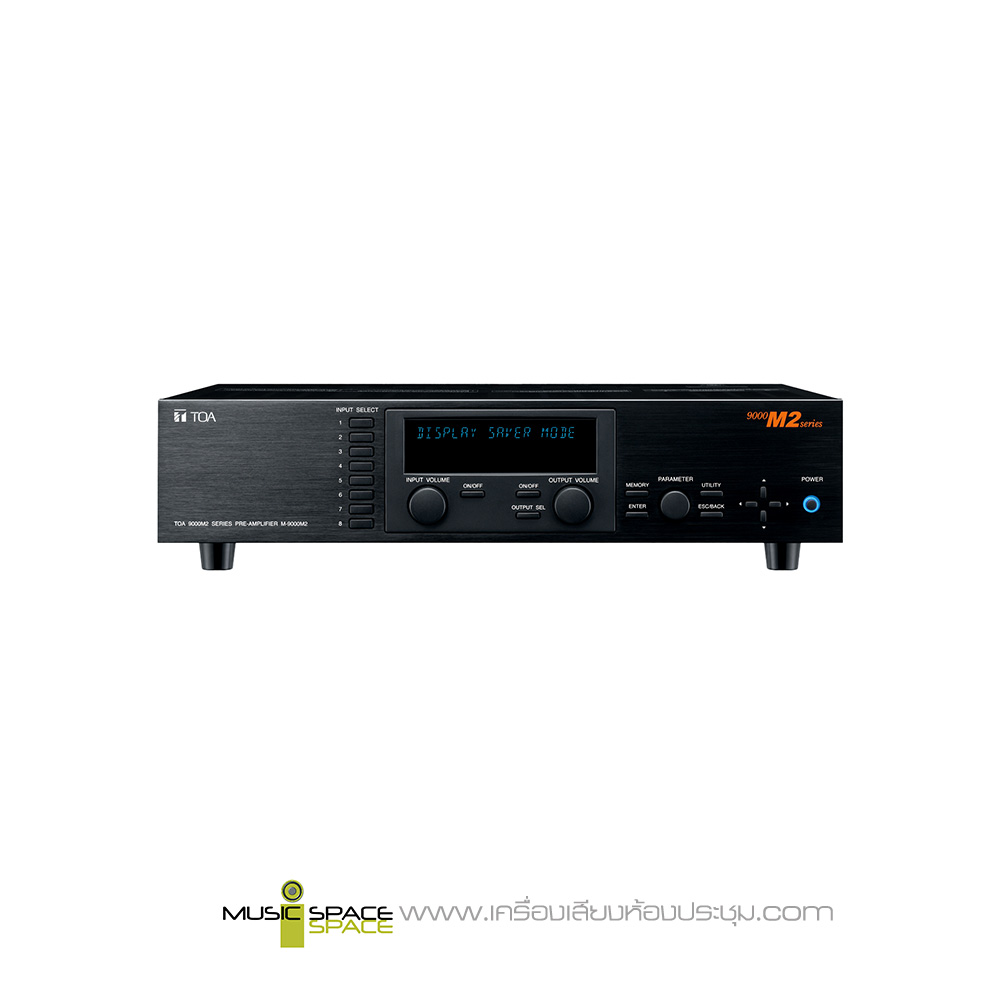

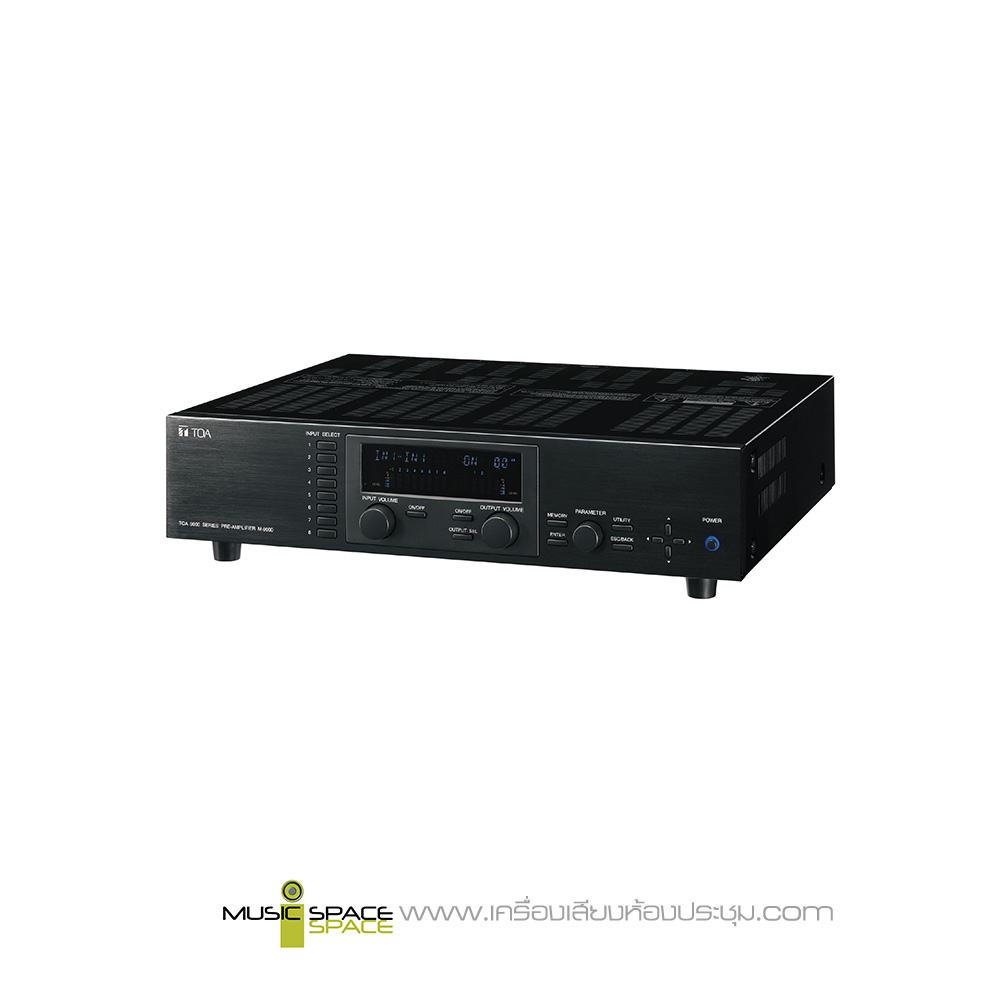

| Power Source |
120 V AC, 60 Hz |
| Power Consumption |
40 W |
| Audio Input |
Max. 8 channels, modular construction (modules optional) |
| Audio Output |
Preamplifier output 1, 2: 0 dB(*1), 600 Ω, balanced,
removable terminal block (3 pins) |

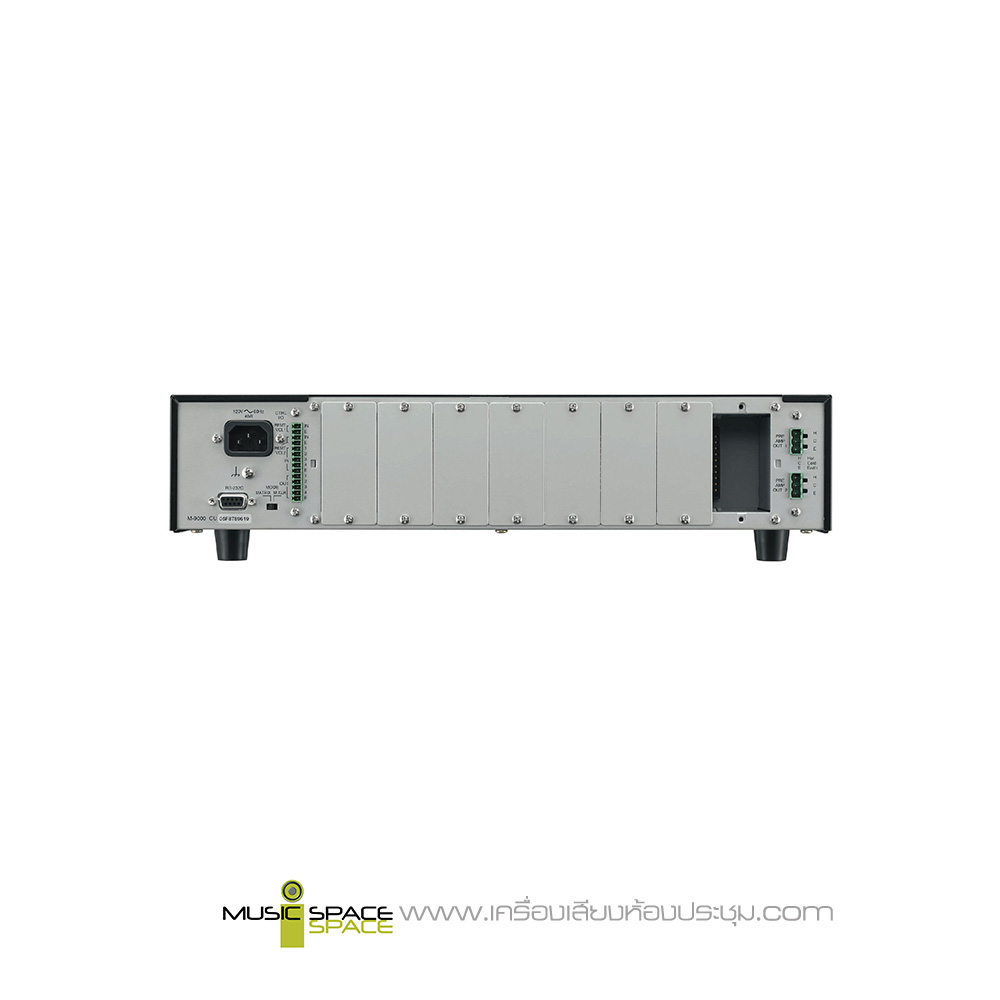

| Module Slot |
Analog input (slot 1 – 8): -10 dB(*1), 10 kΩ, unbalanced
Digital input (slot 1 – 4): 24 bit/48 kHz
MIX output (slot 1 – 8): -14 dB(*1), 330 Ω (CH 1 prefader output), unbalanced
Digital output (slot 5 – 7): 24 bit/48 kHz
Power supply (slot 1 – 8): +24 V, -24 V, +6 V DC |
| Digital Audio Signal Reference Level |
-20 dBFS |
| Frequency Response |
20 Hz – 20 kHz, +1, -3 dB |
| Total Harmonic Distortion |
0.008 % (at 22 kHz LPF, 1 kHz, +10 dB(*1) output) |
| S/N Ratio |
At Input short, 20 Hz – 20 kHz, set to ALL FLAT or OFF setting
Output volume min.: 90 dB
Output volume max.: 61 dB (Input 1 volume: 0 dB, Other Inputs: OFF) |
| Cross Talk |
64 dB or more (at 20 kHz) |
| Tone Control |
Bass: ±12 dB (at 100 Hz)
Treble: %%p12 dB (at 10 kHz) |
| Parametric Equalizer |
10 bands, Frequency: 20 Hz – 20 kHz, 31 points, Variable range: ±12 dB, Q: 0.3 – 5 |
| Speaker Equalizer |
10 (setup software has 30 TOA speaker presets) |
| High-pass Filter |
-12 dB/oct, Variable frequency range: 20 Hz – 20 kHz, 31 points |
| Low-pass Filter |
-12 dB/oct, Variable frequency range: 20 Hz – 20 kHz, 31 points |
| Compressor |
Depth: 1 – 5 |
| Delay |
0 – 40 ms (1 ms steps), maximum 40 ms (CH 1 + CH 2), mixer mode only |
| Scene/Event Memory |
32 |
| Auxiliary Function |
Key lock function |
| Control Input/Output |
RS-232C(*2), D-sub connector (9 P, female)
Control input: 4 inputs, no-voltage make contact input, open voltage: 3.3 V DC,
short-circuit current: 1 mA or less, removable terminal block (14 pins)
Control output: 4 outputs, open collector output, withstand voltage: 27 V DC,
control current: 50 mA, removable terminal block (14 pins)
Remote volume: 2 channels, connect a 10 kΩ/linear taper variable resistor or
input the DC voltage of 0 to +10 V, removable terminal block (14 pins) |
| Operating Temperature |
-10 ℃ to +40 ℃ (14 ゜F to 104 ゜F) |
| Operating Humidity |
35 % to 80 %RH (no condensation) |
| Finish |
Panel: Aluminum, hair-line, black
Case: Surface-treated steel plate, black, paint |
| Dimensions |
420 (W) × 107.6 (H) × 353 (D) mm (16.54″ × 4.24″ × 13.9″) |
| Weight |
6 kg (13.23 lb) |
| Accessory |
Power cord (2 m (6.56 ft)) …1, Rack mounting bracket …2, Bracket mounting screw …4,
Blank panel …7, Blank panel mounting screw …14,
Removable terminal plug (3 pins) …2, Removable terminal plug (14 pins) …1, CD …1 |
