Product Description

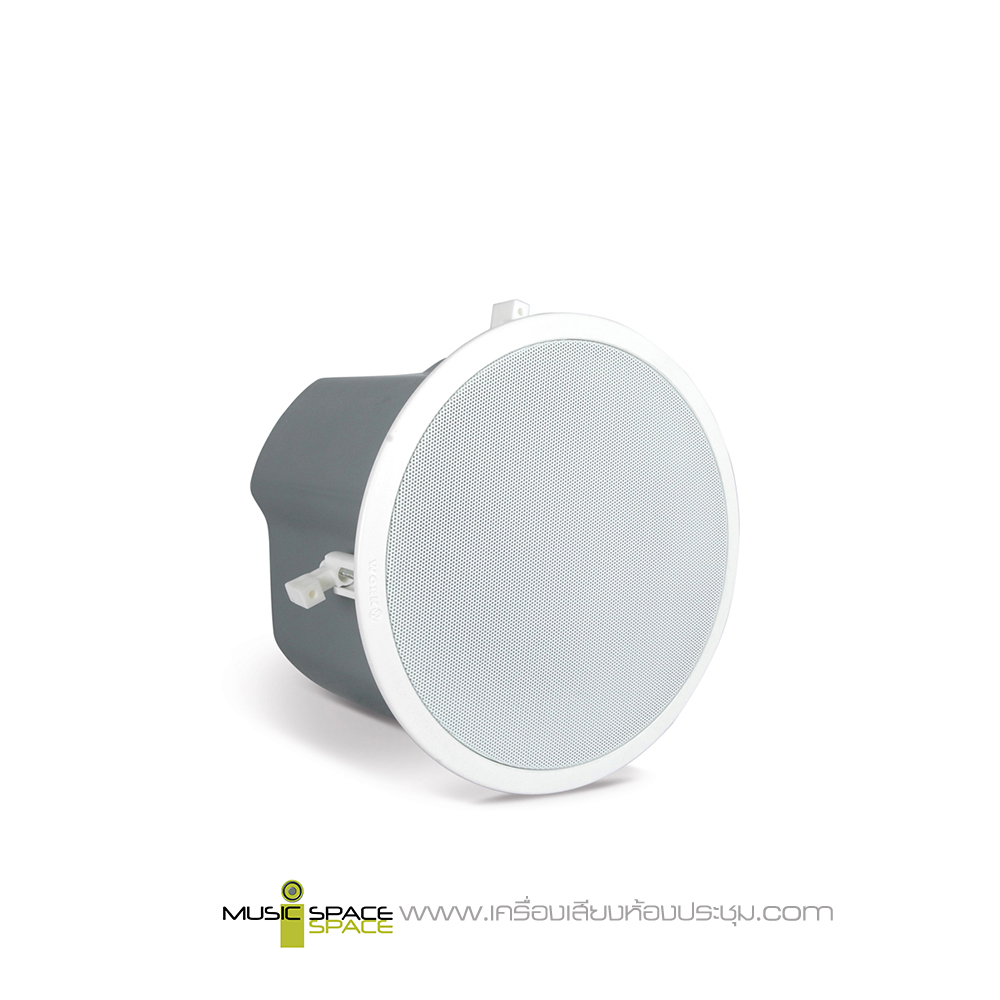

WORK IC6 Pro-A Self-powered loudspeaker 6.5″
ลำโพงชนิดติดฝ้าเพดานแบบมีกำลังขยายในตัว WORK IC6 Pro A 2 ทาง ขนาดดอกลำโพง 6.5 นิ้ว 40 วัตต์ 8 โอหม์ 70/100 V Line, ตอบสนองความถี่ 60 Hz – 20 kHz, Controlled through RS485/DMX or Analog signal (DC 0-10 V) for volume control
IC 6 Pro A is an innovative ceiling speaker that includes a 25 W amplifier and which is controlled by DMX. IC 6 Pro A can cover many zones (512 zones per universe). This is a convenient solution for integrators in order to control each speaker independently from the others, using a DMX console.
Taking advantage of digital control…

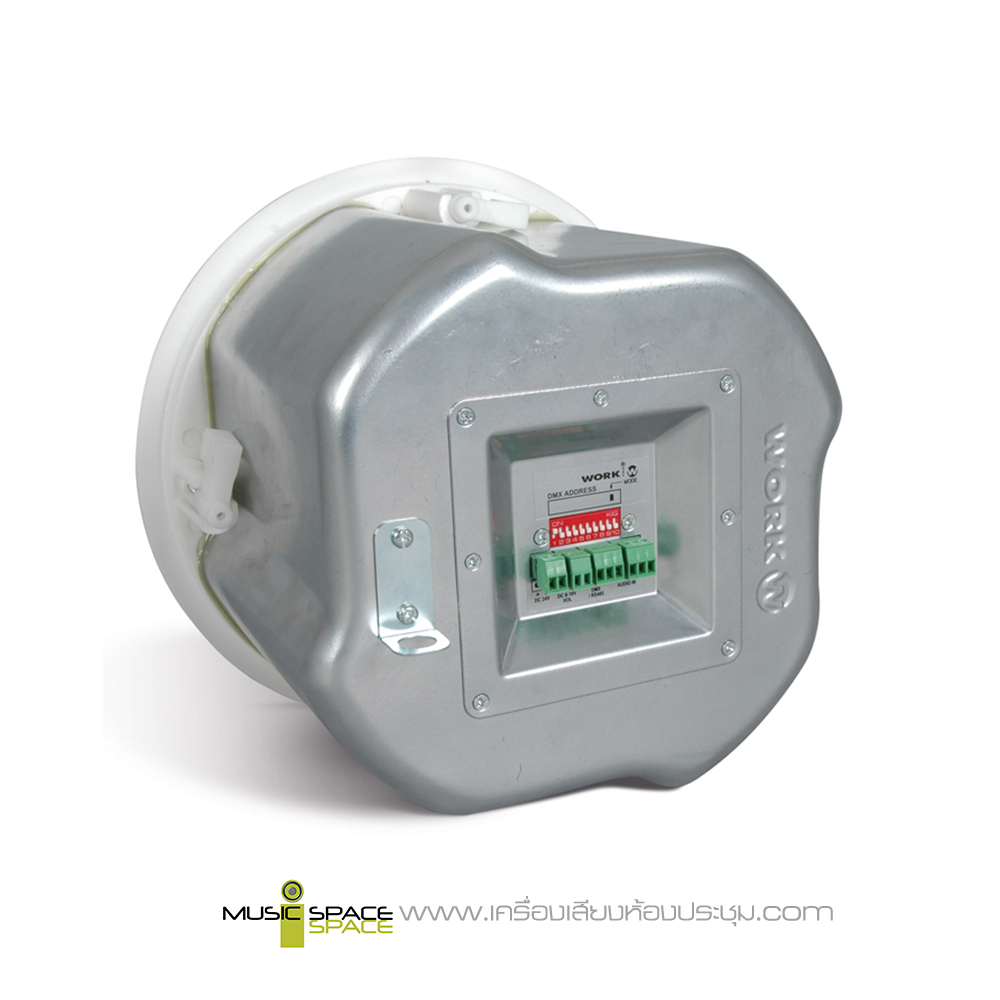

DMX is a protocol that has been initially designed for lighting consoles, but it is also well-known by integrators because it is compatible with the most common control devices (Creston, AMX, etc.). Each IC 6 Pro A uses a DMX channel for volume control and to switch on/off the amplifier (Standby mode for energy savings). A DIP switch is available on rear panel to select the start DMX address.
IC 6 Pro A drives up to 25 W (8 Ω) thanks to its built-in class D amplifier. It also features a balanced input to use long distance cables in the installation.
Features:
- Self-powered, two way ceiling speaker.
- 25 W class D amplifier.
- Controlled through RS485/DMX or Analog signal (DC 0-10 V) for volume control.
- Power On/Off (standby) through DMX.
- Balanced input signal.
- DIP switch for DMX address selection.
- White LED on front panel to indicate if the unit is turned on.
