Product Description

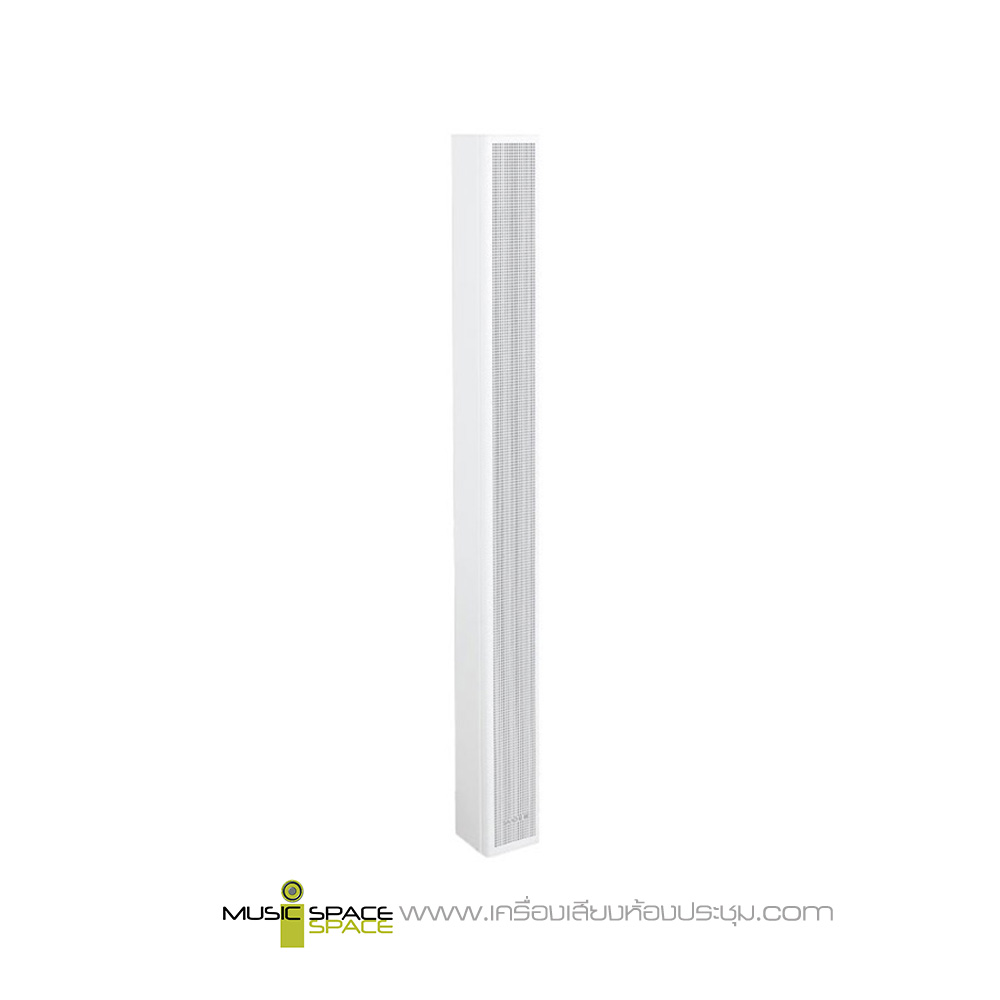

WORK UDA 16 White Inatallation Speaker 16 x 2.75″
ตู้ลำโพงคอลัมน์สีขาว WORK UDA 16 เป็นตู้ลำโพงที่ประกอบด้วยดอกลำโพงขนาด 2.75 นิ้ว จำนวน 16 ดอกเรียงกันเป็นแนวตั้ง ทนกำลังขับ 400 วัตต์ Program 20° Vertical, 140° Horizontal Coverage, Suited for reverberant environments, IP 65, เหมาะสำหรับงานห้องประชุม

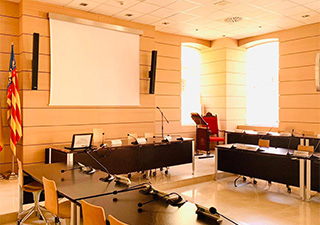

The UDA 16 is a high output, full range, frequency shaded passive column speaker which provides voice intelligibility and musical clarity in acoustically challenging environments such as shopping malls, houses of worship, restaurants, congress halls, hotels, airports, train stations, swimming pools, conference rooms or museums, where reflective surfaces create a reverberant sound field.
The UDA 16 features sixteen 2.75″ diameter transducers, 0.75″ voice coil, in a closed box enclosure. A proprietary IST (Interdependent Shading Topology) network has been designed to keep constant the ratio wavelength-column size, which results in a controlled 20° vertical coverage in the vocal range.
This makes the UDA series suitable to be installed in rooms with problematic sound reflections where vocal intelligibility is paramount.
The narrow extruded aluminium enclosure has been designed for a seamless visual integration in every venue and is available in black or white finish.

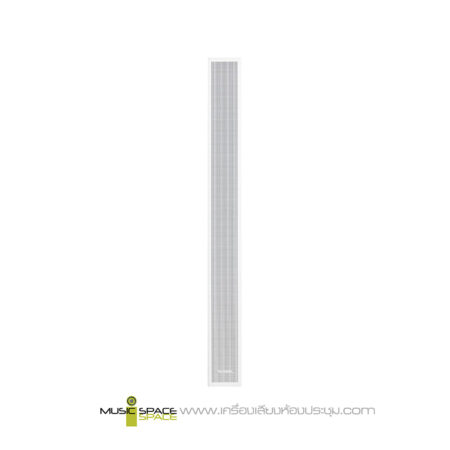

The grille is also made of aluminium and internally covered with a protective water repellent fabric which prevents splashed water and dust from damaging the transducers, featuring thereby an IP 65 protection rating.
A wall mounting accessory is included allowing the column to be aimed up to +/- 90° sideways and from 0° to 10° downwards or upwards in two degrees steps.

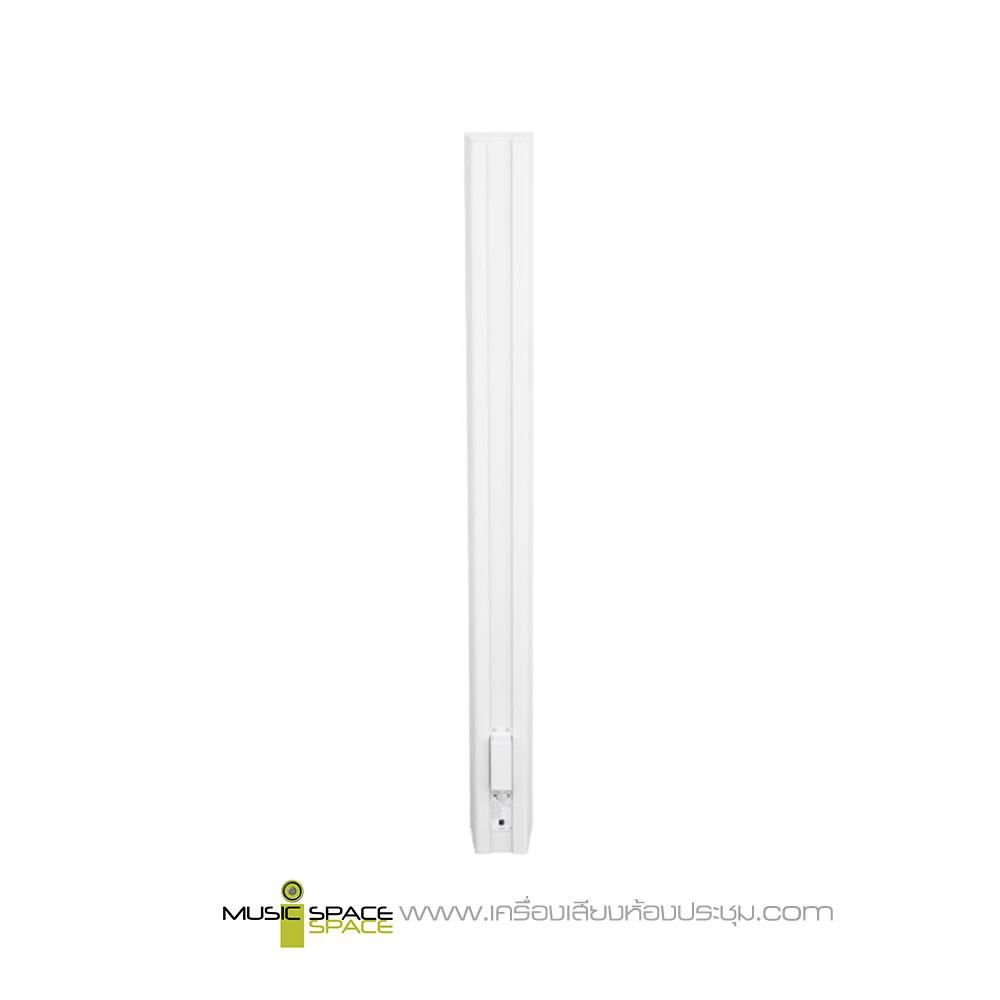

Each unit can be connected to either the input terminal strip or an NL4 Speakon. Connections are protected by a metallic weather resistant cover featuring a cable gland on the bottom which prevents water or moisture from causing a shortcircuit.
The accessory UDA 16 TL (not included) allows for high impedance connection of the UDA 16. It houses a high quality 120Wrms@100V line transformer (60Wrms@70V) that makes it suitable for installations where long cables have to be deployed.
Tuning presets are available to enhance the frequency balance and intelligibility.
Features:
- Passive column speaker.
- Suited for reverberant environments.
- 20° Vertical, 140° Horizontal Coverage.
- 400W Program.
- Stylish and visually discreet design.
- Extruded aluminium enclosure.
- Low and High impedance available.
- Available in black or white finish.
